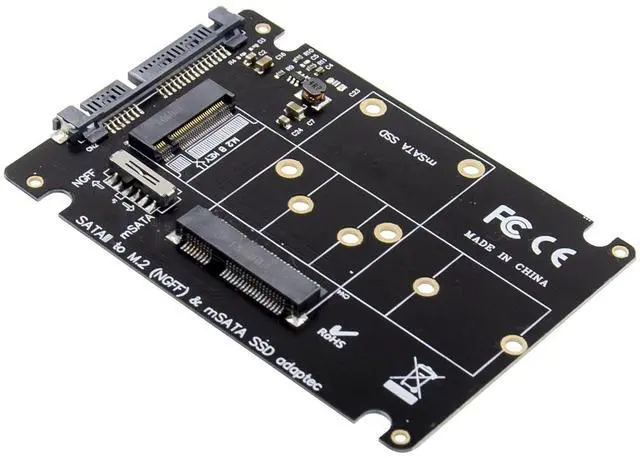

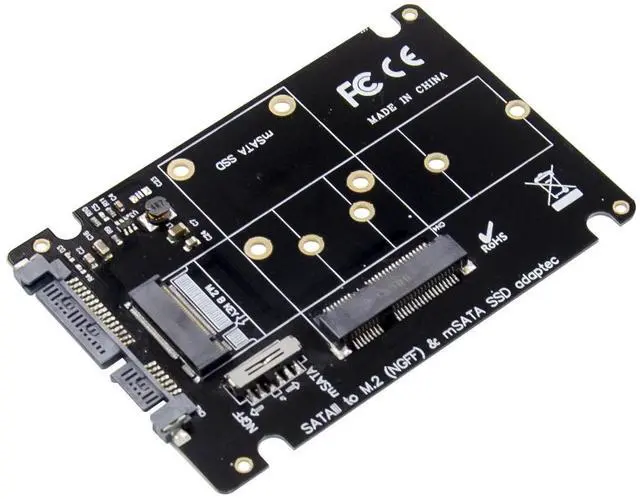

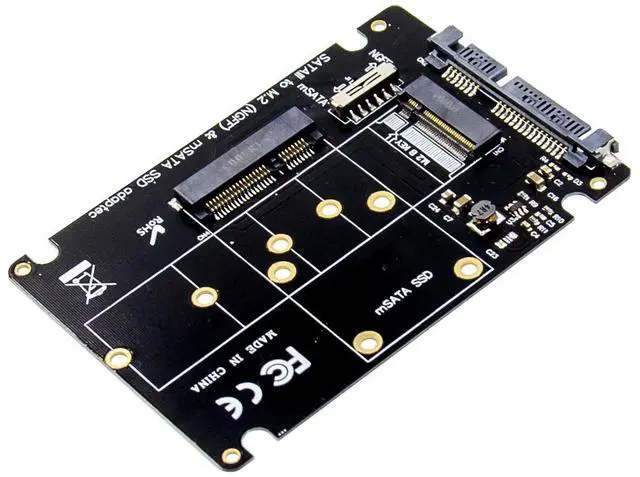

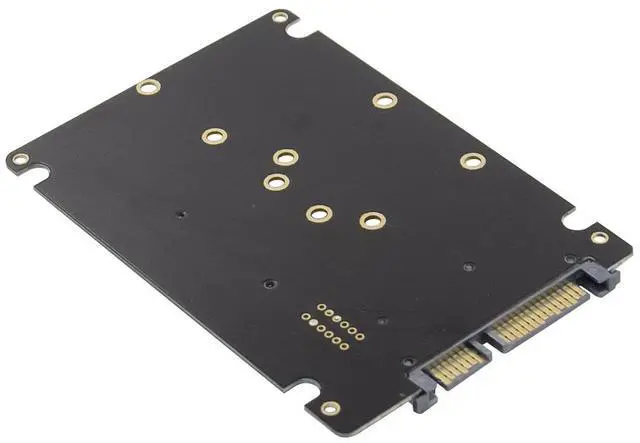

JVFYI 2.5-inch SATA III to M.2 B & mSATA SSD Adapter

Compliant with Serial ATA Specification Revision v3.0

Backwards compatible with SATAII and SATAI

Supports M.2 SSD sizes:2230,2242,2260,2280

Supports mSATA SSD sizes:26.8x30,50.95x30mm

Supports M.2 B key and B+M key with SATA Protocol

52-pin mini PCIe interface

M.2 Specification Revision 0.9

Support ATA/ATAP-7 Specification

Industrial operating temperature range:-40~85°C

Support operating system: MS Windows ,MAC OS, Linux operating systems

No driver is required because the driver is transparent to the operating system

Package content

1 x 2.5inch SATA to M.2 or mSATA Adapter

1 x Users Manual

3 x Screws

1 x Screw driver

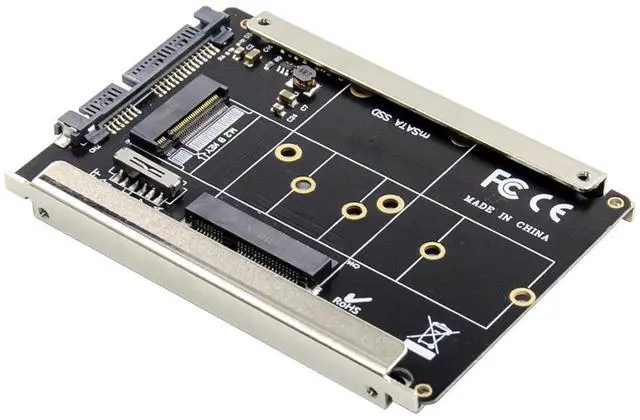

2 x Low-profile brackets

1 x Heat sink

Mechanical Drawing (Reference)

Standard 2.5" SATA housing dimension compliant

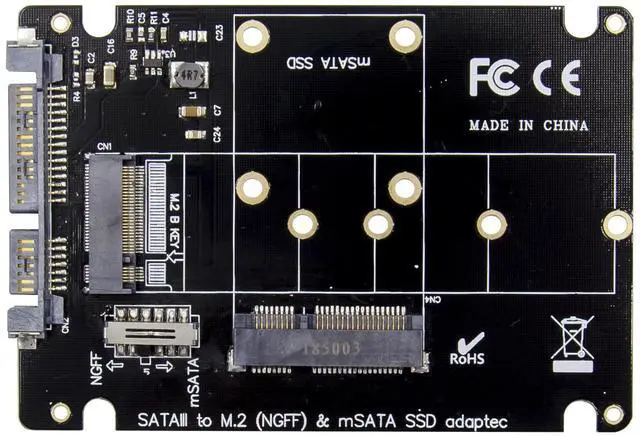

Mounting holes for M.2 2280 and mSATA modules

Gold-finger connectors with anti-oxidation surface finish

Application

Convert mSATA / M.2 B-Key SATA SSD to standard 2.5" SATA storage

Ideal for upgrading older systems that lack M.2 or mSATA slots

Compatible with servers, NAS systems, desktops, and laptops

Important Notes

Only supports SATA-based M.2 SSDs (B-Key or B+M-Key).

Does NOT support NVMe (PCIe) SSDs.

Either mSATA or M.2 SSD can be used at one time, not both simultaneously.

Ensure correct SSD insertion direction to prevent connector damage.
