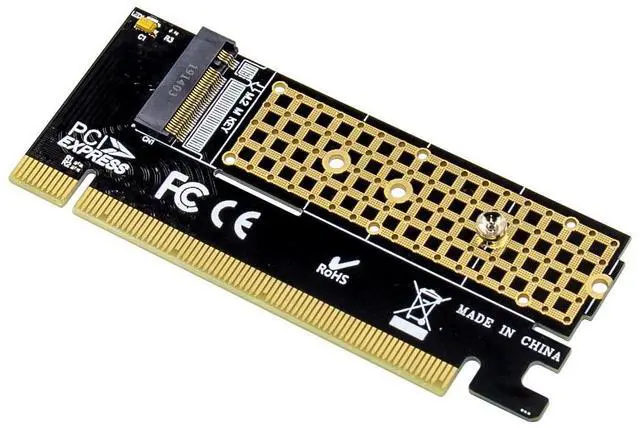

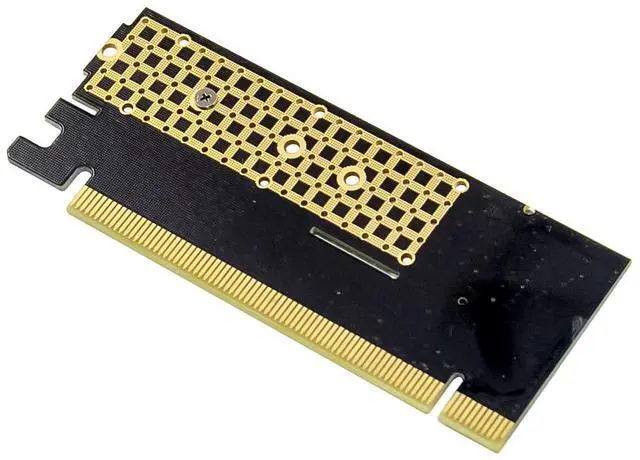

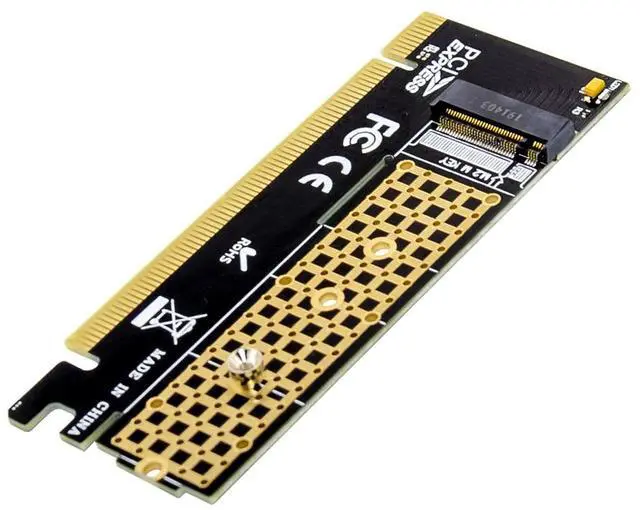

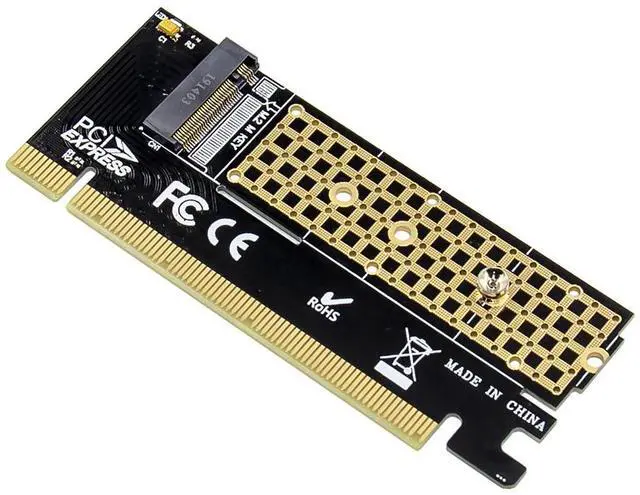

JVFYI PCIe x16 M.2 NVMe SSD Adapter
Limited time offer, ends 01/12 By BRIGHTOR
- This PCIe x16 M.2 NVMe SSD Adapter is connects directly to the motherboard, It has support with ultra-fast PCI Express V3.0 X4 lanes transmit bandwidth up to 32GT/S, and it can be support with most of the M.2 key M SSD drive size. By this adapter can be improved system speed ,and improve the efficiency of office and entertainment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Support PCIe v3.0 x4 NVMe key M m.2 SSD including 2230,2242,2260,and 2280 drives
Backwards compatible with PCIE V2.0 and V1.0 mainboards
Drive sizes are 80,60,42 and 30mm
Support Any M Key M.2 SSD and B+M Key M.2 SSD
M. Key interface can insert SSD of M.2 NVMe PCIe protocol.
Not compatible with B Key M.2 PCI x2 SSD or B Key M.2 SATA SSD
Compliant with PCI Express specification Revision v3.0
The M.2 PCIe SSD gets its power supply form the motherboard PCIe BUS slot 3.3v
Industrial operating temperature range:-40~85°C
Support operating system:Windows10,Windows 8,Windows8.1, Windows Server 2012 R2,Linux, Fedora, SUSE, Ubuntu, Red hat native drivers support PCIe NVMe
No driver is required because the driver is transparent to the operating system
Package content
1 x PCIe x16 M.2 NVMe SSD Adapter
1 x Users Manual
Accessories
System Requirements
Windows10,Windows 8,Windows8.1, Windows Server 2012 R2,Linux 32bit or 64 bit
One available PCI-Express x4/x8/x16 slot
Hardware installation
Please first installed the M.2 M Key SSD into the NVMe adapter, then follow these steps:
1.Turn Off the power to your computer.
2. Unplug the power cord and remove your computers cover.
3. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.
4. Replace the slot brackets holding screw to secure the card.
5. Replace the computer cover and reconnect the power cord.
More information and settings please refer to the User Guides or you can contact us.
