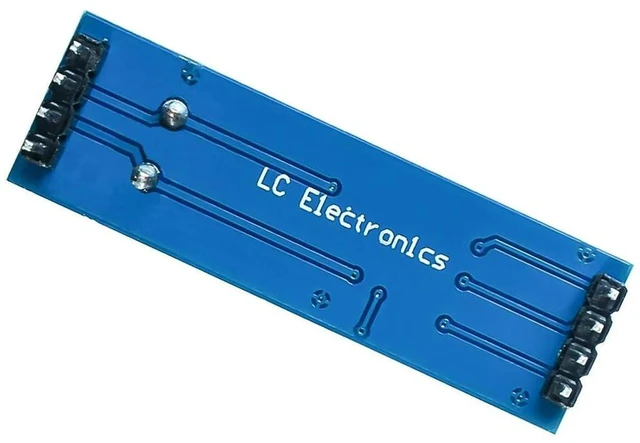

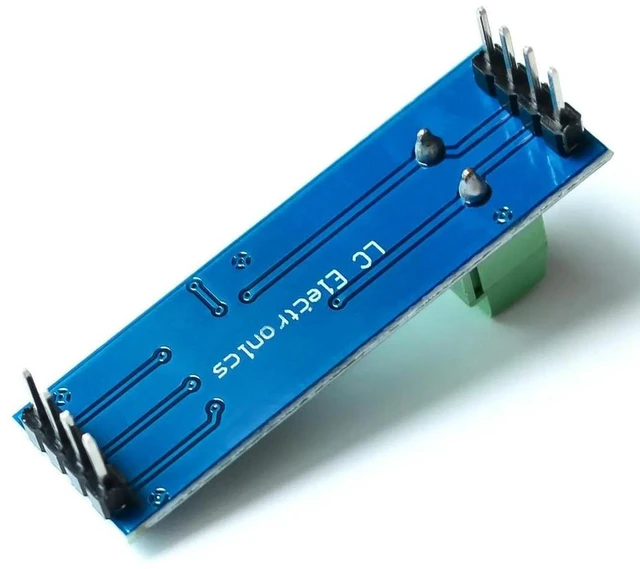

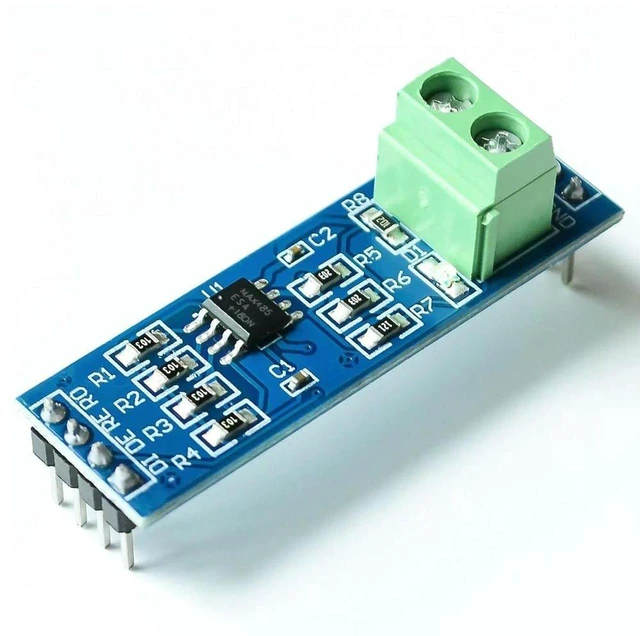

AJMRTC MAX485 Module, TTL to RS485 Serial Communication Converter Board, RS-485 Transceiver Module, MCU Development Accessories for Microcontroller Long Distance Data Transmission Projects
- - TTL to RS485 bidirectional signal conversion, realizes long-distance stable serial communication for microcontroller systems
- - Onboard MAX485 transceiver chip, low power consumption, supports half-duplex differential data transmission
- - 5V working voltage, terminal block design for easy wiring; supports multi-drop bus connection up to 32 nodes
- - Compact PCB layout, all control pins led out, convenient for Arduino, STM32 and other MCU development
- - Strong anti-interference differential signal, ideal for industrial control, sensor data acquisition & electronic experiments
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC MAX485 module is a TTL to RS485 serial transceiver converter board, widely used as accessory for MCU development. It converts TTL UART signal into differential RS-485 signal, greatly extending communication distance and improving anti-noise performance in complex electromagnetic environment. Powered by 5V DC, the module adopts half-duplex communication mode. The reserved DE/RE control pins allow users to switch transmit and receive status via microcontroller. Equipped with 2P terminal block for simple and reliable A/B bus wiring. Multiple modules can be mounted on one RS485 bus for multi-point data collection. This small converter board fits perfectly for Arduino, STM32 and other single-chip projects, industrial data transmission, smart sensor networking and student electronic DIY experiments.
- Brand: AJMRTC
- Product: MAX485 TTL to RS485 Converter Module
- Chip: MAX485
- Working Voltage: DC 5V
- Communication Type: Half-duplex, TTL RS485
- Max Nodes on Bus: 32 units
- Application: MCU development, industrial control, sensor communication, electronic experiment
- Interface: TTL pin header + RS485 A/B terminal block
