WRIARICH USB3.1 Gen2 Internal 20-pin Front Panel Connector Expansion Card 10 Gbit/s USB 2.0 PCI Express 3.0 X2 Adapter for Desktop PCs (ASM3142)

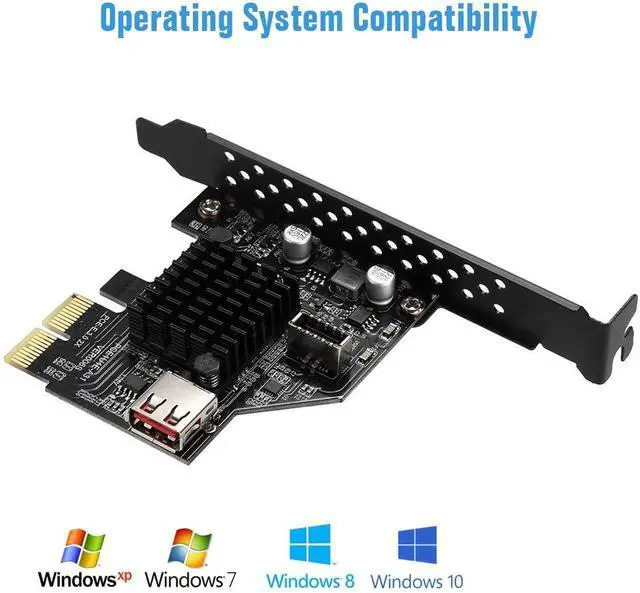

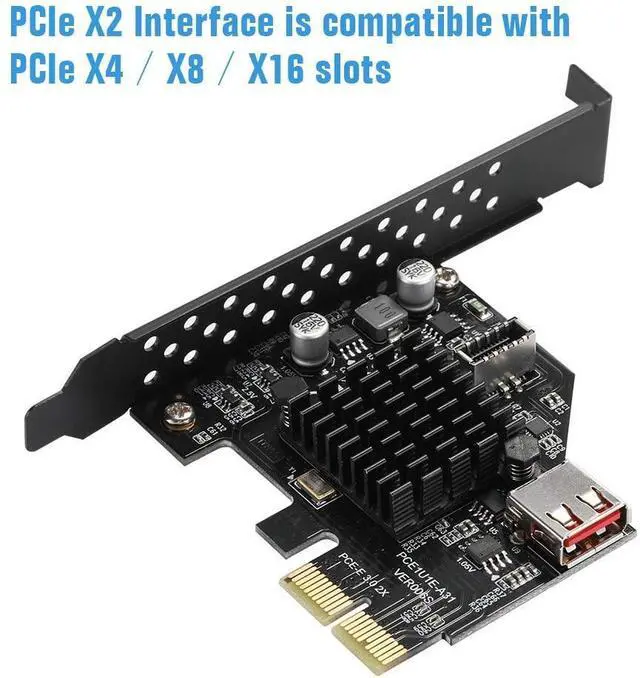

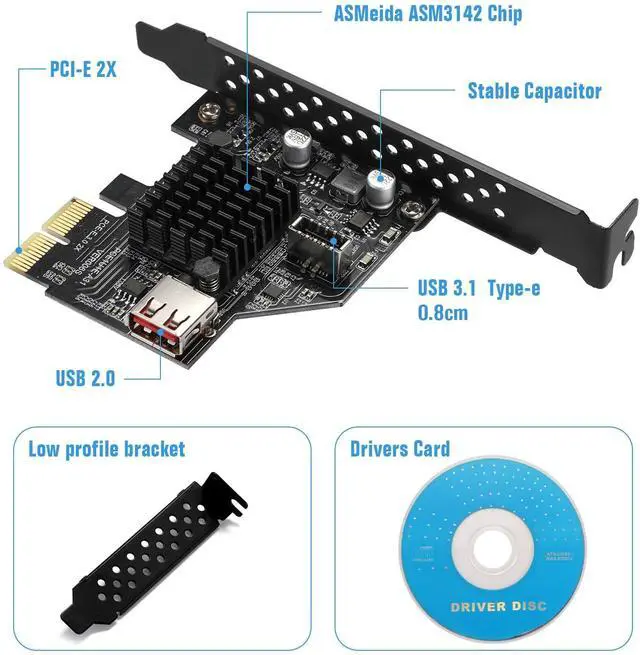

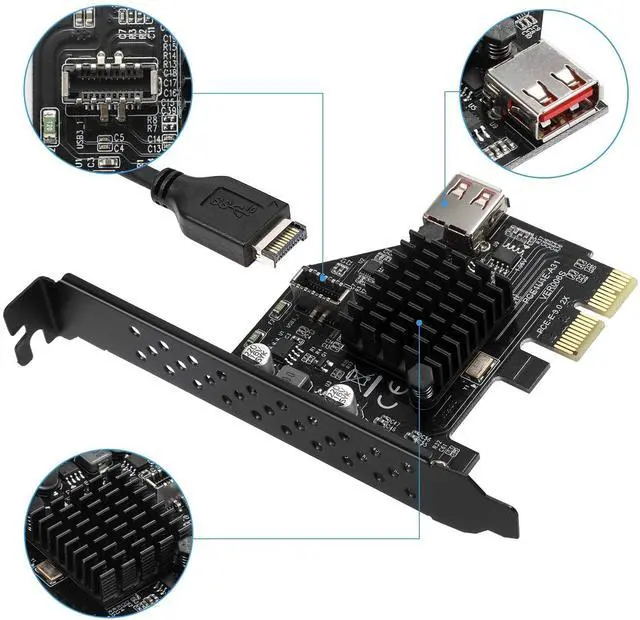

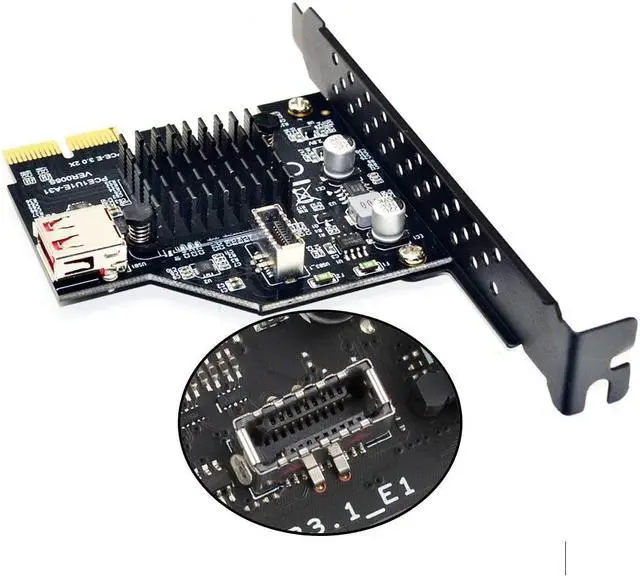

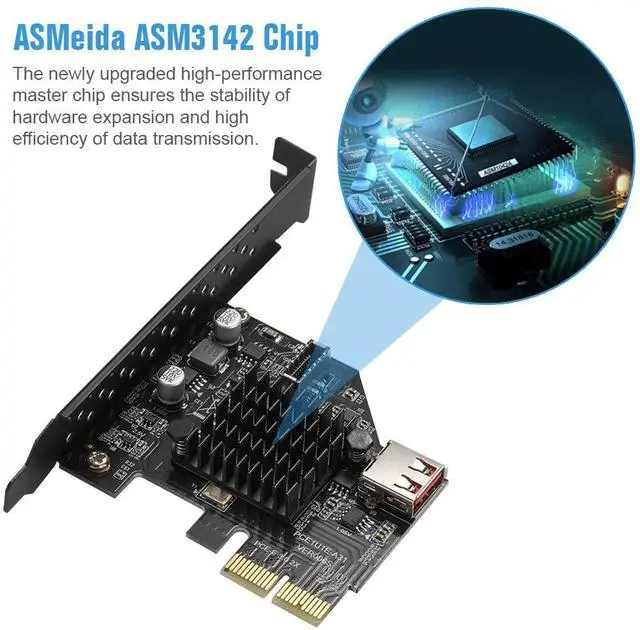

USB3.1 Gen2 Type-E 20-pin Expansion Card This product can integrate the computer's high-speed PCI-E data transfer interface into one Convert USB3.1 front-end high-speed data transfer interface (TYPE-E 10 Gbit/s) and an integrated USB2.0 connection. Allows PC owners to take advantage of new high-end PC cases that feature an external USB 3.1/3.2 Type-C port. Features Applicable interfaces: PCI-E 2X, PCI-E 4X, PCI-E 8X, PCI-E 16X Slot Transfer speeds of up to 10 Gbit/s. Uses the PCIE x2 connector to attach to a wide variety of motherboards Easy to Install It is necessary for the connector to be placed on the back of the card. If the connector is placed on the top side, it will interfere with the fan of the graphics card. Use our USB3.1 Type-C Panel Cable Mount Motherboard Header Extension Adapter for best expansion Specification: Product name :USB3.1 Front TYPE-E Expansion Card Product interface:TYPE-E 20PIN PCI-E 4X 8X 16X Product Chip:ASMedia ASM3142. Support system:WINXP WIN7 WIN8 WIN10. (Note: This adapter card does not support Oculus.) Transfer rate up to 10 Gbit / s Note: The front TYPE-C interface, also called TYPE-E interface, has 2 USB3.1 signals. USB3.1 is very fast, but ordinary hard drives just can't keep up that fast. Therefore, you need to use SSD with USB3.1 expansion card or simple drive cable together to get such high speed. Package contents: 1 x USB 3.1 front TYPE-E expansion card. 1 x driver CD. 1 x low profile bracket.
