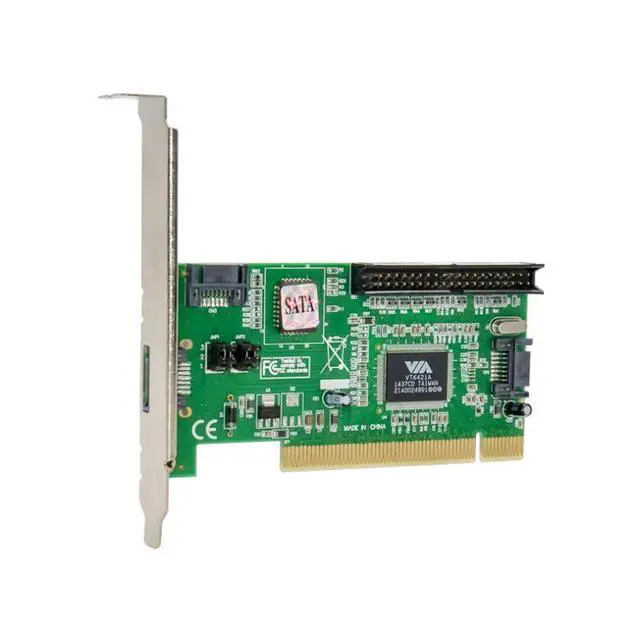

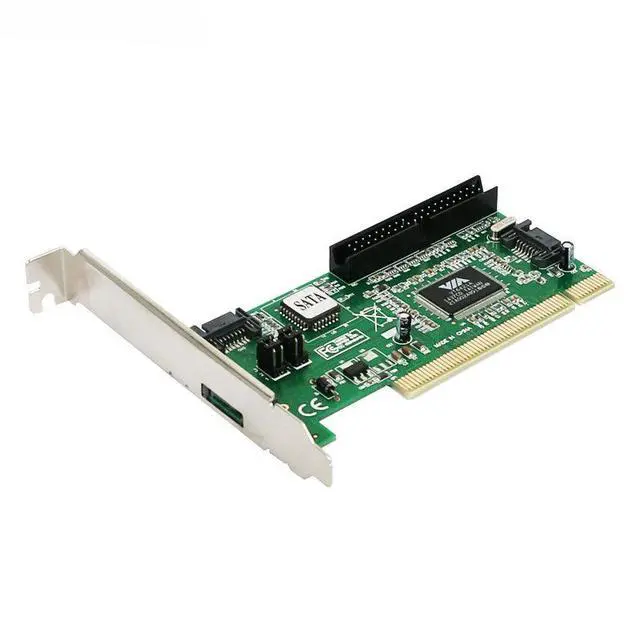

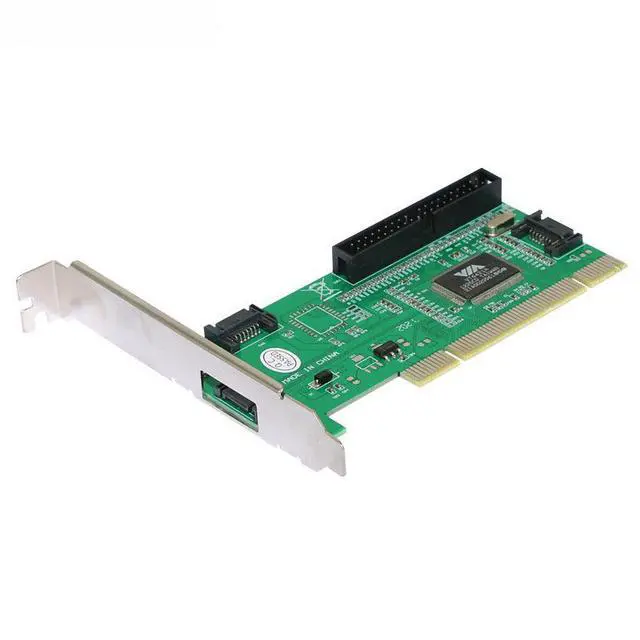

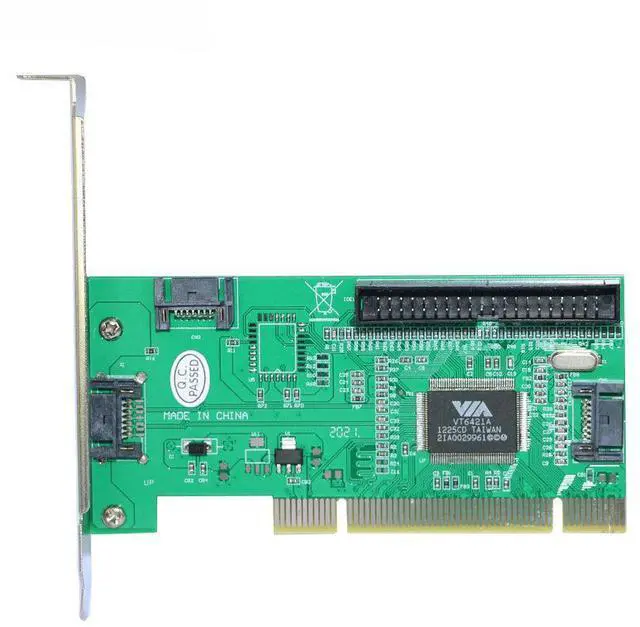

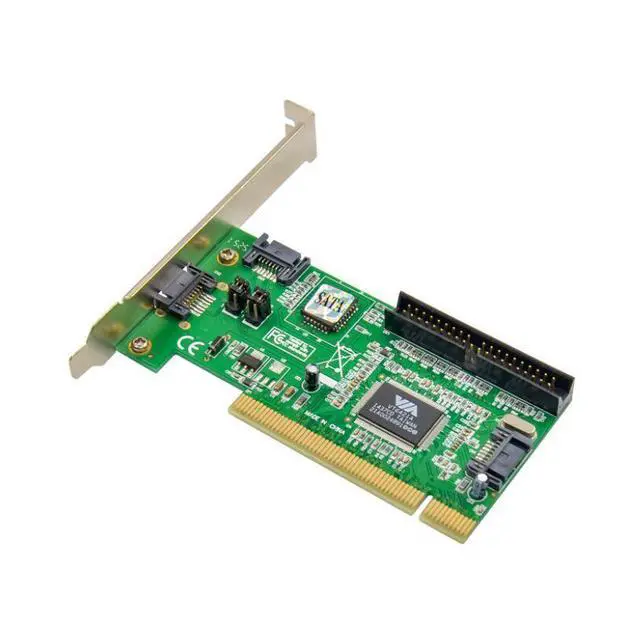

VIA VT6421 PCI to SATA / eSATA / IDE Adapter Card PCI to SATA + IDE Combo Expansion Card, Desktop Hard Drive Converter for Legacy & SATA HDD/SSD

Product Overview:

The Xin-B009 is fully compliant with Serial ATA 1.0 specification, delivering high-performance Serial ATA RAID functionality across desktop, mobile, and server processor platforms. It supports all ATA and ATAPI devices, including hard drives, CD/DVD drives, high-capacity removable storage devices, and features both 32-bit PCI and PCMCIA interfaces, enabling seamless migration to Serial ATA for PC and mobile systems.

It supports two Serial ATA channels (up to two devices simultaneously) plus one Parallel ATA channel (up to two devices). With PCMCIA/CardBus support, it can handle two additional Serial ATA devices. The Xin-B009s dual-channel Serial ATA delivers 12% higher bandwidth than ATA-133 between storage devices and CPU, with each channel reaching up to 150MB/s critical for precise data transmission and improved storage performance.

RAID levels supported include RAID0 (performance), RAID1 (security), and JBOD. For backward compatibility, the Xin-B009 integrates a single-channel Parallel ATA-133 controller, eliminating the need for additional adapters.

The Xin-B009 simplifies internal cabling and improves airflow, allowing OEMs and system builders to design smaller chassis that meet market demand for more compact, highly integrated PCs. Advanced engineering enables smaller connectors, saving space for both 3.5-inch and 2.5-inch drives, while the VIA VT6421A low-voltage design allows 5V tolerance on Parallel ATA interfaces. Broad ATA/ATAPI device compatibility gives OEMs and system integrators flexibility to design products across multiple price points.

The Xin-B009 is an ideal solution for PC and mobile users looking to upgrade storage systems with the latest Serial ATA RAID standards, offering high bandwidth, fast transfer rates, enhanced data integrity, and robust performance. Point-to-point device-level connections simplify installation with no complex configuration or jumper settings required.

Legacy OS drivers are supported without software updates. The Xin-B009 is fully compatible with Intel and AMD processor platforms and supports Microsoft Windows 9x/ME/NT4/2K/XP/VISTA as well as major Linux distributions.

Key Features:

Flexibility

Support for both Serial ATA and Ultra ATA/133/100/66 allows system builders to easily integrate full ATA and ATAPI drive support across their product lines.

Outstanding Performance

Dual-channel Serial ATA delivers up to 150MB/s per channel faster than any previous IDE interface supporting two SATA devices.

Versatile Configuration Options

Multi-level RAID support lets end users combine drives for performance, data security, or maximum capacity, while backward compatibility with Serial ATA ensures seamless network connectivity.

Simplicity

Integrated design leverages SATA benefits including simpler cabling and smaller connectors, enabling innovative internal chassis designs suitable for compact systems, with hot-swap support.

RAID Controller

1. Supports RAID 0, RAID 1, and JBOD

PCI Interface

1. 33MHz operation
2. Supports PCI 2X mode and native PCI mode
3. Compliant with PCI Local Bus Specification Revision 2.2

Ultra ATA-133 / IDE Interface

1. Single-channel bus master IDE controller supporting two Enhanced IDE devices
2. Redesigned IDE bus master programming interface supports up to 4 bus masters in a single function
3. Supports ATA PIO Mode 4, multi-word DMA Mode 2, and UltraDMA Mode 6
4. Ultra DMA-133 interface speed up to 133MB/s
5. Compliant with ATA/ATAPI-6

Serial ATA Interface

1. Compliant with Serial ATA Interface Revision 1.0
2. Integrated internal PHY, each supporting two SATA devices
3. Dual-channel bus master PCI supports two SATA devices
4. Up to 150MB/s per SATA channel

Additional Features

1. Supports external FLASH or EEPROM for BIOS extension and RAID functionality

Power

1. 3.3V PCI and IDE operating voltage
2. 2.5V oscillator and Serial ATA operating voltage
