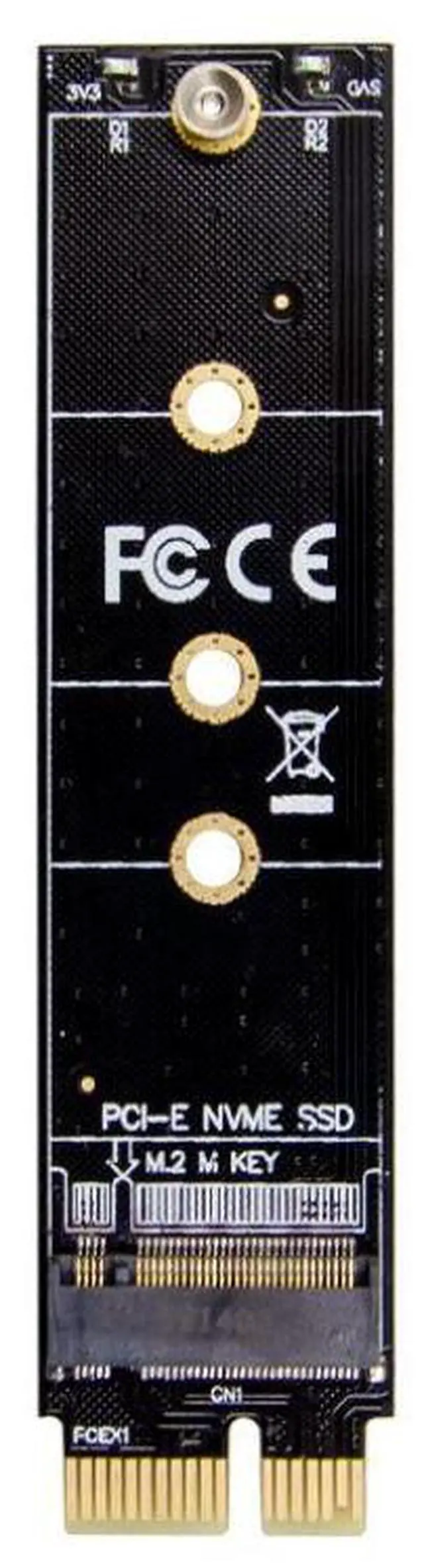

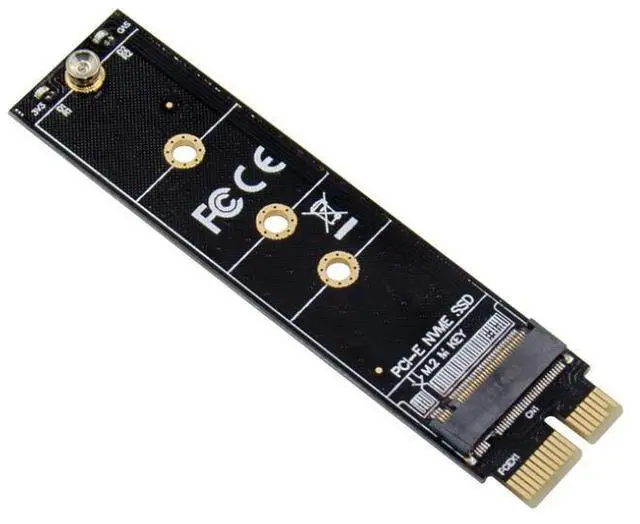

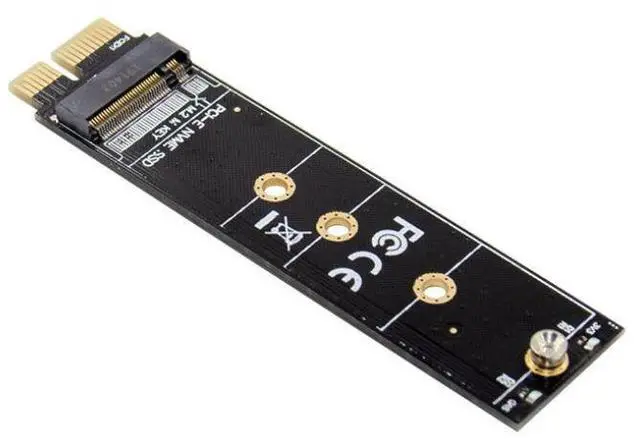

PCIe x1 to M.2 NVMe SSD Adapter Card M.2 Key M to PCI-E x1 Converter, Desktop NVMe SSD Expansion Card, Driver-Free, Supports 2230/2242/2260/2280

Bus Type: PCI Express x1 Rev 3.0

Media Interface: 1 × M.2 Key M NVMe SSD connector

M.2 Supported Sizes: 2230, 2242, 2260, 2280

Important Notes:

1. This product requires motherboard BIOS support for PCIe boot. If not supported, the computer will not be able to recognize the SSD.
2. This product supports NVMe protocol SSDs only. It does NOT support SATA protocol SSDs.
3. This product is designed for SSD testing purposes only. The x1 bandwidth speed cannot reach the full x4 speed of M.2. If you intend to use it as a boot drive, please consider this limitation carefully.

Features:

1. Allows users to connect a standard M.2 SSD to a desktop PCIe x1 / x4 / x8 / x16 slot speed is limited to x1 only.
2. Supports M.2 card sizes: 2230, 2242, 2260, 2280.
3. Supports M.2 Key M NVMe SSDs only does NOT support M.2 SATA B-Key SSDs.
4. M.2 NVMe to PCIe adapter card.
5. PCIe interface supports PCI Express Rev 3.0 1X signaling.
6. Works in desktop office PCs or gaming setups.
7. Compact size, easy to install. (Multiple PCIe slots on the motherboard can be used to test multiple SSDs simultaneously.)
