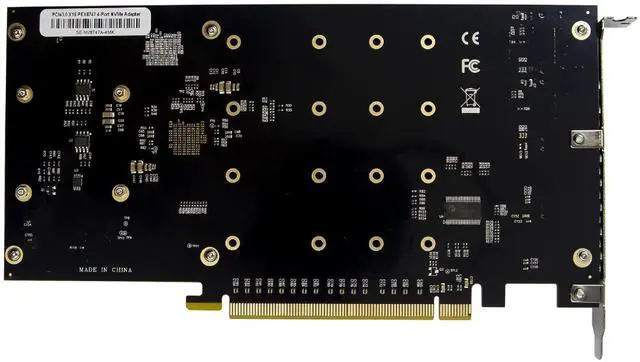

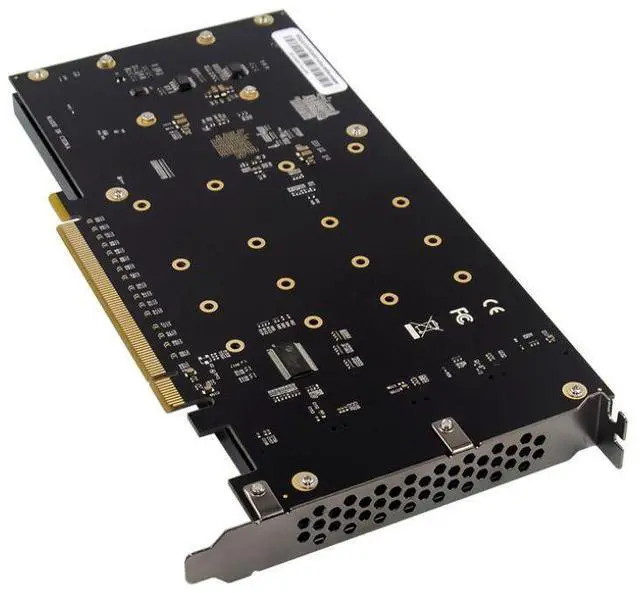

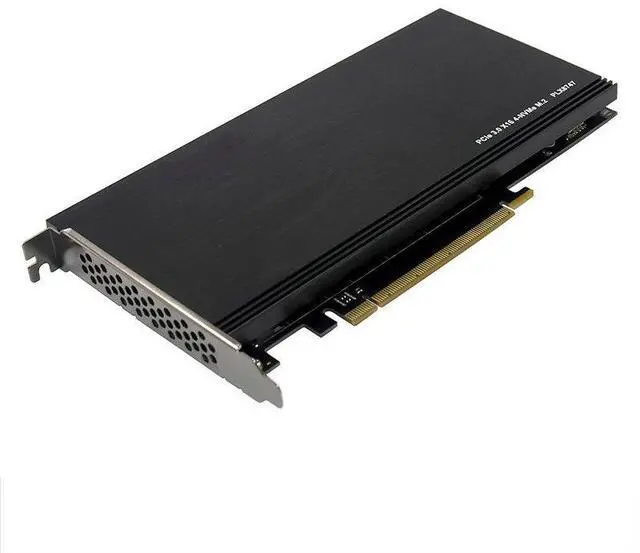

PCIe 3.0 x16 to 4-Port M.2 NVMe Expansion Card PLX8747, Driver-Free, Quad M.2 SSD Adapter for Server / Desktop / High-Performance Storage

SE-M8747A-4MK PCI Express 3.0 x16 M.2 NVMe SSD Adapter Card Its switching functionality enables users to connect multiple hosts to their respective endpoints through scalable, high-bandwidth, non-blocking interconnects, supporting a wide range of applications including server, storage, communications, and graphics platforms. Featuring the enhanced PLX 8747 field-proven and ideal for fan-out, aggregation, and peer-to-peer traffic patterns.

The PCI Express 3.0 x16 bus architecture allows users to configure the device in legacy single-host mode or multi-host mode, with up to four host ports supporting 1+1 (one active and one backup) or N+1 (N active and one backup) host failover. With its robust architecture and enhanced features, users can build PCIe-based systems with high availability, failover, redundancy, or clustering capabilities.

Key Specifications:

1. Compliant with PCI Express Specification Revision v3.0 backward compatible with PCIe 2.0, PCIe 1.0, and PCIe 1.0a
2. PCI Power Management Specification Revision 1.2
3. Per-lane transfer rates: 2.5Gb/s: 250MB/s, 5Gb/s: 500MB/s, and 8Gb/s: 1GB/s
4. Bus Interface: PCI Express 3.0 x16
5. Supports NVM Express (NVMe) and M.2 Specification Revision 0.9

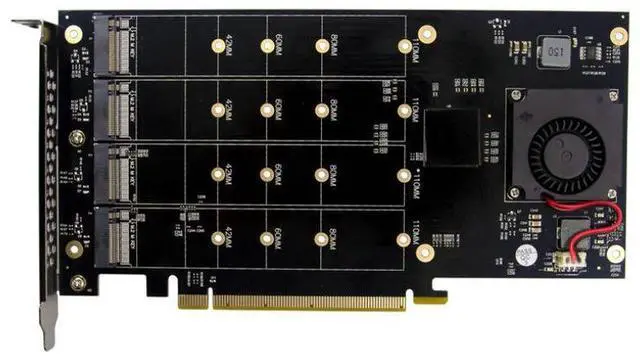

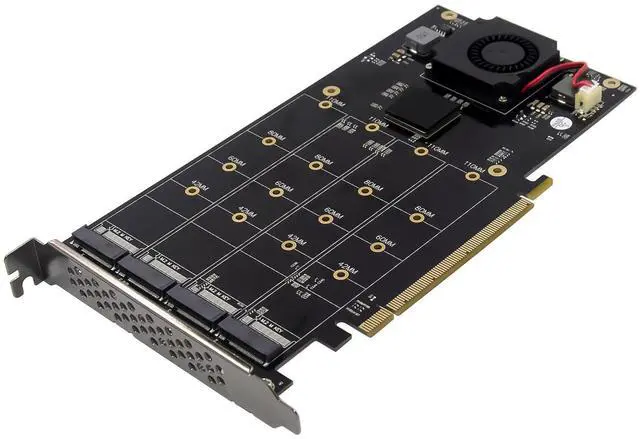

6. Supports 4-port x16 lane M.2 Key M NVMe SSD devices
7. Supports M.2 SSD module sizes: 2230, 2242, 2260, 2280, 22110
8. Supports M.2 "M" Key via PCIe protocol
9. LED read/write indicators
10. Onboard active cooling fan
11. Automatic lane configuration detection at boot
12. Hot-swap support on all ports
13. Operating Temperature Range: 0°C ~ 85°C

System Requirements:

1. Windows 7 / 8 / 8.1 / 10 32-bit or 64-bit
2. Linux kernel 3.17 or later
