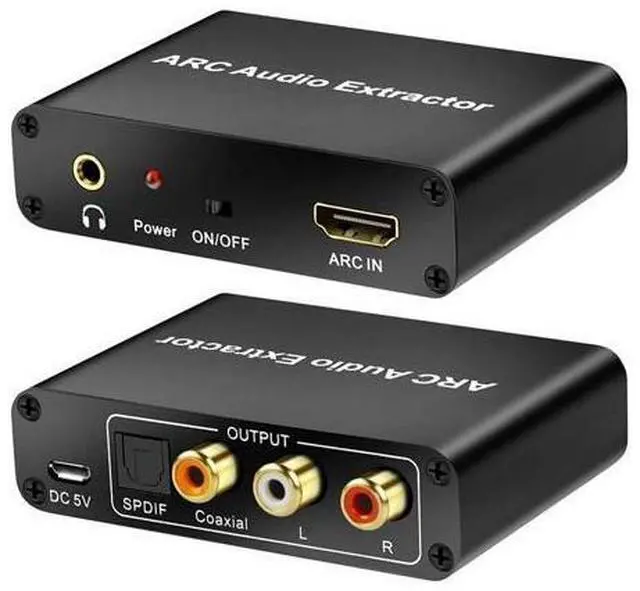

192KHz HDMI ARC Audio Extractor Digital to Analog Audio Converter ARC L/R Coaxial SPDIF 3.5mm Extractor Return Channel for TV

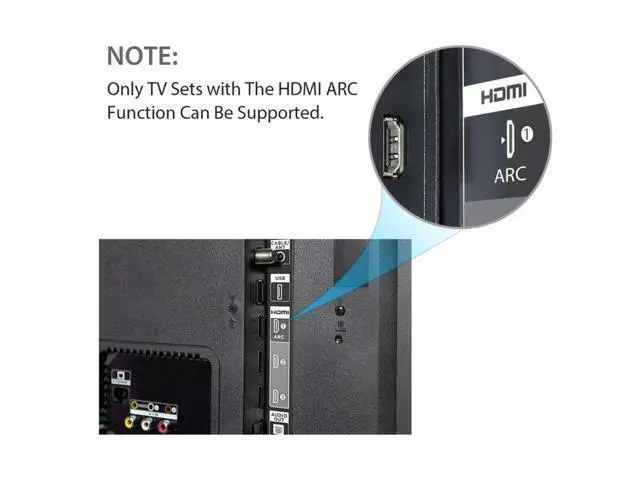

NOTE: Only TV Sets with The HDMI-compatible ARC Function Can Be Supported! This product not support the youtube website and Netflix!

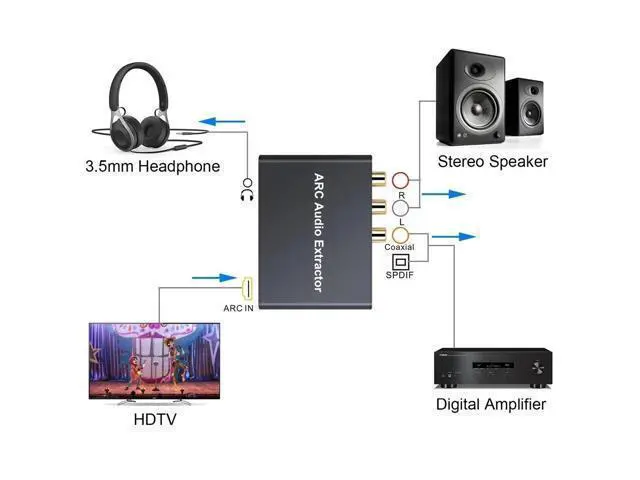

Main Feature: 1. HDMI-compatible ARC Audio Extractor --- This Audio Extractor with HDMI-compatible Input and Coaxial, SPDIF L/R RCA 3.5 mm Output, It is Suitable for TV.
(NOTE: Only TV Sets with The HDMI-compatible ARC Function Can Be Supported. ) 2. DAC CONVERTER --- This Converter Can Be Used to Convert PCM/ LPCM 2.0CH Digital Audio to L/R RCA and 3.5 mm Analog Stereo Audio. 3. 4 INTERFACE Audio Separation --- Coaxial / SPDIF Interface Supports 5.1CH Audio Output, RCA and 3.5 mm Interface Supports 2.0CH Audio Output, 4 interface synchronization output. 4. 192kHz 24bit --- Supports Sampling Rate at 32KHz, 44.1KH z, 48KHz, 96KHz and Even 192Khz 24bit, Proving High Quality Audio Transmission. 5. CONVENIENT DESIGN --- Aluminum Alloy Case with Gold Plated Interface Provide Good Anti-Interference. Let the Sound Quality Nondestructive Switching.

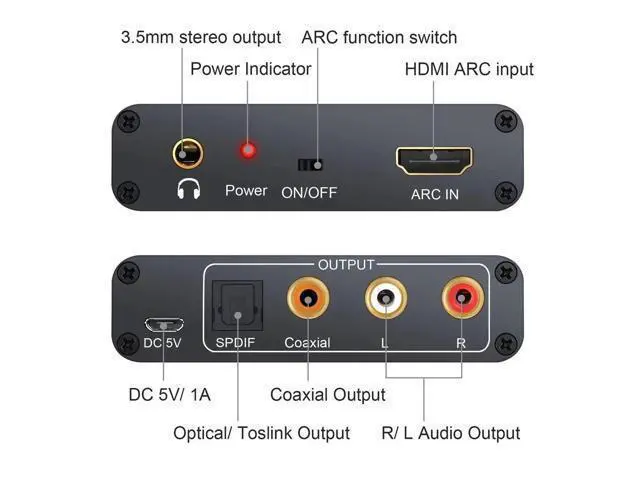

Features: Support SPDIF output Support Coaxail output Support RCA Stereo output Support 3.5 mm stereo headphone output 3.5 mm stereo headphone port equipped with high-performance audio. amplifier Support switch noise reduction Support automatic signal mute function Support transmission of 192KHz audio sampling rate Optical fiber coaxial interface supports 5.1 channel transmission

Specifications

:
Material: Aluminum
Alloy Color: Black
Power Supply Interface: Micro
USB Maximum operating current: 65mA
Power Adapter Specification: AC 100V-240V 50/60HZ, DC 5V/1A
Working environment temperature: -10~+55
Storage temperature: -20~+60
Operating Humidity: 10~90%RH(non-condensing)
Storage humidity: 5~95%RH (non-condensing)
Case size: 81.5 * 58.5 * 21.5 (mm)
Weight: 120g
Package Contents: 1 x HDMI-compatible ARC Audio Adapter 1 x USB Cable 1 x Users
Manual Please Note: when control the sound, you should check your TV setting--sound--HDMI-compatible ARC Sound--Turn down or turn up. It can not control by the TV volume directly.
