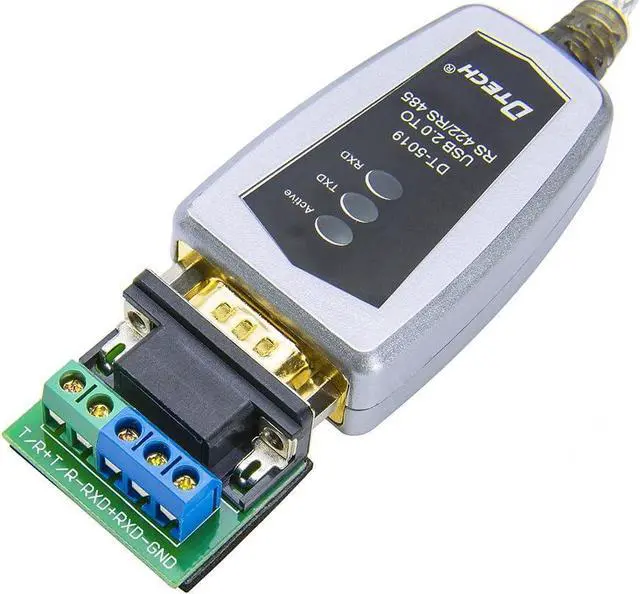

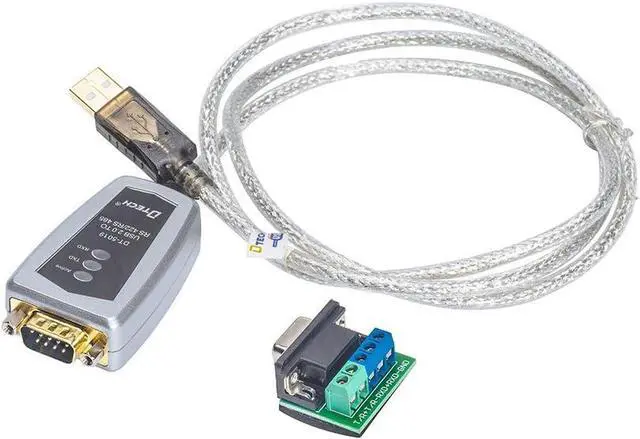

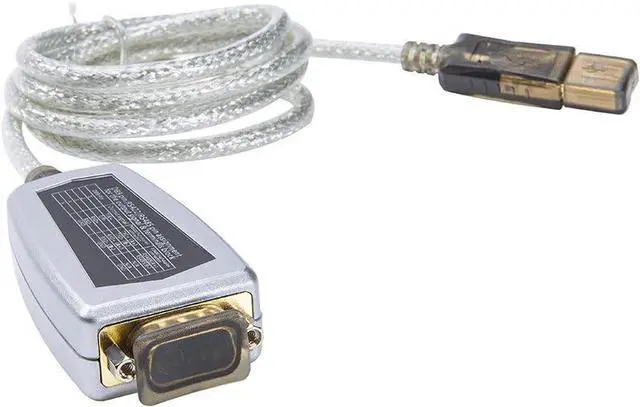

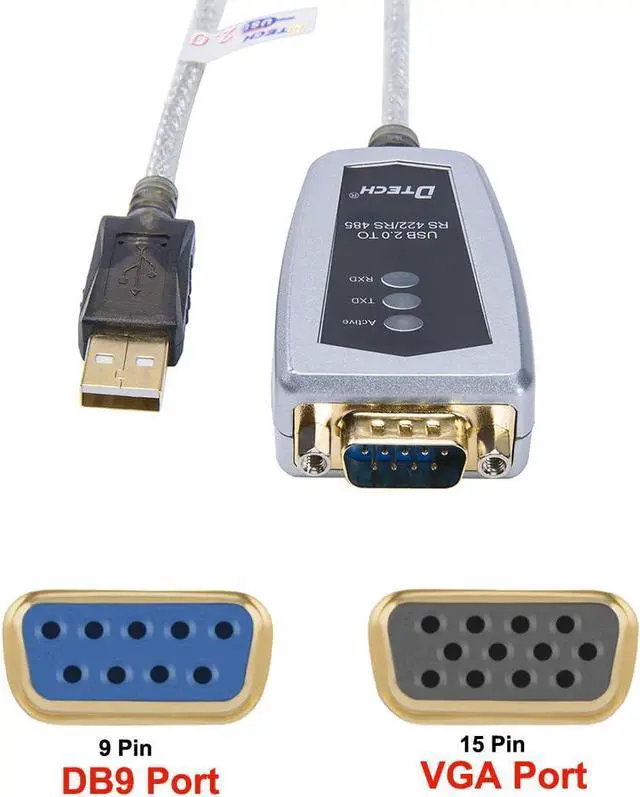

DTECH 2m FTDI USB to RS422 RS485 Serial Port Converter Adapter Cable with FT232RL Chip Supports Windows 10 8 7 XP Mac Linux (6 Feet, FT232 Chipset)
- USB to RS485 RS422 converter It easily lets you connect RS485 or RS422 device directly to your Laptop PC computer USB port
- Ideal for industrial environment -provides 600w surge protection and 15KV ESD isolated protection on signal pins to protect costly and often sensitive control equipment against electrical damage
- With high performance quality processor chip (FTDI-chipset FT232) and I/O auto conversion circuitry which makes RS 485 to USB convertor one of the most reliable dongle on the market
- 0.5m short serial RS-422 RS-485 to USB adapter cable supports windows 10 8 7, Mac and more; plug-and-play, No power supply needed
- There are no IRQ and COM port conflicts, since the port do not require any additional IRQ, DMA, memory as resources on the system; RS485 for Half duplex and RS422 for Full duplex communication
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DTECH 2m serial to USB adapter allows you to connect RS422 or RS485 serial devices to computer via USB, without any troubles like computer freeze, IRQ, DMA or COM port conflict.

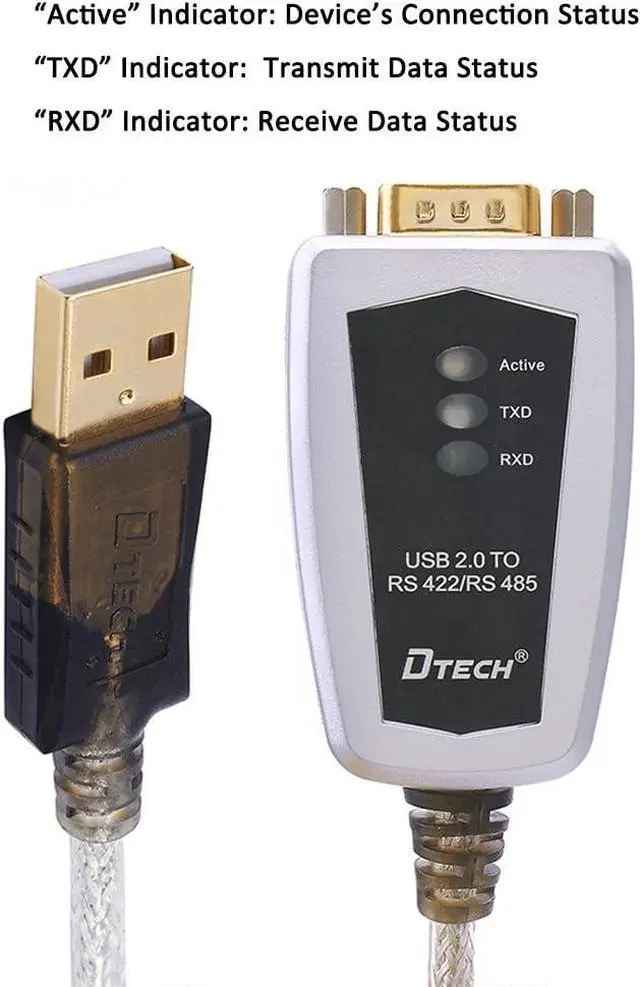

With noise immunity and multiple drops capability (up to 32), the USB to RS485 converter with FTDI chip supports reliable signal conversion between serial devices and PC. With power, TX and RX indicators to help you check the connection and communication activity, which is very helpful when troubleshooting.
High quality industrial USB serial dongle features baud rate auto-detected, zero delay automatic transmission, and automatic hand-shaking protocol, so you can get high speed data transfer over serial port.
With 600W static surge and 15KV static protection to effectively protect a costly and sensitive control equipment against electrical damage.
Note:Please do NOT connect the adapter to a serial device until the driver installed on computer. If need advice on driver installation, please email us any time.
Specific
TIA/EIA RS422/RS485 Standard; USB 2.0
Max Baud rate: 921600bps
Max Distance (RS485/422 End): 984ft (300m) at 921600bps, 1968ft (600m) at 38400bps, 3937ft (1.2km) at 9600bps

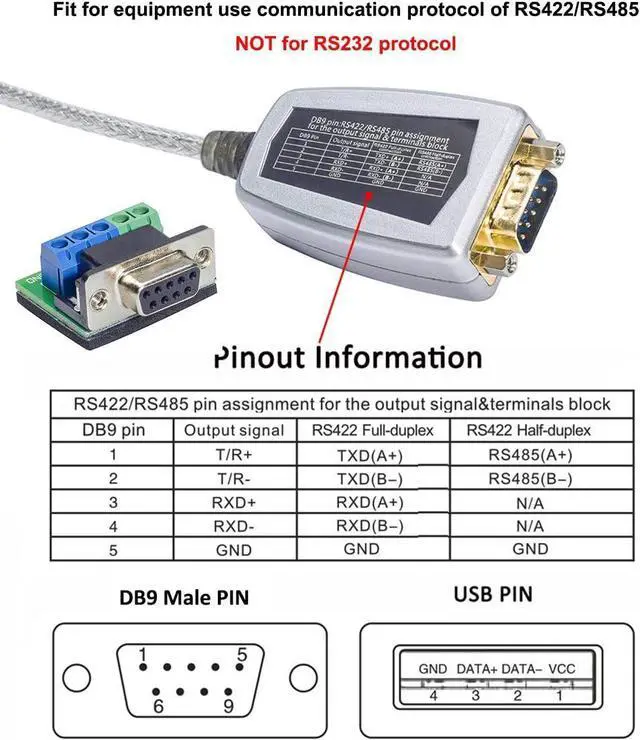

Working modes: asynchronous. Point to point or point to multi point; 2 line half duplex and 4 line full duplex.
Application fields: Factory automation/Distributed control system, LED INFO display equipment , PLC control, SCADA, Measure instruments and monitoring system, CNC management, Medical automation, Building automation, Check on work attendance, laboratory testing and other devices where mission critical applications are required
Whats Included
1 x 2 meters USB to RS485 RS422 Serial Cable 6ft

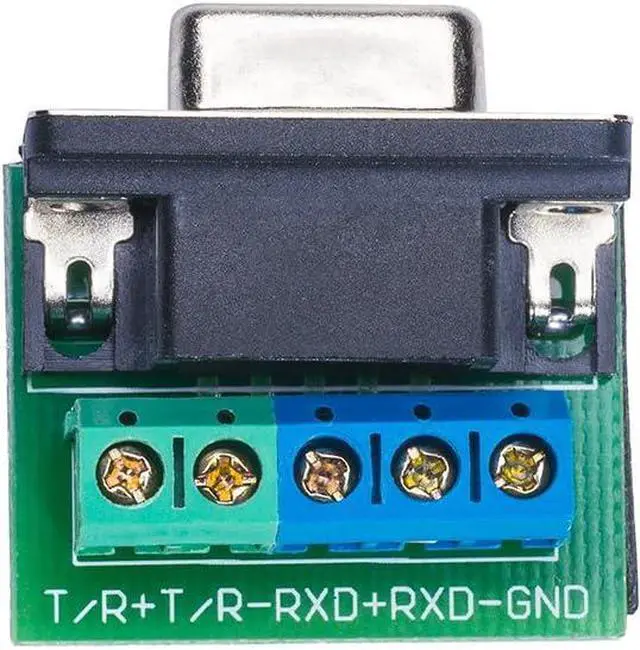

1 x 9 Pin RS232 female to 5 position Terminal Board
1 x Mini CD
