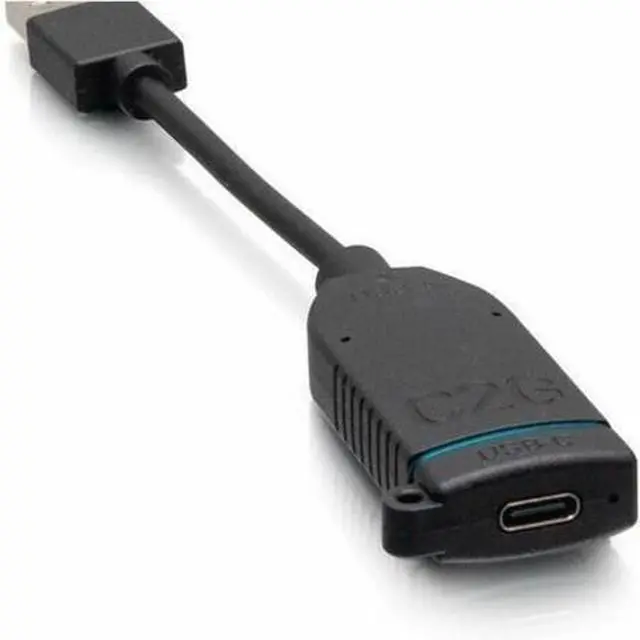

C2G USB-C to USB-A Dongle Adapter Converter for AV Ring Model C2G30061

This USB-A to USB-C Dongle Adapter Converter for AV Ring is an easy and convenient solution for connecting a USB-C cable, USB-C hub, or USB-C peripherals to a USB-A female port on a laptop or source device. The eyelet hole on the adapter makes it a perfect addition to your new or existing HDMI AV Adapter Ring.

Pair this adapter with a USB-A laptop and the Barco ClickShare to enjoy a hybrid meeting space with flexibility for virtual collaboration.

Easily attach this USB-A to USB-C Dongle Adapter to any of our HDMI Adapter Rings.

Note: This USB-A to USB-C Adapter supports USB 2.0 (480 Mbps) and will not support video transmission.

Features and Benefits:

1. Adapts a USB-A female port of a laptop or source device to a USB-C port for data transmission
2. Dongle style adapter reduces strain, prolonging the life of the port
3. Plug-and-play, so no additional software or drivers needed
4. Adapter includes a blue band around it, making it quickly identifiable when added to an HDMI AV Adapter Ring

Additional Technical Specifications

SIGNAL SPECIFICATIONS

1. Testing: 100% Functional Test @ USB 2.0 (480 Mbps)

ELECTRICAL SPECIFICATIONS

1. Conductor Resistance: at 20°C Max, 28 AWG: 237/KM; 24 AWG: 93/KM
2. Voltage Rating: 30V
3. Insulation Resistance: 10 /KM min at 20°C DC 500V
4. Dielectric Strength: AC 500V/1 Minute No Breakdown

PHYSICAL SPECIFICATIONS

1. Temperature Rating: 105°C
2. Minimum Bend Radius: 25mm

PHYSICAL CHARACTERISTICS

1. Connector 1: USB-A Male; Solder Type, Contacts: Brass, Gold Flash, Housing: PBT, White, Shell: Nickel Plated
2. Connector 2: USB-C Female; Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
3. Adapter Hood: Molded Black (Pantone/#Black 6C) PVC
4. Color Band: Blue (Pantone#801C)
5. Jacket Material: PVC
6. Jacket Thickness: 0.55mm AVG
7. Product is CE Marked and Conforms to 2011/65/EU ROHS 2
