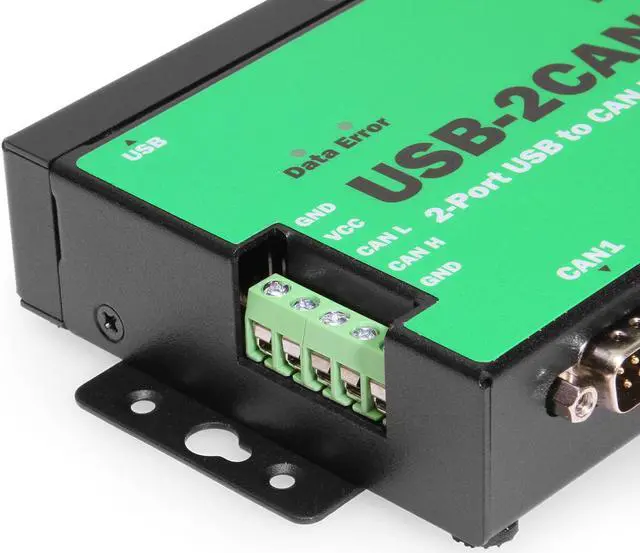

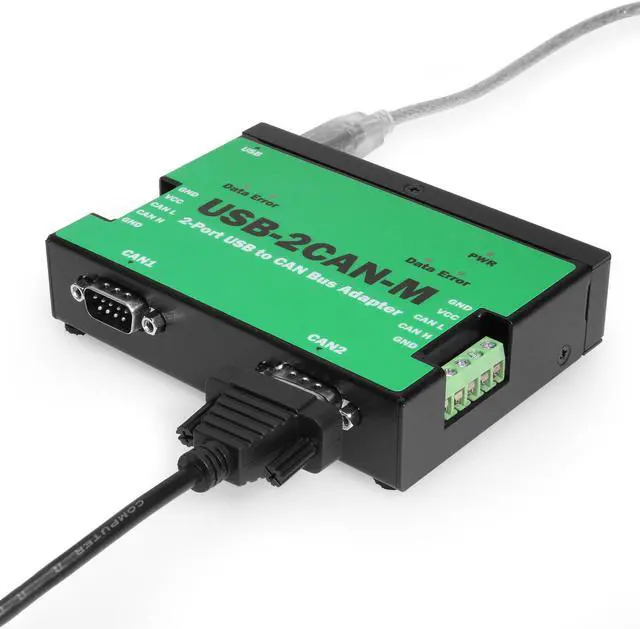

Coolgear 2-Port USB to CAN Bus Adapter, DIN-Rail & Wall Mountable Metal Case

A Controller Area Network (CAN) is a high-integrity asynchronous serial bus system for networking intelligent devices. It is often used in automotive and industrial systems. The USB-2CAN-M is designed to make a fast, simple way to communicate with CAN bus devices. Connected to a USB port on your computer or USB hub, the USB-2CAN-M instantly adds two industrial CAN bus channel to your host system with easy plug and play (PnP) and hot plug features. The USB-2CAN-M provides a cost-effective solution for customers to enable communication with CAN bus devices. The solution designed using an ARM Cortex-M0 32-bit micro controller and the USB to serial chip makes it very flexible in handling small burst of CAN frames at a high speed. The USB-2CAN-M provides DC 5V 100mA power for external devices.

Features:

1. Adds two CAN bus port on your computer by connecting to a port
2. 16kV ESD Protection
3. Powered by USB port, no external power adapter required
4. LEDs indicate initialization and CAN bus status
5. Installs as a standard Windows COM port
6. Supported CAN modes: Standard, Listen, Echo
7. Can be controlled over serial port using ASCII commands
8. Easy to use API provided along with sample source codes and GUI sample programs
9. Easy plug and play installation and CAN bus device connection
10. CAN bus speed up to 1Mbps
11. 128 bytes transmit and 384 bytes receive FIFO buffer for high speed data throughput
12. Supports CAN 2.0A and CAN 2.0B protocols
13. Designed by ARM Cortex-M0 32-bit microcontroller and the USB to UART chip
14. Drivers provided for Windows and Linux OS
15. Supports SocketCAN (slcan driver) since kernel 2.6.38+

OS Support:

1. Windows 7, Windows 8, Windows 10 and Windows 11
2. Linux and Mac OS 10.X
