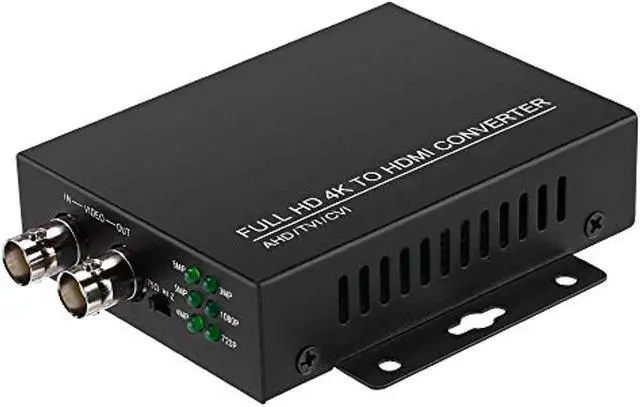

TVI/CVI/AHD to HDMI Converter Adapter, Full HD 4K 720P/1080P/3MP/4MP/5MP/8MP BNC to HDMI Video Converter for Monitor HDTV DVRs, Convert TVI CVI AHD CVBS BNC Video Signal to HDMI (HDC/T)
- TVI CVI AHD CVBS to 1080P HDMI Output: Plug and play; It converts TVI CVI AHD CVBS security camera signals to HDMI monitor.
- 4K HD CVI/TVI/AHD/CVBS BNC Loop Output: High-definition video processing technology. Restoring non-loss HD images and maintaining the image brightness, contrast, and color.
- Auto recognition resolution: Supports 720P, 1080P, 3MP, 4MP, 5MP, 8MP for TVI/AHD input; Supports 720P, 1080P, 4MP, 8MP for CVI input.
- Widely Applications: Our TVI to HDMI video converter widely used for shopping malls, home monitoring, high-definition monitoring, elevator monitoring, traffic monitoring and so on.
- Long Transmission Distance: 500-700 meters over coax cable; Different resolution, different transmission distance. Please feel free to contact us for technical support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

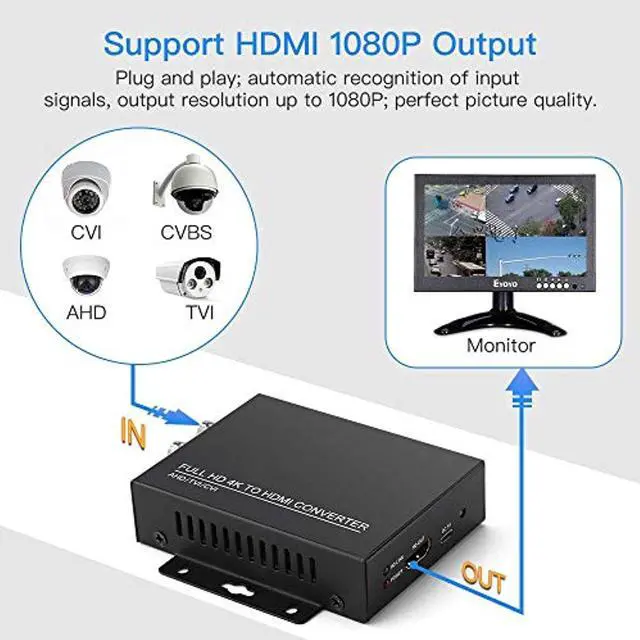

Features: 1. CVI/TVI/AHD+CVBS to HDMI. HDMI output 1080P/60FPS. Connected to HDMI output, HD-LINK indicator is always on, yellow light. Plug and play; automatic recognition of input signals.
2. Support 4K HD CVI/TVI/AHD/CVBS BNC Loop Output. Restoring non-loss HD images.

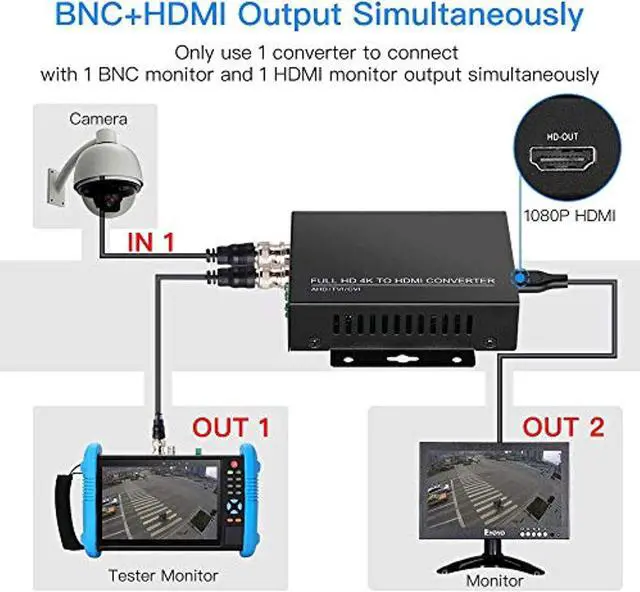

3. Support BNC and HDMI can be output simultaneously.
4. Using multiple converters support realize synchronous display of multiple monitors.

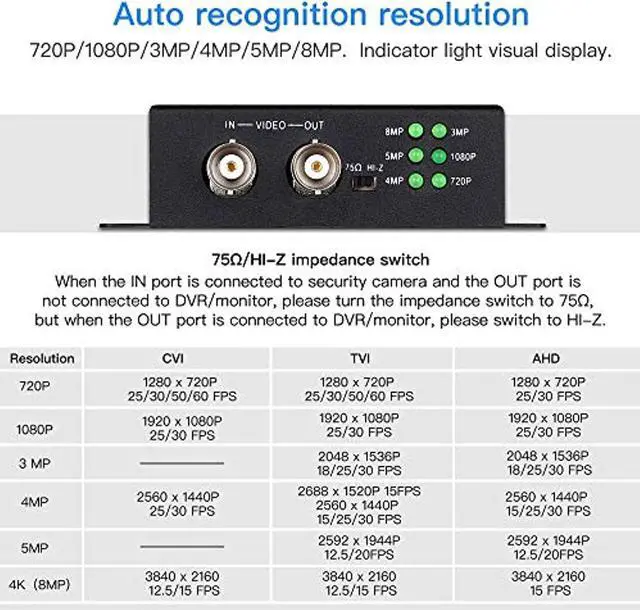

5. Auto recognition resolution. 720P/1080P/3MP/4MP/5MP/8MP. Indicator light visual display.
6. Support up to 4K (8MP) TVI/CVI/AHD cameras.
Specification: Input
Port: One channel CVI/TVI/AHD/CVBS BNC input
Output Port: 1x One Channel CVI/TVI/AHD/CVBS BNC output 1x One channel
HDMI output Material: Metal housing
Transmission Distance: 500~700 meters (Different resolution, different transmission distance)
External power supply: DC 5V1A
Working Temperature: -10---+50
Working Humidity: 30%-90%
Dimension: 109mm x 94mm x 25mm
Weight: 0.18 kg
Please Note:
1. Power connection The device uses 5V/1A power supply. POWER indicator is always on after power supply is connected. 2. 75 / HI-Z Impedance switch When the IN port of the converter is connected to the camera, and the OUT is not connected to the DVR, please set the impedance switch to
75. When the IN port of the converter is connected to the camera and the OUT port is connected to the DVR, please set to HI-Z.
Package contents: 1x Converter 1x Power Adapter 1x BNC Cable 1x USB Power Cable
2. Support 4K HD CVI/TVI/AHD/CVBS BNC Loop Output. Restoring non-loss HD images.
3. Support BNC and HDMI can be output simultaneously.
4. Using multiple converters support realize synchronous display of multiple monitors.
5. Auto recognition resolution. 720P/1080P/3MP/4MP/5MP/8MP. Indicator light visual display.
6. Support up to 4K (8MP) TVI/CVI/AHD cameras.
Specification: Input
Port: One channel CVI/TVI/AHD/CVBS BNC input
Output Port: 1x One Channel CVI/TVI/AHD/CVBS BNC output 1x One channel
HDMI output Material: Metal housing
Transmission Distance: 500~700 meters (Different resolution, different transmission distance)
External power supply: DC 5V1A
Working Temperature: -10---+50
Working Humidity: 30%-90%
Dimension: 109mm x 94mm x 25mm
Weight: 0.18 kg
Please Note:
1. Power connection The device uses 5V/1A power supply. POWER indicator is always on after power supply is connected. 2. 75 / HI-Z Impedance switch When the IN port of the converter is connected to the camera, and the OUT is not connected to the DVR, please set the impedance switch to
75. When the IN port of the converter is connected to the camera and the OUT port is connected to the DVR, please set to HI-Z.
Package contents: 1x Converter 1x Power Adapter 1x BNC Cable 1x USB Power Cable
