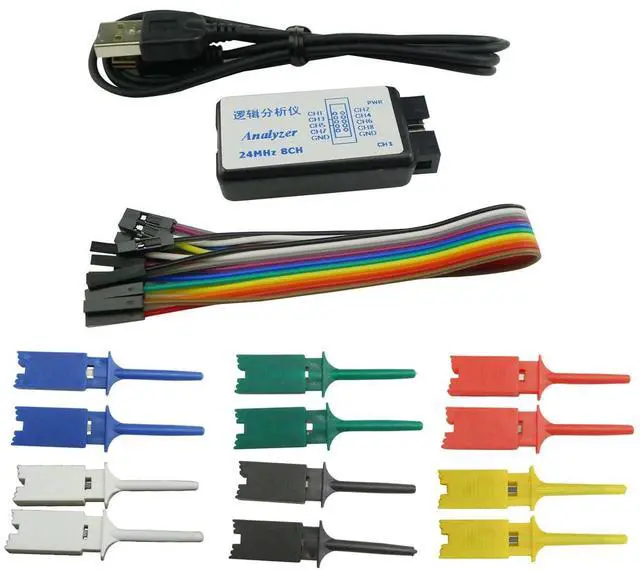

USB Logic Analyzer 24MHz 8CH 8 Channel UART IIC SPI Debug Device + 12PCS 6 Colourful Test Hook Clip Set + USB Cable + Debugging Tool Sets

Features:

Logic sampling can go up to 24M/s per channel, in fact 10M/S is sufficient.

8 channels: You can collect signals while analyzing data. It can monitor 8 different digital signals. Sample and analyze like I2C, UART

Logic sampling can be up to 24M per second per channel.

The sampling rate can be set as follows. 24KHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;

If you need product information, please contact us.

Specifications:

Maximum sampling rate: 24Msps

Input voltage range: 0~5V

Digital channels: 8

Input low level: < 0.8V

Input high level: > 1.4V

Supported protocols: SPI, IIC, UART, SMBus, I2S, CAN, parallel, custom, search, asynchronous, 1-Wite, PS/2

Input impedance: 1M|| 10pF (typical Value, approximate value)

Crystal: ±20ppm, 24MHz

Error/Accuracy: Pulse width measurement: ±42ns (at 24MHz)

Size (L x W x H): 55 x 28 x 14 mm

Product weight: 50g

Note:

First, please make sure the computer is USB2.0 or USB3.0 high speed. Normal operation cannot be performed with low-speed USB.

The normal operating voltage of the analyzer is 5.5V or less, low level if it is 1.5V or less, and high level between 1.5 and 5.5V, and the highest voltage is 7.5V. . Please ensure the acquisition signal voltage is within 5.5V.

Please ensure the signal frequency is 0-12Mhz digital signal.

Before collecting the signal, please connect the GND of the forward logic analyzer to the connected single board GND. Otherwise, the measured data will be incorrect.

Please insert the USB into the analyzer horizontally to avoid damage.

Package Contents:

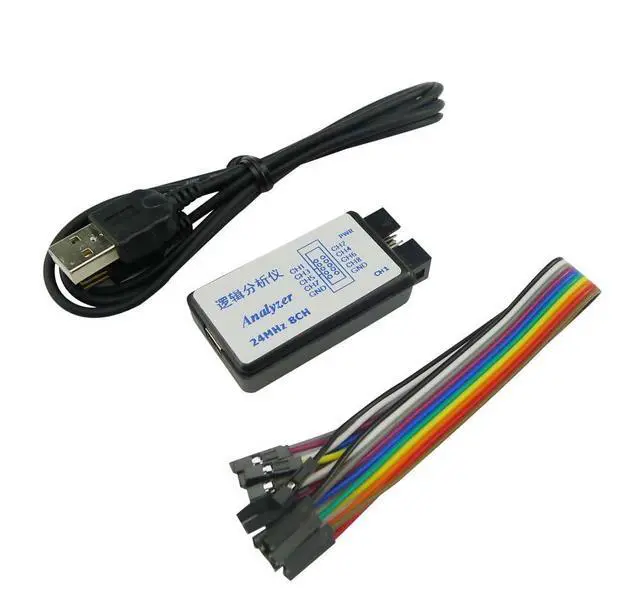

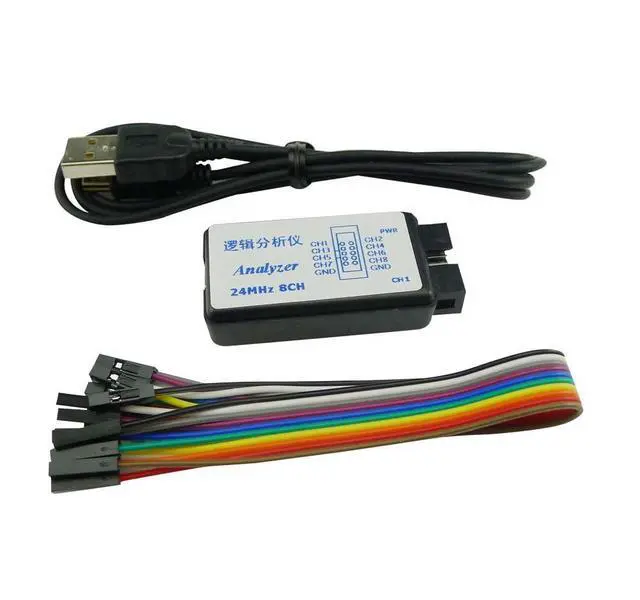

1 X 24MHz 8 Channel USB Logic Analyzer 8CH Logic Analyzer

12x test clips

1x USB cable
