Wsdcam TVI to HDMI Converter Full HD 4K Converter, 1080p/720p/4K/8MP/5MP/4MP/3MP, BNC to HDMI Video Converter Adapter - CVBS/TVI/CVI/AHD to HDMI (WSDUS0327)
- TVI to HDMI video converter that is used to display live 1080p high definition video from TVI security cameras on a HDMI TV monitor for public view monitors or connect to DVR. In addition to TVI camer
- Works with all HD-TVI/AHD video resolutions: 720p, 1080p, 3 MP, 4 MP, 5 MP, and 8 MP(4K). Works with CVI video resolutions: 720p, 1080p, 4 MP, and 8 MP(4K). And there are LEDs that specify what resol

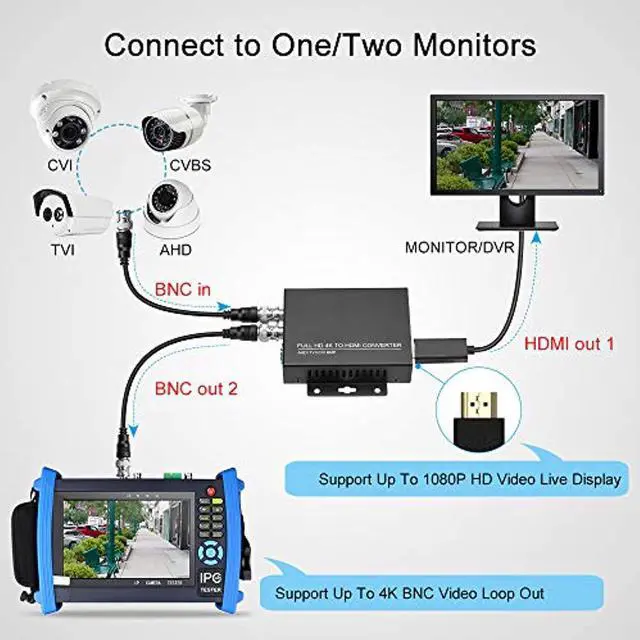

- The HDMI video output is 1080p resolution. There is 4K BNC Video Loop Out which allows you to send the native HD video signal (TVI, CVI, AHD, CVBS) to another device, such as a surveillance DVR, seco

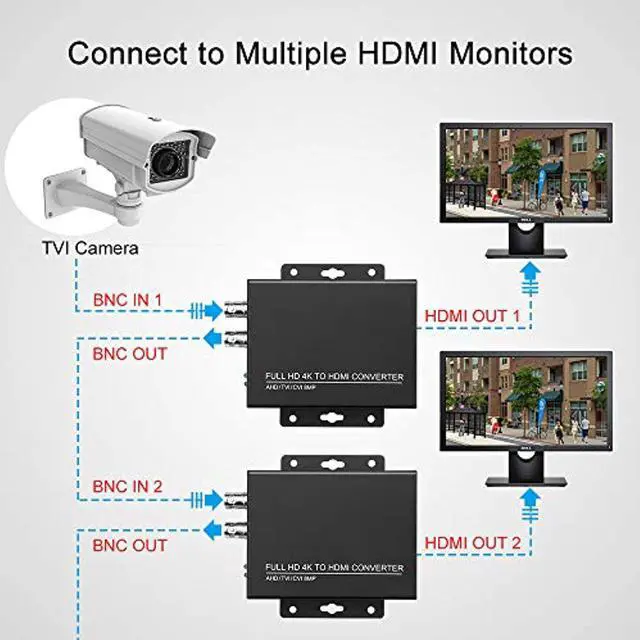

- Multiple TVI to HDMI converters can be used as a video splitter to connect one analog camera to multiple HDMI monitors. Easy to use, plug and play, no driver requirements. Strong compatibility, compa

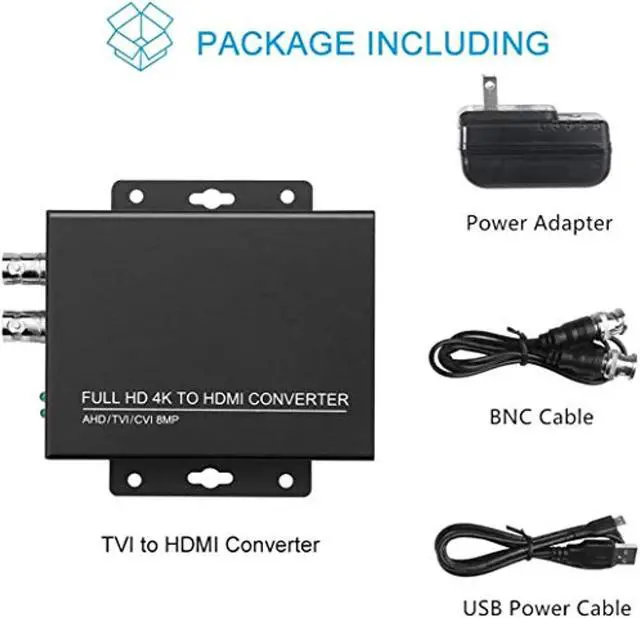

- Package Including: 1* bnc to hdmi converter, 1* power adapter, 1* BNC cable, 1* USB cable. Converter Size: 3.74*2.83*0.94 inch/9.5*7.2*2.4 cm. Product warranty: we provide each customer who o
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HD-TVI to HDMI Converter is typically used to connect a TVI security camera to an HDMI monitor to display a live high definition video feedProduct
Parameters: Supported HD-TVI Camera Resolutions and
Frame Rates: 720p @ 25/30/50/60 FPS 1080p @ 25/30 FPS 3 MP (2048 x 1536) @ 18/25/30 FPS 4 MP 2688 x 1520p @ 15 FP 4 MP 2560 x 1440p @ 12/25/30 FPS 5 MP 2592 x 1944p @ 12.5 /20 FPS 4K (8 MP) 3840 x 2160 @ 15 FPS Supported CVI 4MP, AHD 5MP Camera Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display TVI+CVBS to HDM, HDMI output
HDMI Output Resolution: 1080p 60Hz, HD-LINK light Support transmission distance up to 300m over coaxial cable 5V 1A Power Supply, power indicator light
Operating Temperature: -10°C~60°C / -14°F~140°F
Dimensions: 3.74 (L) x 2.83 (W) x 0.94 (H) inch

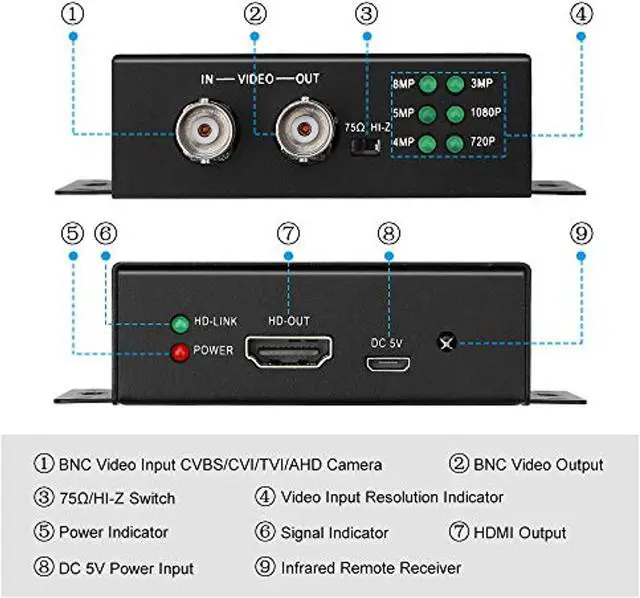

Note: There is a 75/ HI-Z switch. If you are using the BNC loop output (optional), this switch should be set to HI-Z. If you are only using the HDMI output (without the BNC loop), this should be set to the 75 setting. Using the loop output is optional. Some customers only want to view their camera live on a TV and don't require recording from a DVR. In this case, installers will only use the HDMI output to connect the HD-TVI camera to a TV.
Parameters: Supported HD-TVI Camera Resolutions and
Frame Rates: 720p @ 25/30/50/60 FPS 1080p @ 25/30 FPS 3 MP (2048 x 1536) @ 18/25/30 FPS 4 MP 2688 x 1520p @ 15 FP 4 MP 2560 x 1440p @ 12/25/30 FPS 5 MP 2592 x 1944p @ 12.5 /20 FPS 4K (8 MP) 3840 x 2160 @ 15 FPS Supported CVI 4MP, AHD 5MP Camera Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display TVI+CVBS to HDM, HDMI output
HDMI Output Resolution: 1080p 60Hz, HD-LINK light Support transmission distance up to 300m over coaxial cable 5V 1A Power Supply, power indicator light
Operating Temperature: -10°C~60°C / -14°F~140°F
Dimensions: 3.74 (L) x 2.83 (W) x 0.94 (H) inch
Note: There is a 75/ HI-Z switch. If you are using the BNC loop output (optional), this switch should be set to HI-Z. If you are only using the HDMI output (without the BNC loop), this should be set to the 75 setting. Using the loop output is optional. Some customers only want to view their camera live on a TV and don't require recording from a DVR. In this case, installers will only use the HDMI output to connect the HD-TVI camera to a TV.
