Industrial USB to RS485 Converter with Original FT232RL Embedded Protection Circuits Resettable Fuse, ESD Protection, and TVS Diode, etc

Overview

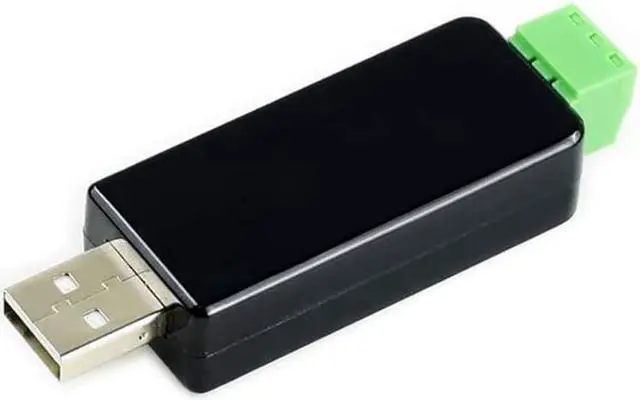

This is an industrial USB to RS485 converter with original FT232RL inside. It features embedded protection circuits such as
lightning-proof, resettable fuse, ESD protection, and TVS diode, etc. It's pretty small in size.

The USB TO RS485 is very easy to use, allows automatic transceiving. Due to its fast communication, stability, reliability, and
safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

Specifications

Product type: industrial converter
Baudrate: 300-921600bps
Host port: USB
Device port: RS485
USB:
--Operating voltage: 5V
--Connector: USB-A
--Protection: 200mA self-recovery fuse, ESD protection
--Transmission distance: about 5m
RS485:

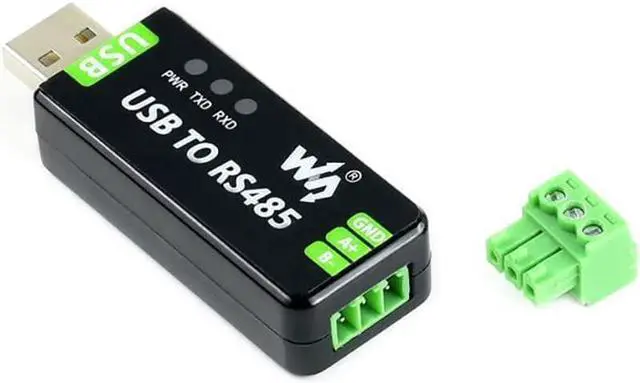

--Connector: screw terminal
--Pins: A+, B-, GND
--Direction control: hardware automatic control
--Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
--Transmission distance: about 1200m (low rate)
--Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

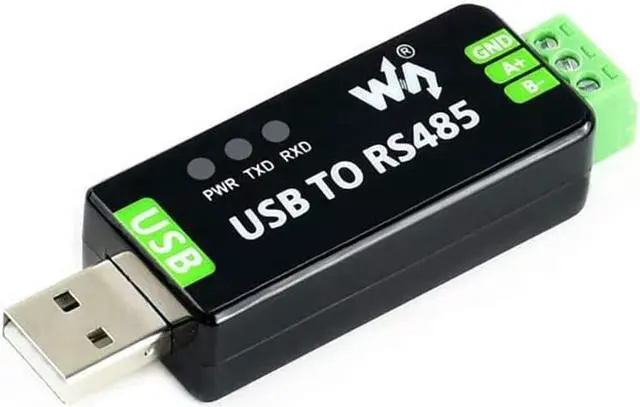

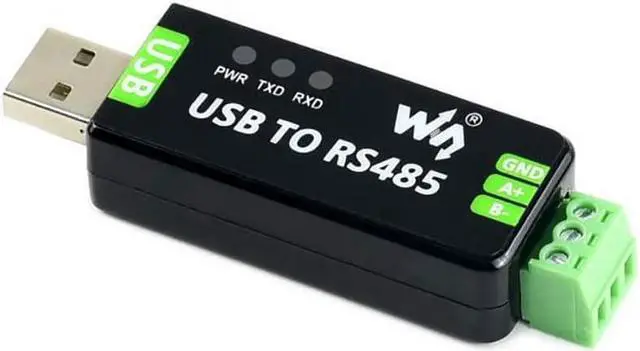

LED indicators:

--PWR: red power indicator, light up when there is USB connection and voltage is detected
--TXD: red TX indicator, light up when the USB port sends data
--RXD: red RX indicator, light up when the device ports send data back
Operating environment:
--Temperature: -15? ~ 70?
--Humidity: 5%RH ~ 95%RH
Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP


PACKAGE CONTENT

1. USB TO RS485 x1
2. USB-A male to female cable x1


3. Screwdriver x1
