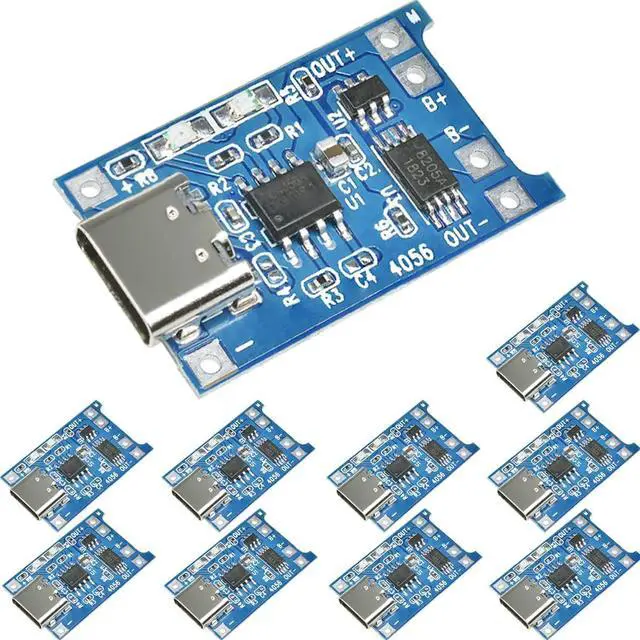

Vszerda 10PCS 1A High Current 18650 Lithium Battery Charging Board 5V Type-C USB Interface Input Charge Module with Double Protection
Limited time offer, ends 07/31 By Jinwen Electronics

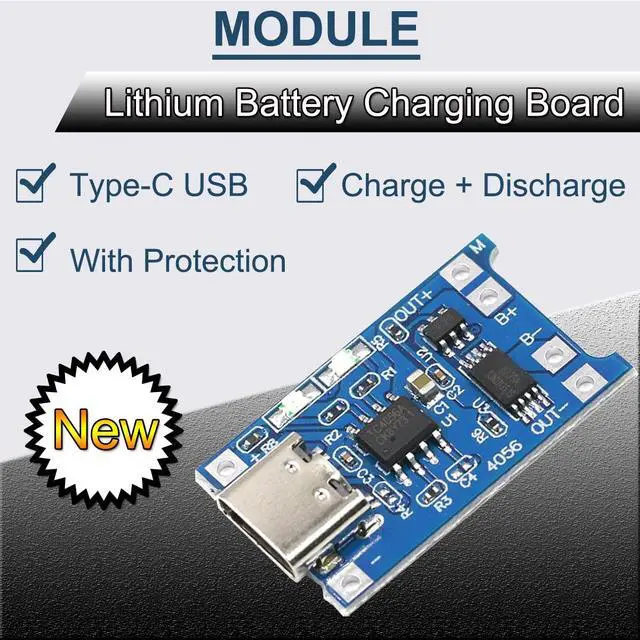

- Module: 1A lithium battery charging and protection integrated board 2-in-1 Type-C interface
- Parameters: Input voltage: 5V, charging cut-off voltage: 4.2V±1%, maximum charging current: 1000mA, battery over-discharge protection voltage: 2.5V, battery over-current protection current: 3A

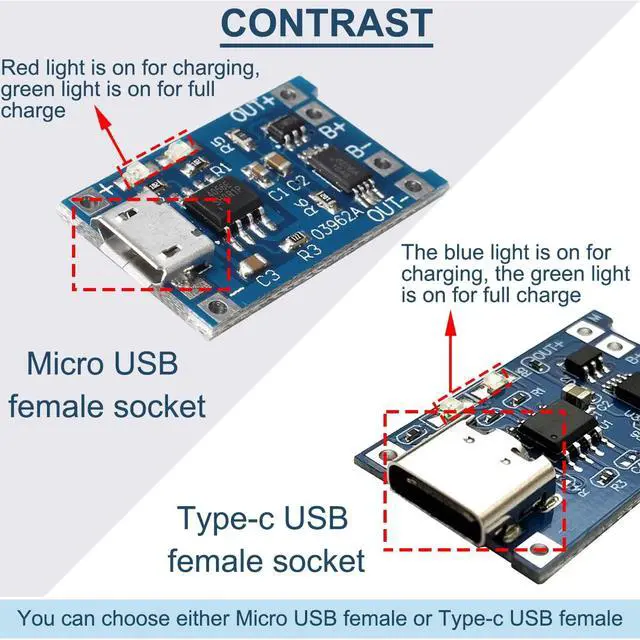

- Features: The input end is equipped with a Type-c USB socket, which can be directly used as an input to charge the lithium battery with a mobile phone charger, and the input voltage wiring solder joints are still reserved for easy DIY
- Notice: When the battery is connected for the first time, there may be no voltage output at the OUT terminal. It is necessary to connect 5V to the power input terminal to charge it and activate the protection circuit.When using a mobile phone charger for power supply, it must be able to output more than 1A, otherwise it may not be able to charge normally
- Package includes: You will get 10 x Lithium Battery Charging Board and the board size:28 X 17mm / 1.10 X 0.67in
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

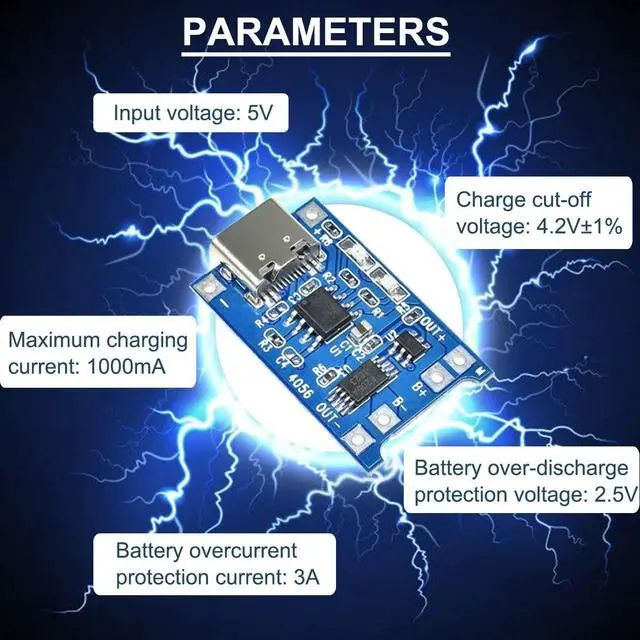

Parameters:
Input voltage: 5V
Charge cut-off voltage: 4.2V±1%
Maximum charging current: 1000mA
Battery over-discharge protection voltage: 2.5V
Battery overcurrent protection current: 3A

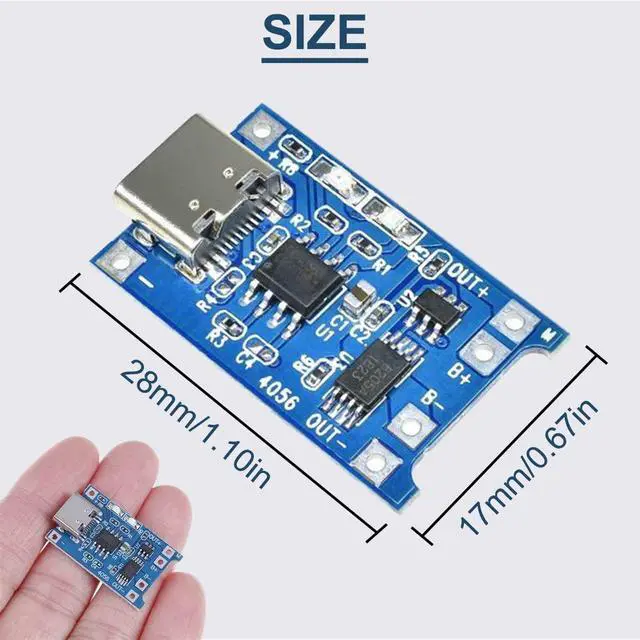

Board size: 28X17mm/1.10X0.67in
Instructions:
1. Note: When the battery is connected for the first time, there may be no voltage output between OUT+ and OUT-. At this time, the protection circuit can be activated by connecting the 5V voltage and charging it. The battery is short-circuited from B+ B- and then connected. It also needs to be charged to activate the protection circuit. When using a mobile phone charger as input, note that the charger must be able to output 1A or more, otherwise it may not be able to charge normally

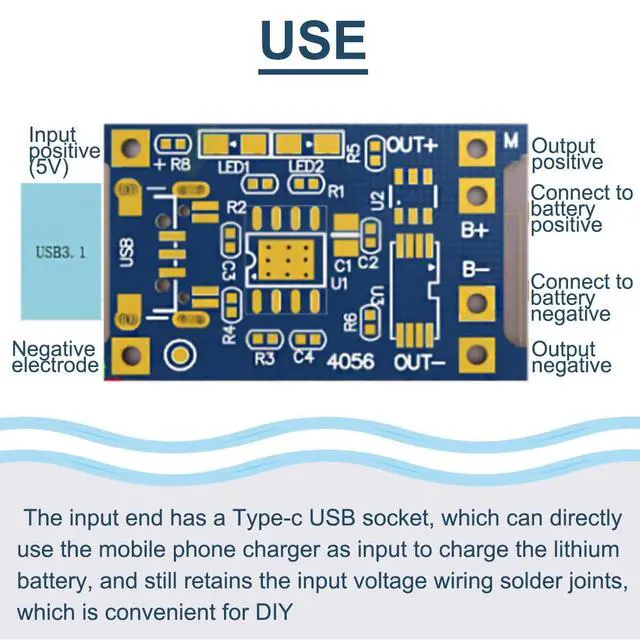

2. The USB female socket and the + - pads next to it are the power input terminals, which are connected to 5V voltage. B+ is connected to the positive electrode of the lithium battery, and B- is connected to the negative electrode of the lithium battery. OUT+ and OUT- are connected to the load, such as the positive and negative poles of the mobile booster board or other loads.
Package includes:
10 x Lithium Battery Charging Board(Type-C USB interface)
