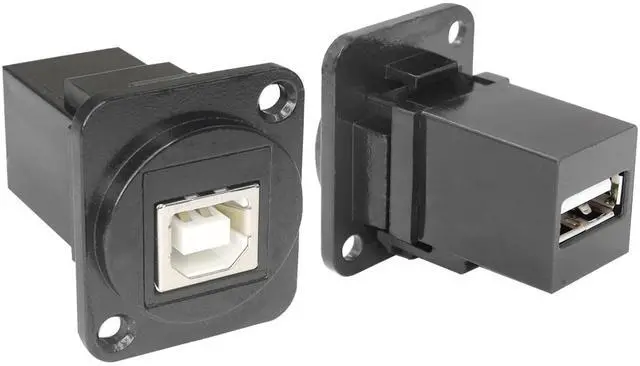

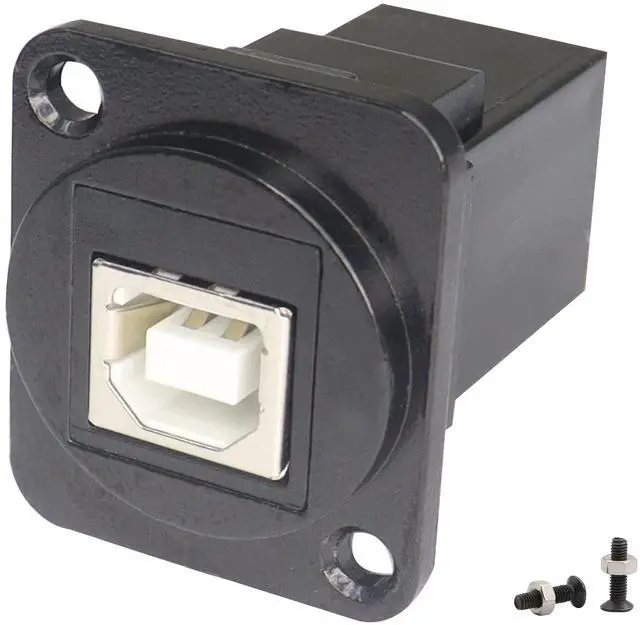

Vszerda USB B to A Panel Mount Connector, USB 2.0 Data Connector Solderless Socket, Female to Female Converter Data Transfer Connectors for Audio Video Optoelectronic Network, Black
Limited time offer, ends 02/03 By Jinwen Electronics

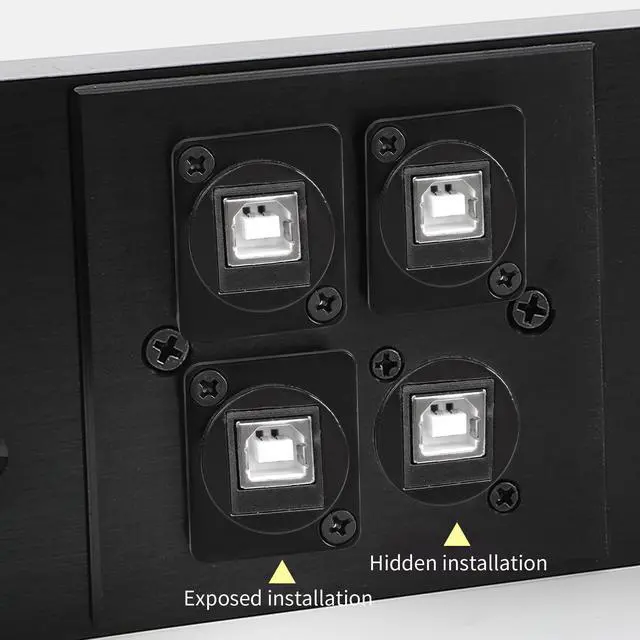

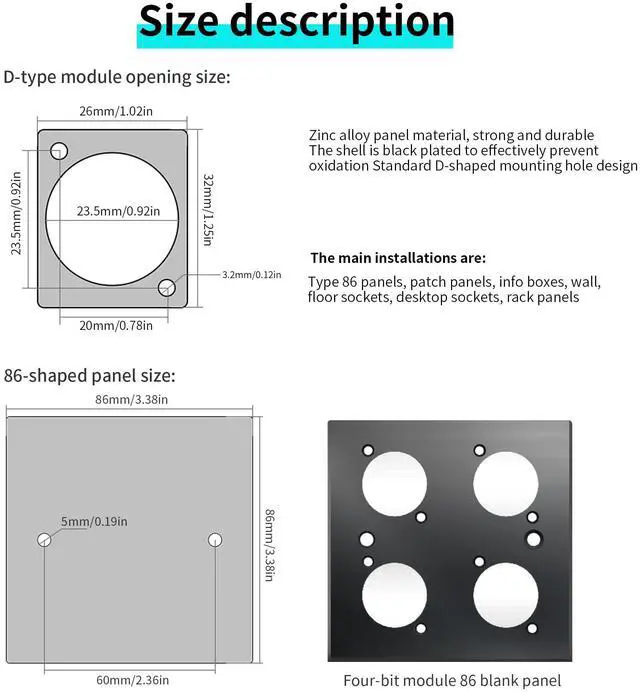

- [D-Type installation size]:The series of products adopts standard d-type installation size,it provides solid chassis protection to ensure durability and to meet special needs under some harsh conditions.
- [Reversible Adapter]:Reversible adapter type B to A.
- [Plug and Play]:Very easy to use,plug and play!Gold-plated interface with shielding fuction anti-interference.

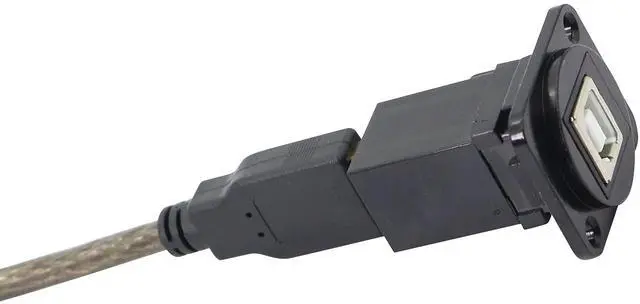

- [Suitable for Data Transmission]:Using this adapter, USB cable can be transferred to printer data cable, which can be used for extension of transfer.
- [Wide range of uses]: It can be installed in ground sockets, desktop sockets, and used for connection ports of cinemas, stages, home audio and video, KTV and various weak current engineering facilities.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
It is widely used in audio, video and photoelectric networks. Its base design is based on industrial standard panel apertures
Electrical parameters Contact resistance: <10M Dielectric strength: DC1kV Frequency range: 1-100MHz Insulation resistance:> 0.5G Rated current: 1.5A Rated voltage: 50V
Mechanical parameters Insertion pressure: 10 N Withdrawal pressure: 10 N Service life:> 1000 times Base shape: D type
Material Contact plating: 7µm Au over Ni plating Insulator: PBTP 15% GR Panel: Zinc diecast (ZnAl4Cu1)
Package : 1 x USB B to A data Connector Socket
