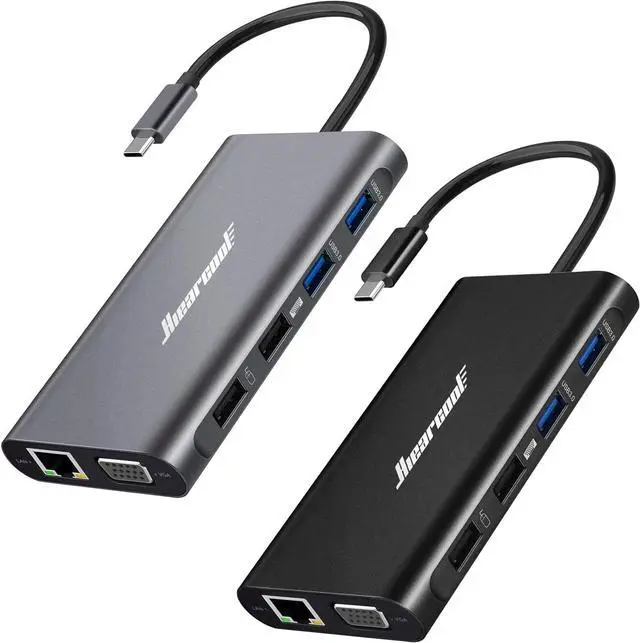

Hiearcool Docking Station, 11IN1 USB-C Laptop Docking Station-(Grey and Black)

Supports a Dual HDMI display up to 3840 x 2160@30Hz, or triple 1920 x 1080 displays @60Hz with VGA. (For Apple computer user (MAC OSmac os), displays are mirror mode only.)
DP Alt mode required: Display Port Alt Mode (DP Alt Mode) allows a USB-C equipped computer to connect directly to a display or monitor.
Ensure your Laptop has a type C Power delivery port (USB 3.1 Type-C (Gen2)) or Thunderbolt 3 port (supports PD charging) before purchase.

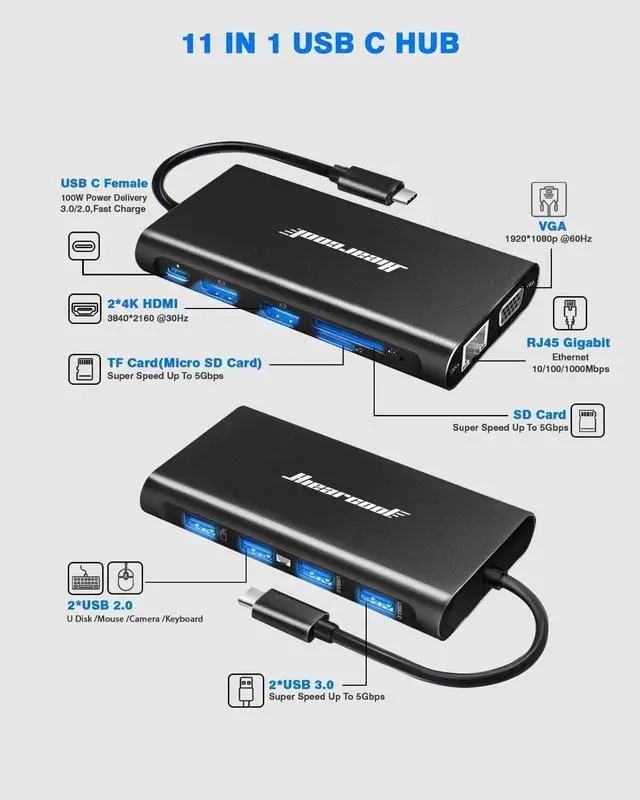

2 x USB 3.0 ports for accessories (an external hard drive or USB peripherals etc.,)
2 x USB 2.0 ports (great for wireless devices: keyboard and printers etc.,)
A laptop's wall adapter to the USB-C Power Delivery port is needed before connecting to any external hard drive or various devices' purpose.
The Type C PD Charging port for power passing-thru only. SD and the TF card cannot use at the same time.
An RJ-45 Gigabit Ethernet network port (supports 10/100/1000 Ethernet)
Set up for Macbook:
System Preferences Network Click Add(+) to set up a service selecting USB 10 / 100 / 1000 LAN to create an application Click the application to connect.

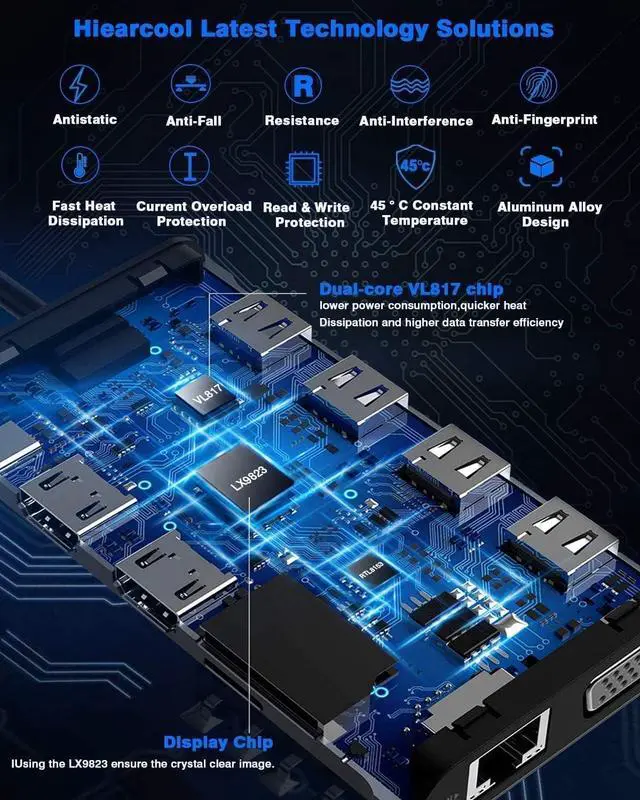

Equipped with VL817 Chip preventing overload, over-voltage, over-current, short circuit, overcharge, voltage regulation, and temperature control under 45.
Power will be a community between all dock-connected USB C devices. For a fast charge result, please choose over 72W Adapter to charge it.




Hiearcool Laptop Docking station is compatible for specific Thunderbolt 3, Type C Gen2 or USB-C Windows systems.
The USB C ports on the Laptop are looking the same, but it has several critical differences between Thunderbolt 3, USB-C 3.1 Gen 2, and USB-C 3.1 Gen 1.
The difference between the three technologies is bandwidth.

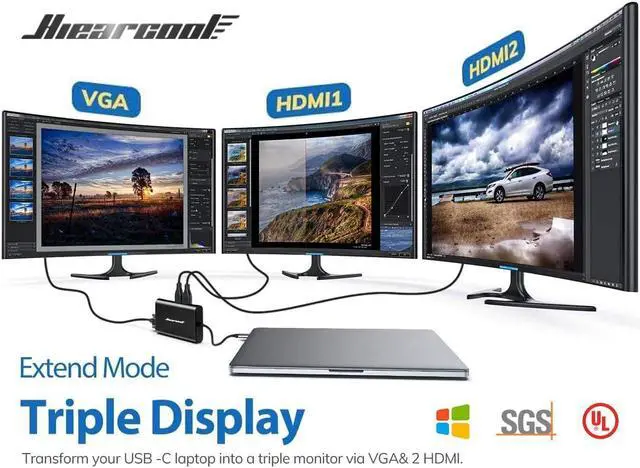

Support Dual or Triple Display:
Thunderbolt 3: 40Gb/s
USB-C 3.1 Gen 2: 10Gb/s
USB-C 3.1 Gen 1 (Support Power Delivery)
DOES NOT SUPPORT USB C DISPLAY OUTPUT:
× USB-C 3.1 Gen 1: 5Gb/s (data transfer only)
Please ensure the Laptop has thunderbolt 3 / USB-C 3.1 Gen 2 /USB-C 3.1 Gen 1 (Support Power Delivery) to support multi-display before purchase.
Hiearcool USB C Docking Station Compatibility List(Partial):
Such as the Microsoft Surface Book 2, Surface Go, Dell XPS 9350 / 9360 / 9370 / 9380 /9550 / 9560, Lenovo Yoga 720 13" & Carbon X1 5th/6th Gen, most 13" HP Spectre x360 models, MSI GS65 /GS75 etc.,(Type C Wall adapter required for the Power Delivery)
Incompatible for Acer all series, iPad Pro 2018, Apple USB SuperDrive, Surface Book 3, and Nintendo Switch.
REMINDER
1. For Apple computer users (MAC OS), displays are Mirror mode only.
2. Please plug in the Laptop's power adapter to the USB-C Power Delivery port before connecting an external hard drive or various display purpose.
3. The Type C PD Charging port for power passing-thru only.
4. SD and the TF card cannot use at the same time.
5. Each monitor will be limited to a maximum resolution of 1920 x 1080@60Hz when connecting a dual or triple monitor.
6. Power will be a community between all dock-connected USB C devices. For a fast charge result, please choose Adapter that is over 72W to charge.
7.EDID(Extended Display Identification Data) may blackout for a few seconds(1 minute at max, depends on Laptop and monitor) when data transfer; Please be patient wait for the data completed.
