Notice:
1. Since the dock itself requiresabout 35W power supply, in order to make the device work more stably, itis recommended to use cables and adapters that support more than 120Wwhen using a notebook.
2. The PD charger needs to be purchased separately.

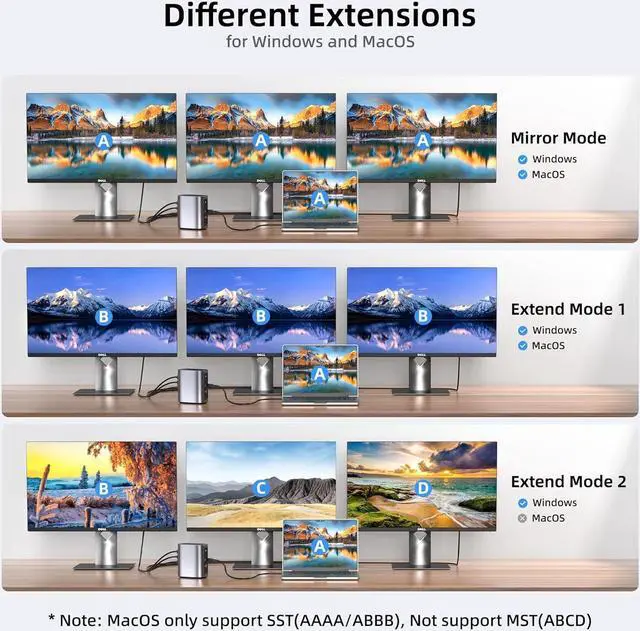

MST (Multi Stream Transport) function, that is, the description of multi-screen display:
Laptops with Windows system can use the MST (Multi Stream Transport)function through this docking station, that is, multiple screens withdifferent displays.

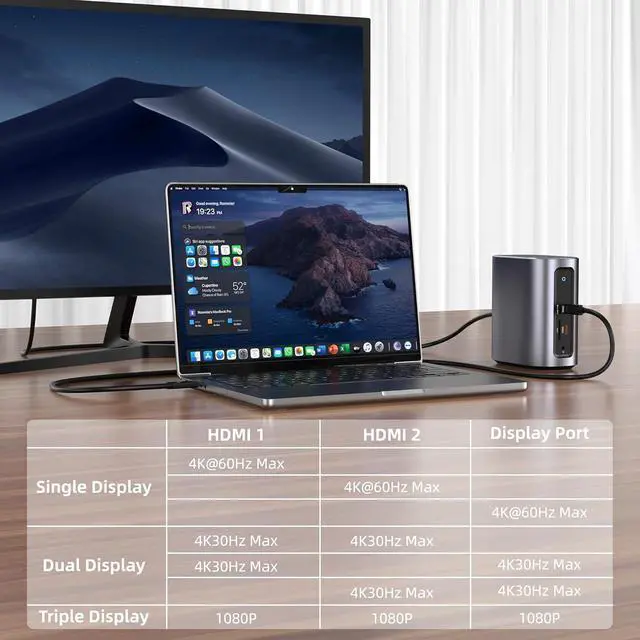

Maximum Resolution:
The maximum resolution output by the docking station depends on whether the USB-C interface of the laptop supports DisplayPort 1.2, DisplayPort 1.4 or DisplayPort 1.4 with DSC (Display Stream Compression) function.
If the video cannot be extended to an external display:
please check whether the USB-C port of the laptop computer supports DP Alt-Mode. If the USB-C interface compatible with Thunderbolt 3 or Thunderbolt 4, then the interface is also compatible with DP Alt-Mode.
Previous pageNext page

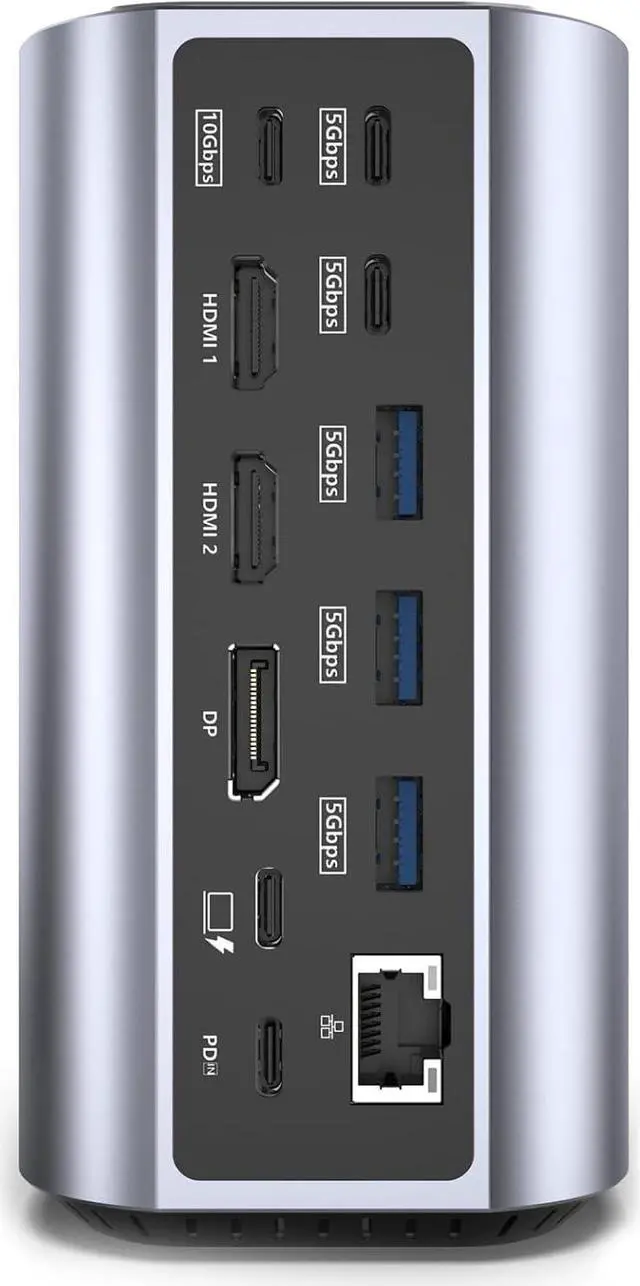

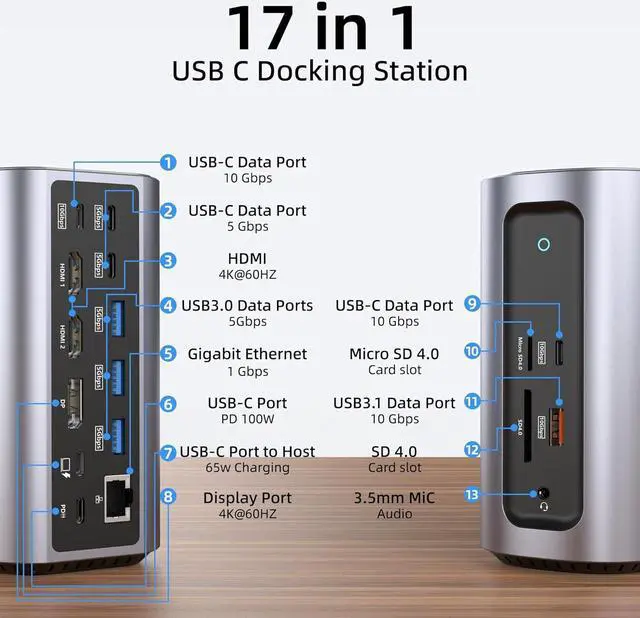

HDMI 1 Interface Resolution4K@60Hz DP 1.4HDM1 2 Interface Resolution4K@60Hz DP 1.4DP Interface Resolution4K@60Hz2 * USB-C Data Transfer Speed10Gbps2 * USB-C Data Transfer Speed5Gbps3 * USB3.0 Data Transfer Speed5GbpsUSB 3.1 Data Transfer Speed10GbpsUSB-C 3.2 Gen2 for HOSTConnect to host device,Offers 65W chargingUSB-C PD Fast Charge100W65W is for the main control interface, and 35W is for the docking station itself.)RJ45 Network Transmission1000MbpsSD / Micro SD 4.0Max up to 400MB/s3.5mm AudioAudio and Microphone
