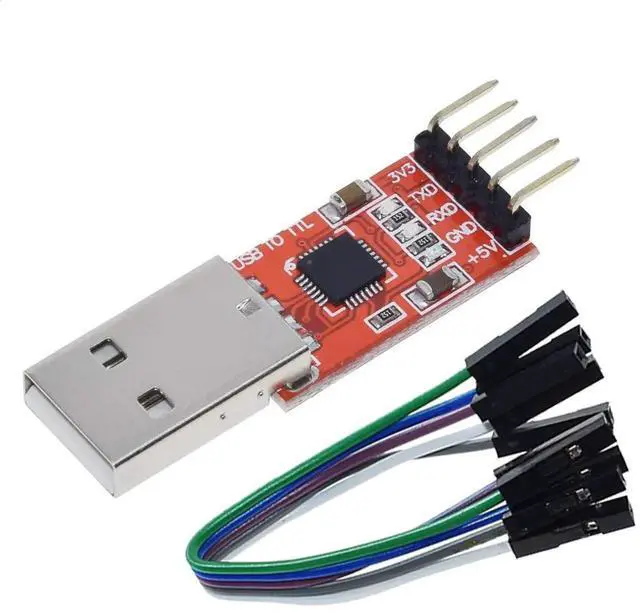

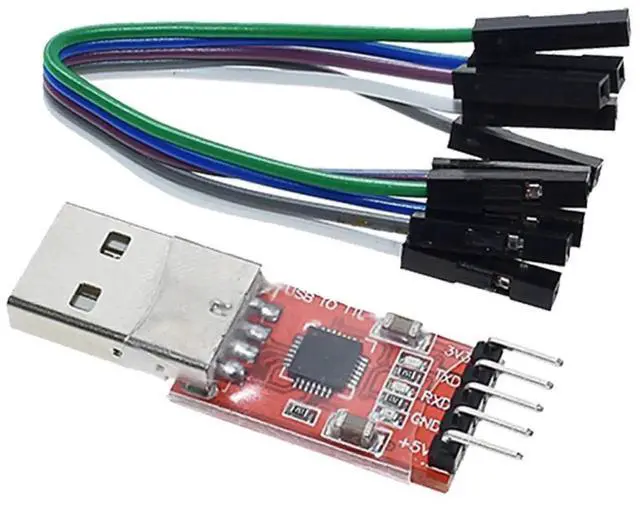

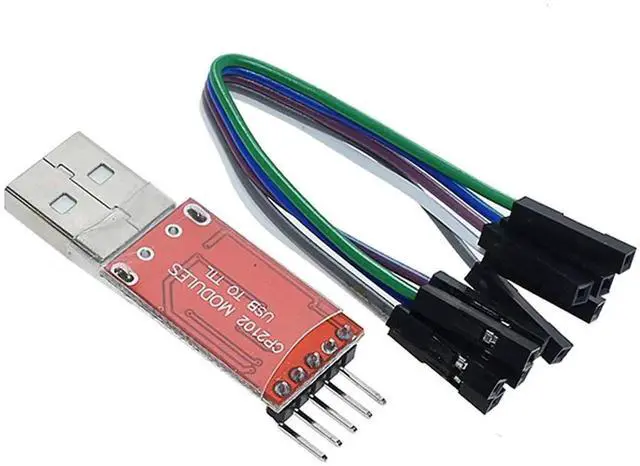

CP2102 USB 2.0 to TTL Module Serial Converter Adapter Module USB to TTL Downloader with Jumper Wires
- Stable and reliable chipset CP2102
- Baud rates: 300 bps to 1.5 Mbps
- Connect MCU easily to your computer!
- Standard USB type A male and TTL 5pin connector. 5pins for 3.3V, RST, TXD, RXD, GND & 5V
- Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CP2102 USB 2.0 to TTL Module Serial Converter With Free cable
Description:
1. This is a USB 2.0 to TTL UART 6PIN CP2102 Module Serial Converter. Connect MCU easily to your computer!
2. Stable and reliable chipset CP2102
3. USB specification 2.0 compliant with full-speed 12Mbps.
4. Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
5. All handshaking and modem interface signals.
6. Baud rates: 300 bps to 1.5 Mbps.
7. Byte receive buffer; 640 byte transmit buffer.
8. Hardware or X-On/X-Off handshaking supported.
9. Event character support Line break transmission.
10. USB suspend states supported via SUSPEND pins.
11. Temperature Range: -40 to +85.
12. Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
Note:
Please install the following driver to work in Win 10.
https://www.silabs.com/documents/public/software/CP210x_Universal_Windows_Driver.zip
