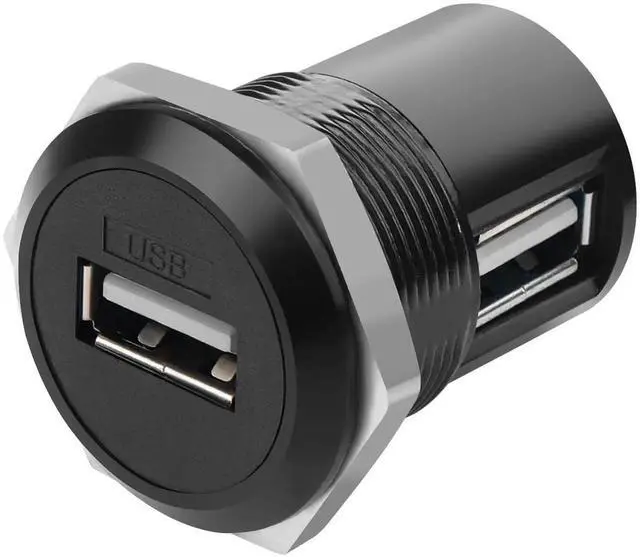

JAENFONG USB2.0 90 Angle Adapter, Female to Female, Panel Mount, Right Angle, Round Connector, Data Transfer, 5V 1A Charging

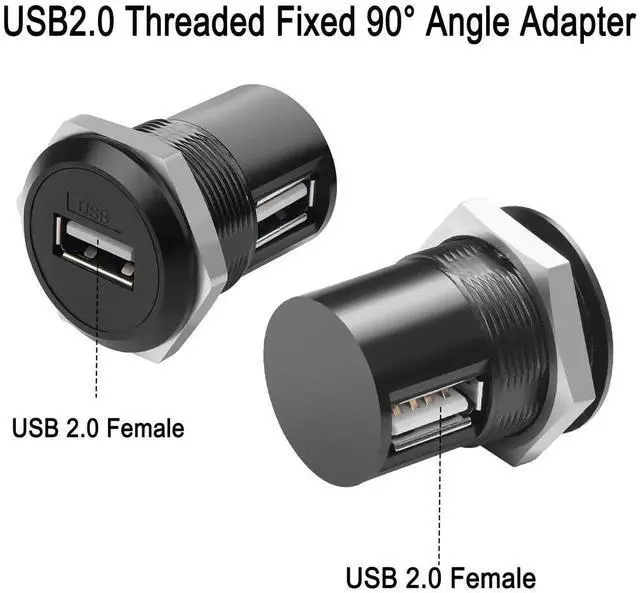

- [Side Bend Angle]90 degree angle USB female to female threaded fixed mount round connector, 90° side bend corner design at the rear end, saves installation space and facilitates wiring in tight locations.

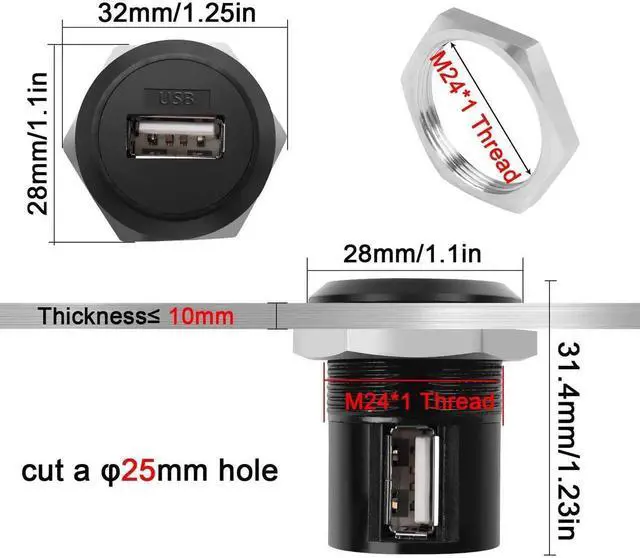

- [Nut Fixed Installation]90 degree angle USB2.0 threaded fixed round adapter mounting socket, equipped with M24×1 hexagonal nut, only need to make a 25mm hole, can be fixed by the nut mounted on the surface of the board. Note: Mounting board thickness 10mm.
- [Data Transfer and Charging]USB2.0 female to female panel mount 90 degree angle round adapter supports 480Mbps data transfer speed and 5V/1A charging.

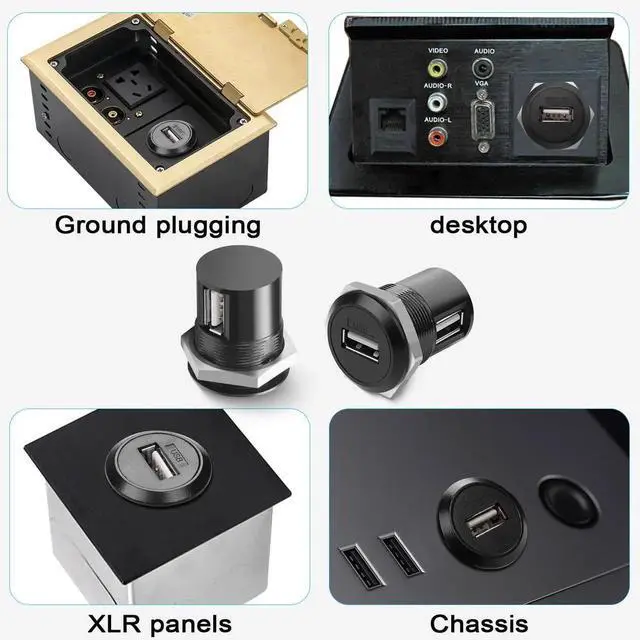

- [Application]USB2.0 female to female threaded fixed 90 degree angle connector mounted socket for data transfer and charging between computers, cell phones, digital cameras, storage devices, audio devices, video devices, and can also be used to connect peripheral devices such as printers, keyboards, and mice.
- [Ruggedized]USB2.0 Female to Female Threaded Fixed Mount 90 Degree Angle Side Bend Adapter is a reinforced and easy-to-install USB connection system with zinc alloy shell, ruggedized and durable.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
USB2.0 Female to Female Threaded Panel Mount 90 Degree Angle Round connector. Rear 90° side bend corner design saves installation space and facilitates wiring in tight locations. Equipped with M24×1 hexagonal nut, only need to cut a 25mm hole, can be fixed and mounted on the panel through the nut. It is used for data transmission and charging between computers, cell phones, digital cameras, storage devices, audio devices, video devices, and can also be used to connect peripheral devices such as printers, keyboards, and mice. It is a reinforced and easy-to-install USB connection system with zinc alloy housing for durability.
Input: USB2.0 female
Output: USB2.0 female
Transmission Speed: 480Mbps
Charging power: 5V/1A
Design: Threaded fixed mounting, 90 degree side bending
Thread specification: M24*1
Mounting plate thickness: 10mm (0.39in)
Mounting hole diameter: 25mm (0.98in)
Housing:Zinc alloy
Color: black
Package: 1*USB2.0 thread fixed 90 degree angle side bend mounting socket.
1*M24 hexagonal nut
