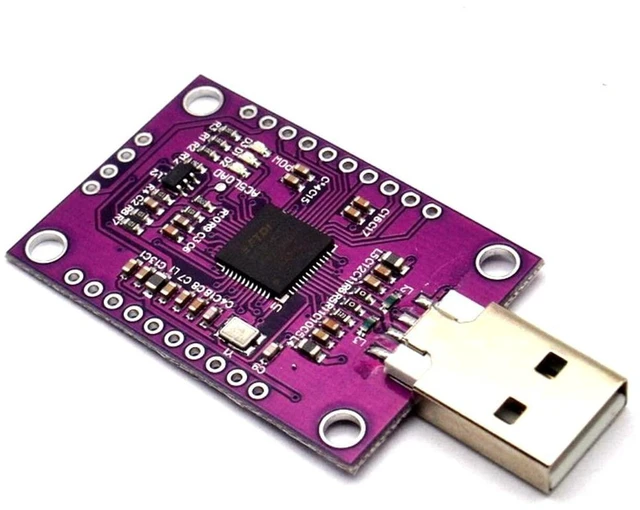

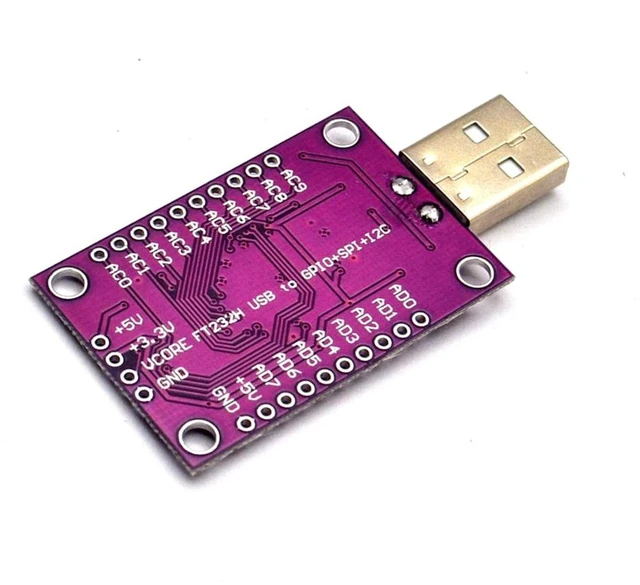

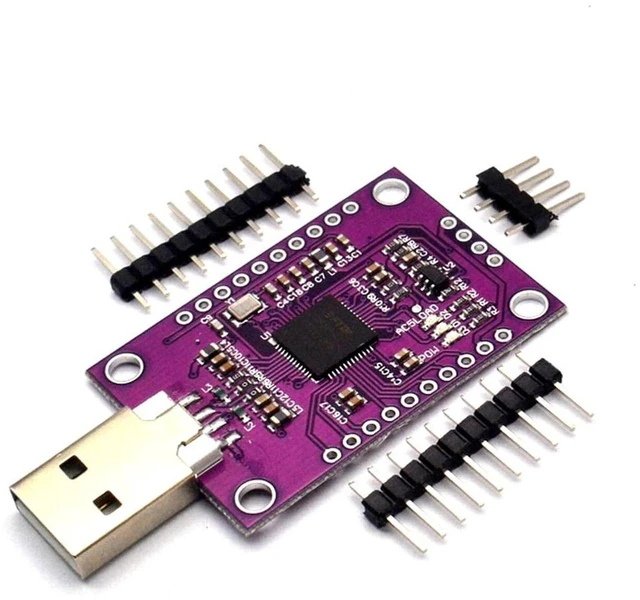

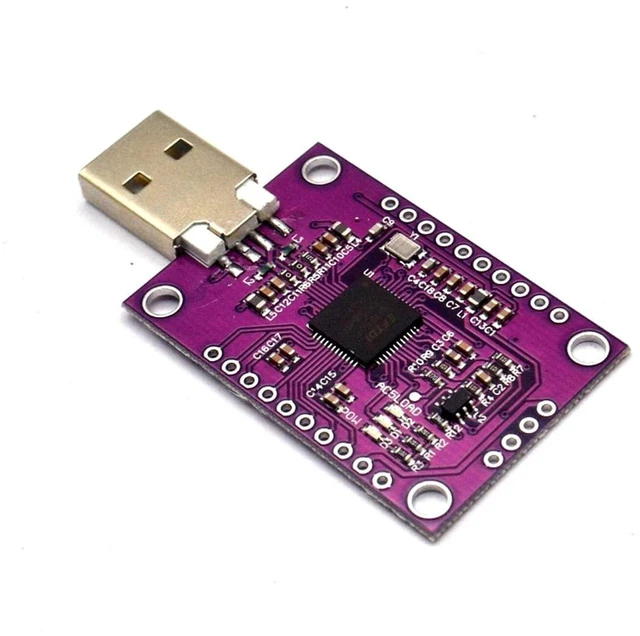

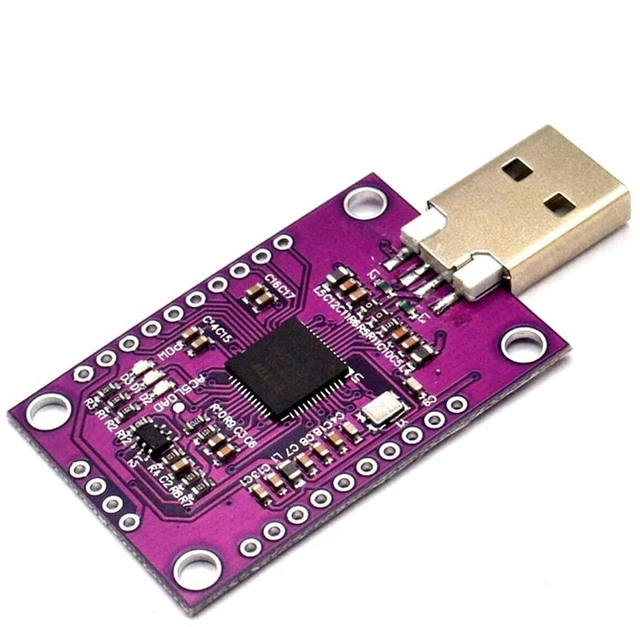

AJMRTC FT232H High Speed Multifunction USB Adapter Module, USB 2.0 Hi-Speed to JTAG UART FIFO SPI I2C Bit-Bang Converter, MPSSE Debug Board for FPGA MCU Program and Test
- - Built with FT232H chip, USB 2.0 Hi-Speed 480Mbps, MPSSE multi-protocol synchronous serial engine
- - Supports JTAG, UART, FIFO, SPI, I2C, FT1248 and Bit-Bang GPIO modes for flexible development
- - UART up to 12M baud, sync FIFO max 40MB/s, high throughput for data capture and debugging
- - 3.3V logic I/O, 5V tolerant pins, onboard LDO regulator supplies 3.3V and 1.8V power
- - Wide OS support with VCP and D2XX drivers, works for FPGA, ARM, MCU flashing and hardware test
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC FT232H multifunction interface module is a high-speed USB bridge based on FTDI FT232H controller. It adopts MPSSE engine to implement multiple communication protocols including JTAG, SPI, I2C, UART and parallel FIFO, also supports Bit-Bang GPIO simulation. USB 2.0 Hi-Speed 480Mbps bandwidth delivers fast data transmission for firmware download, boundary scan and signal capture. The I/O is 3.3V level with 5V tolerance, safe to connect to most logic boards. It comes with official VCP and D2XX drivers for Windows, macOS and Linux. Widely used for FPGA debugging, JTAG programming, embedded MCU testing and custom protocol communication projects.
Specifications
- Brand: AJMRTC
- Chip: FT232H
- USB Standard: USB 2.0 Hi-Speed, 480Mbps
- Supported Protocol: JTAG, UART, FIFO, SPI, I2C, FT1248, Bit-Bang GPIO
- Max UART Baud Rate: 12Mbaud
- Max Sync FIFO Speed: 40MB/s
- I/O Logic Level: 3.3V, 5V tolerant
- Onboard Regulator: 5V input to 3.3V / 1.8V
- Driver: VCP Virtual COM Port & D2XX driver
- Compatible OS: Windows, macOS, Linux
- Application: FPGA debug, JTAG programming, embedded test, data acquisition
- Package Content: 1 × FT232H Multifunction Adapter Module
