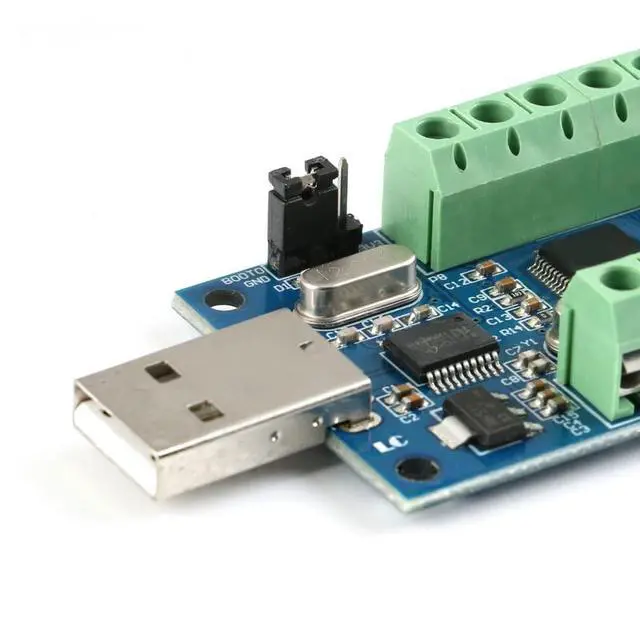

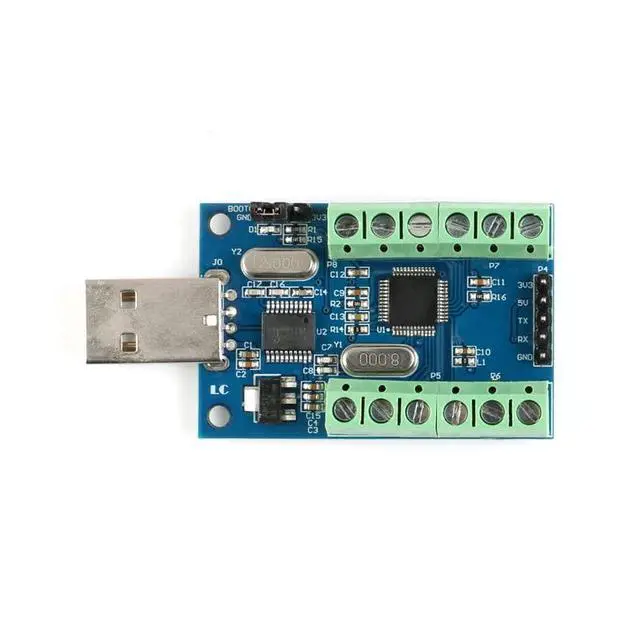

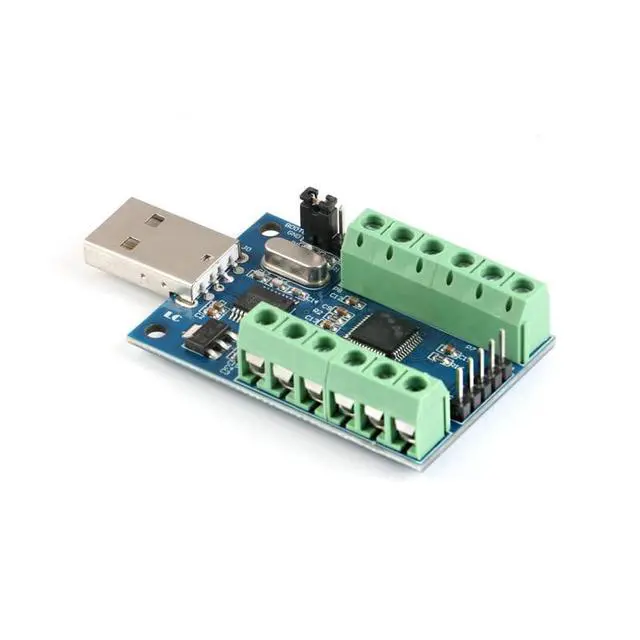

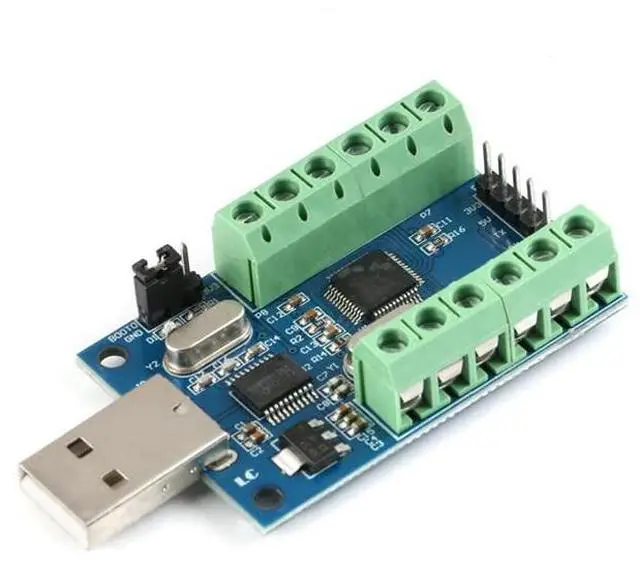

10-Channel ADC Data Acquisition Module 12Bit AD Sampling Module STM32F103C6T6 Analog Digital USB Interface STM32 UART Communication Analog Digital Module

Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.

Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. Onboard STM32F103C6T6 main control chip The onboard CH340 serial port is converted to USB chip, which is convenient to view AD sampling results on PC through JSBD UART serial communication interface is reserved, which can be connected to MCU
Analog input channel: 10 channel single-ended input
Sampling voltage input range: 0- 3.3V;
Power supply voltage: 5V/ 3.3V, Resolution: 12 Bit (4096) The internal 10 AD (resources are used as the sampling core, and the obtained sampling data are transferred to the memory through the internal DMA of S TM32, which reduces the CPU burden and enhances the stability and accuracy of AD sampling. At the same time, the onboard JSB serial port chip can transmit the data to the upper computer. ADS1115 16 Bit 4 Channel I2C Analog-to-Digital ADC Conv...
