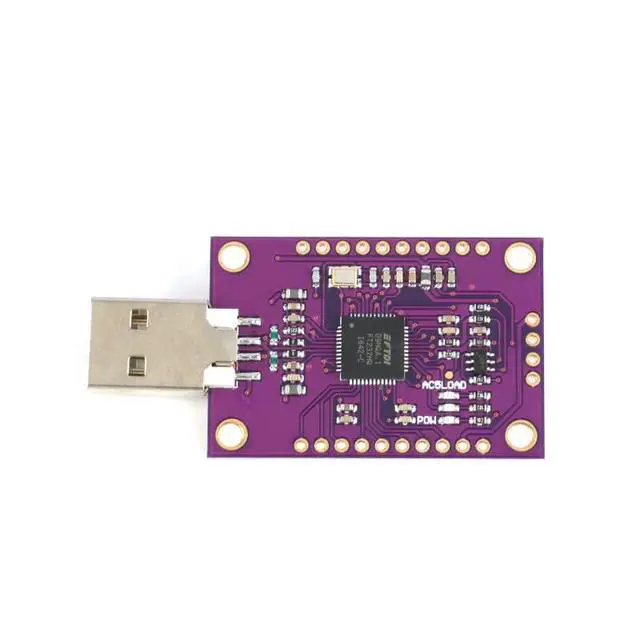

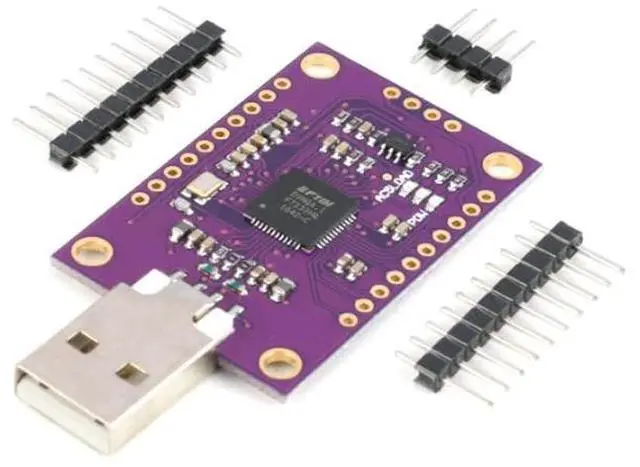

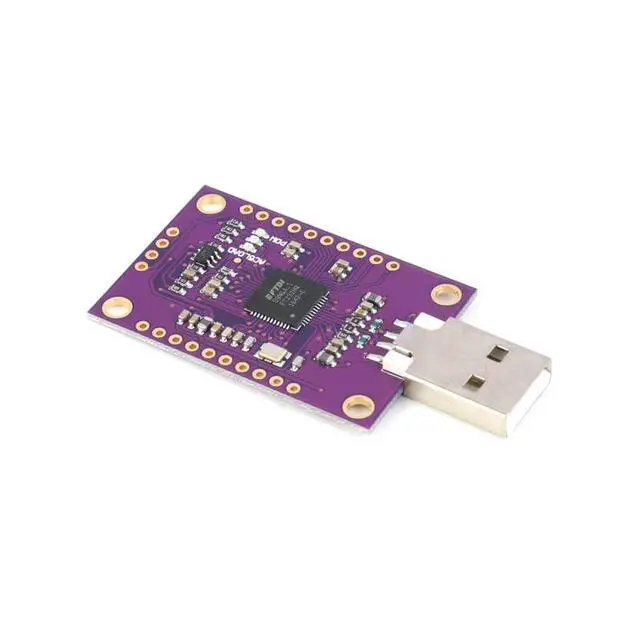

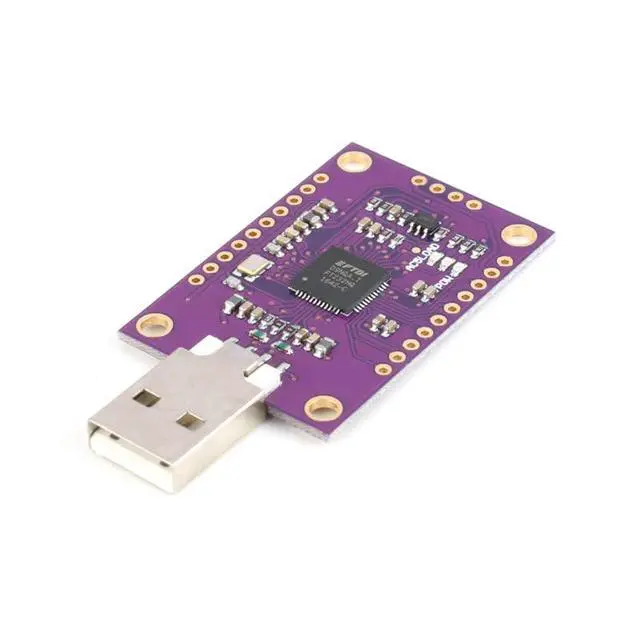

1Pc FT232H USB to JTAG UART FIFO SPI I2C Serial Adapter Board Module
- Multi-Interface FT232H USB Module: This FT232H module supports USB to UART, JTAG, SPI, I2C, FIFO, FT1248, and Bit-Bang interfaces, making it a versatile high-speed USB-to-serial module for embedded development, debugging, programming, and data communication projects.; USB 2.0 High-Speed Performance: Compatible with USB 2.0 High-Speed 480 Mbps and Full-Speed 12 Mbps, the module supports USB bulk data transfer with 512-byte packets in high-speed mode, helping provide reliable and efficient communication for demanding applications.; High-Speed UART and FIFO Modes: The UART interface supports data transfer rates up to 12 megabaud, with configurable data bits, stop bits, and parity settings. It also supports asynchronous 245 FIFO modes with transfer rates up to 8 MB/s or up to 40 MB/s in parallel FIFO mode.; 3.3V5V Operation with Temperature Range: Designed for 3.3V5V operation, the module features +3.3V I/O interfaces with +5V tolerance and operates across a wide temperature range of 40°C to 85°C, suitable for industrial control, instruments, and embedded hardware applications.; Flexible Configuration for Development Use: Supports TXDEN automatic transmit enable control for RS485 serial applications, external EEPROM configuration storage, configurable I/O drive current, hardware or software handshaking, and optional LED drive signals for transmission and reception monitoring.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
FT232H USB to JTAG UART FIFO SPI I2C Module, High-Speed USB to Serial Converter Board, USB 2.0 480Mbps Multi-Interface Adapter for UART, FIFO, FT1248, Bit-Bang, MCU, FPGA and Embedded Development
Product
I2C Module Main Chip: FT232H
Module Type: High-speed USB-to-serial / multi-interface converter module
Operating Voltage: 3.3V 5V
Operating Temperature Range: -40°C to +85°C
USB Standard: USB 2.0 High-Speed 480 Mbps / Full-Speed 12 Mbps Host
Controller Compatibility: UHCI / OHCI / EHCI
Core Voltage: + 1.8V chip core I/O
Interface Voltage: + 3.3V I/O with +5V tolerance
USB Power Modes: Bus-powered, self-powered, high-power bus-powered
Configuration Storage: External EEPROM via USB interface
FT1248 Interface: Half-duplex bidirectional bus, 1/2/4/8-bit configurable width
Indicator Support: Optional LED drive signals for TX/RX activity
Product
Specifications
Product Name: FT232H USB to JTAG / UART / FIFO / SPI /I2C Module Main Chip: FT232H
Module Type: High-speed USB-to-serial / multi-interface converter module
Operating Voltage: 3.3V 5V
Operating Temperature Range: -40°C to +85°C
USB Standard: USB 2.0 High-Speed 480 Mbps / Full-Speed 12 Mbps Host
Controller Compatibility: UHCI / OHCI / EHCI
Core Voltage: + 1.8V chip core I/O
Interface Voltage: + 3.3V I/O with +5V tolerance
USB Power Modes: Bus-powered, self-powered, high-power bus-powered
Configuration Storage: External EEPROM via USB interface
FT1248 Interface: Half-duplex bidirectional bus, 1/2/4/8-bit configurable width
Indicator Support: Optional LED drive signals for TX/RX activity
