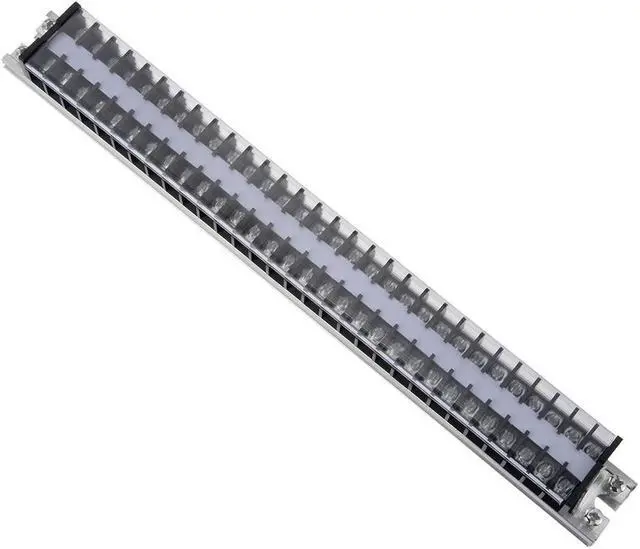

Barrier Terminal Strip Block 660V 15A Dual Row 30P DIN Rail Base Screw Connector
- Removable clear plastic insulating cover prevents accidental contact the terminals.
- Each pair of terminals is insulated from the next, prevent circuit in disorder.
- Used for
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Discriptions:

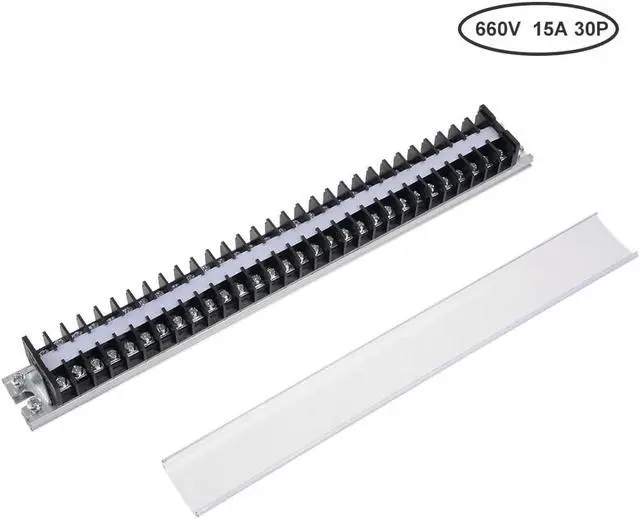

1. Double rows and with removable clear plastic insulating cover.
2. Each pair of terminals is insulated from the next, prevent circuit in disorder.
3. The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
4. Used for wires connecting of home appliances, electronic circuits, machines, etc.
5. One mounting hole each end for fixed mounting, easy to install.
Specifications:
Product Name: 30 Positions Barrier Terminal Block
Maximum Rated Voltage: 660V
Maximum Rated Current: 15A
Poles: 30 Positions (Dual Row)

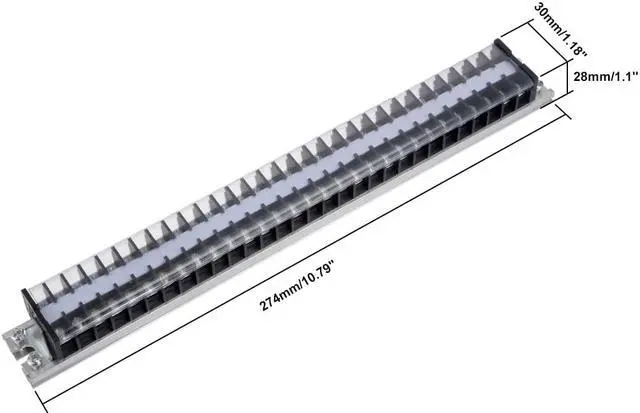

Size: 10.79 inch(L) x 1.18 inch(W) x 1.1 inch(H)
Each Screw Terminal Width: 7mm / 0.28 inch
Rail Width: 25mm / 0.98 inch
Colour: Black
Weight: 162g
Package Inculde:
1 x Barrier Terminal Block
1. Double rows and with removable clear plastic insulating cover.
2. Each pair of terminals is insulated from the next, prevent circuit in disorder.
3. The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
4. Used for wires connecting of home appliances, electronic circuits, machines, etc.
5. One mounting hole each end for fixed mounting, easy to install.
Specifications:
Product Name: 30 Positions Barrier Terminal Block
Maximum Rated Voltage: 660V
Maximum Rated Current: 15A
Poles: 30 Positions (Dual Row)
Size: 10.79 inch(L) x 1.18 inch(W) x 1.1 inch(H)
Each Screw Terminal Width: 7mm / 0.28 inch
Rail Width: 25mm / 0.98 inch
Colour: Black
Weight: 162g
Package Inculde:
1 x Barrier Terminal Block
