10mm 4P LED Strip Connector Solderless for 5050 3528 RGB 4 Conductor Multicolor Strip Lights Strip to Strip 5Pcs

Description:

1.These connectors for RGB multi-color Non-Waterproof light strips.

2.You can attach it with your light strips directly without any tools or wielding operations.

3.LED Light Strip Connector better than the corner connectors because you do not waste space with the wires that connect them, the two strips literally join together right at this connector.

4.Endless Possibilities. Use it on cabinets, toe-kicks, shelving or displays - in kitchens, bedrooms, living rooms or anywhere else.

KEY_TAB

Specification:

Product Name: 5050 3528 LED Strip Connector

Material: Plastic

Type: 4P Connector

Fit for: 10mm 5050 3528 RGB LED Strip Connector

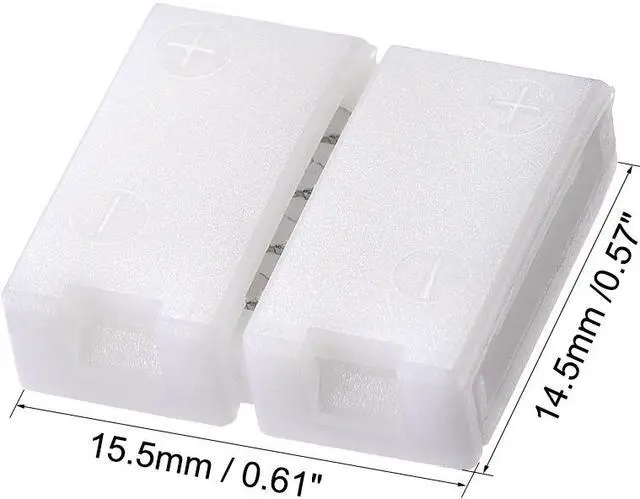

Size: 15.5 x 14.5 x 5mm / 0.61-inch x 0.57-inch x 0.2-inch (L*W*H)

Color: White

Weight: 6g

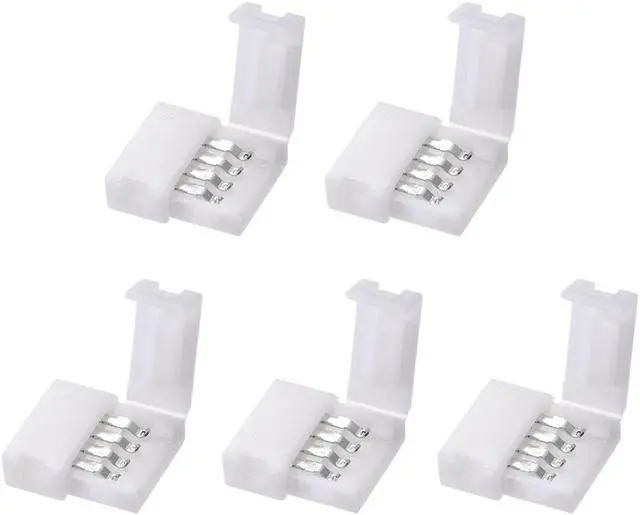

Package Content: 5 Pcs x 5050 3528 LED Strip Connector Non-Waterproof

KEY_TAB

Installation Instructions:

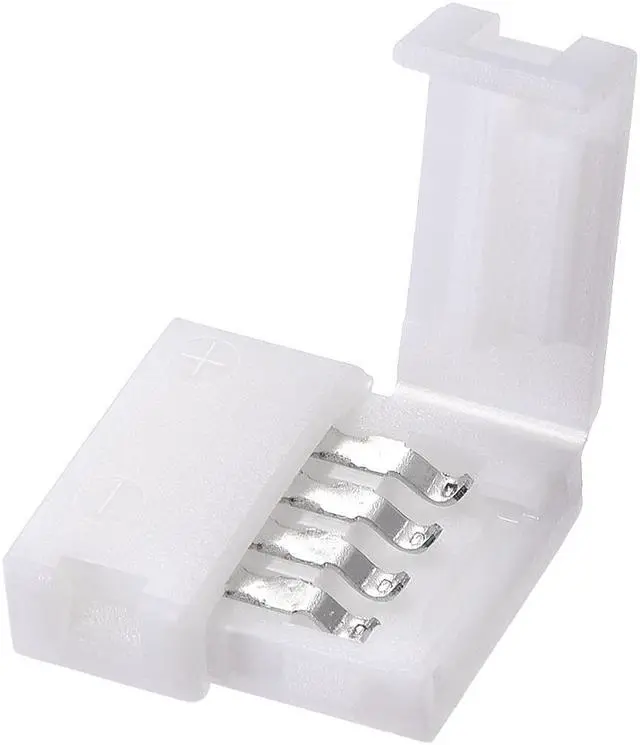

1.Open the clip on the side

2.Slid the LED light strip inside the clip underneath the two contact prongs

3.Make sure the side of the strip aligns with the "+ -" polarity

4.Close the wire clip

KEY_TAB

Installation Tips:

1.MAKE SURE you put the led strip under the poles and not on top.

2.Also be sure to cut along the suggested line evenly so there is room for a proper connection on each side.
