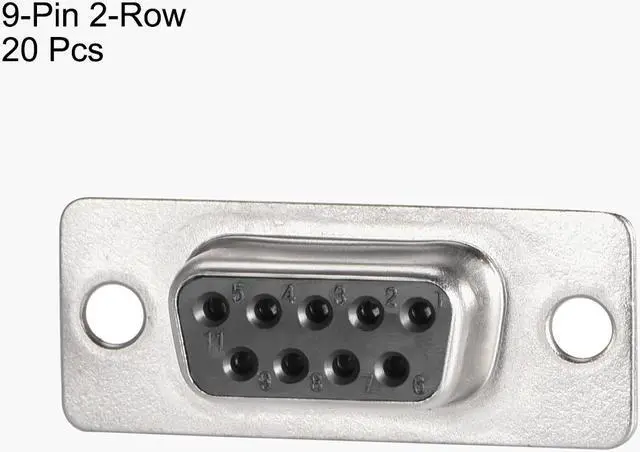

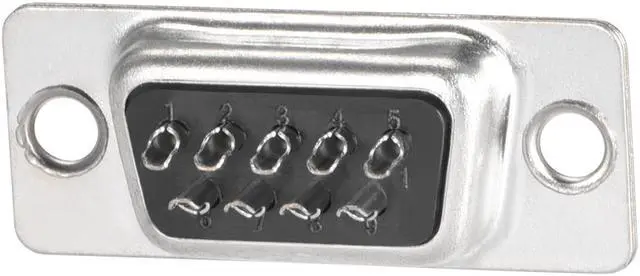

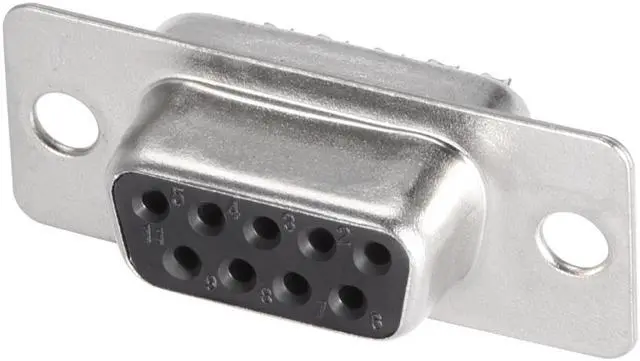

D-sub Connector DB9 Female Socket 9-pin 2-row Port Terminal Breakout for Mechanical Equipment CNC Computers Black Pack of 20
- Connector Type: Socket(Female); Rating Current: 5A.Number of Positions: 9; Number of Rows: 2;Termination Style: Solder Cup; Mounting Angle: Straight ; Overall Size: 30.8*12.5*15mm(L*W*H).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.
Product Name: Female D-sub Connector
Connector Type: Socket (Female)
Contact Material: Copper Alloy
Number of Positions: 9
Number of Rows: 2
Rating Current: 5A
Mounting Type: Panel Mount
Termination Style: Solder Cup
Mounting Angle: Straight

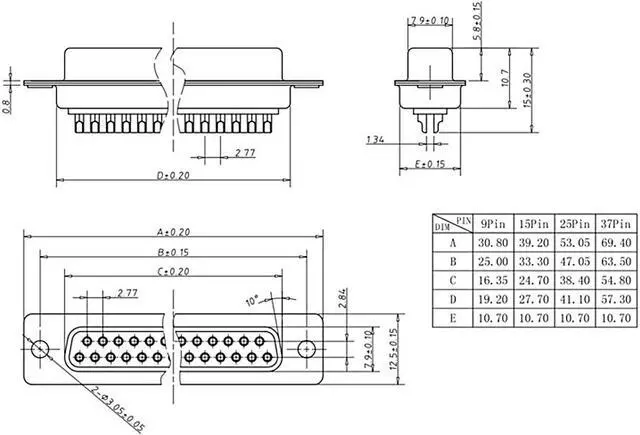

Pin Diatance: 2.84 mm
Mounting Diameter: 3.05 mm
Mounting Distance: 25mm
Overall Size: 30.8 * 12.5 *15mm (L*W*H)
Features:
Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.
This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.
Package Includes:
20 X D-sub Connectors
Specifications
:Product Name: Female D-sub Connector
Connector Type: Socket (Female)
Contact Material: Copper Alloy
Number of Positions: 9
Number of Rows: 2
Rating Current: 5A
Mounting Type: Panel Mount
Termination Style: Solder Cup
Mounting Angle: Straight
Pin Diatance: 2.84 mm
Mounting Diameter: 3.05 mm
Mounting Distance: 25mm
Overall Size: 30.8 * 12.5 *15mm (L*W*H)
Features:
Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.
This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.
Package Includes:
20 X D-sub Connectors
