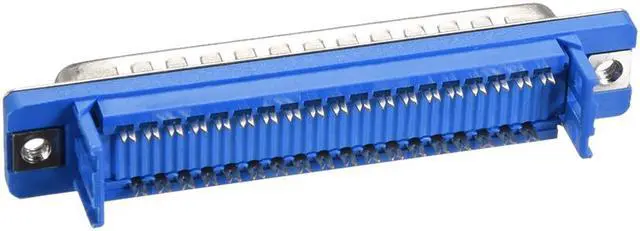

IDC D-Sub Ribbon Cable Connector 37-pin 2-row Male Plug IDC Crimp Port Terminal Breakout for Flat Ribbon Cable Blue

D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.

KEY_TAB

Specifications:

Connector Style: D-sub Connector

Connector Type: Plug(Male)

Voltage Rating: 12V

Current Rating: 5A

Number of Positions: 37

Number of Rows: 2

Mounting Type: Free Hanging (In-Line)

Termination Style: IDC, Ribbon Cable

Flange Feature: Housing/Shell

Mounting Diameter: 2.84mm

Mounting Distance: 63.5mm

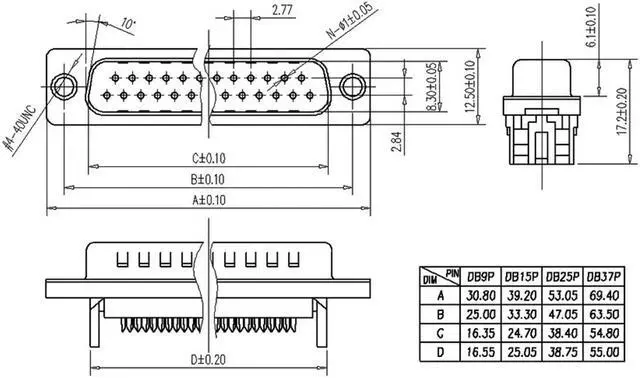

Overall Size: 69.4*12.5(L*W)

Color: Blue

KEY_TAB

Features:

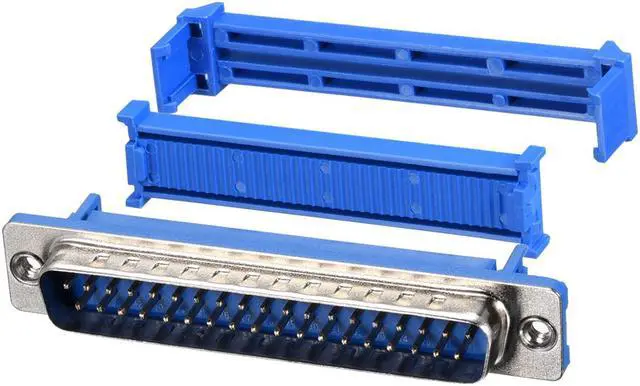

Features a cover for positive cable location, a strain relief and contacts which are recessed into to cover

Typical applications for these male IDC flat ribbon cable d-sub connectors include teleco, electronic devices, industrial equipment and more.KEY_TAB

KEY_TAB

Package Includes:

1 X IDC D-sub Connector
