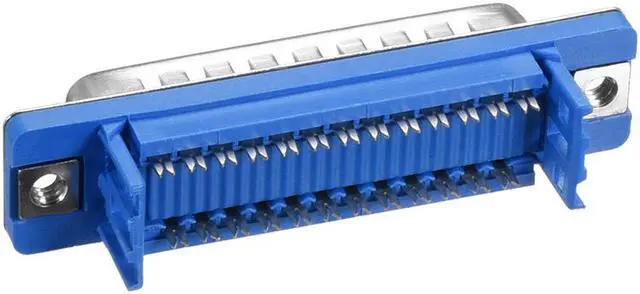

IDC D-Sub Ribbon Cable Connector 25-pin 2-row Male Plug IDC Crimp Port Terminal Breakout for Flat Ribbon Cable Blue

D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.

Specifications

:
Connector Style: D-sub Connector
Connector Type: Plug (Male)
Voltage Rating: 12V
Current Rating: 5A
Number of Positions: 9
Number of Rows: 2
Mounting Type: Free Hanging (In-Line)
Termination Style: IDC, Ribbon Cable
Flange Feature: Housing/Shell

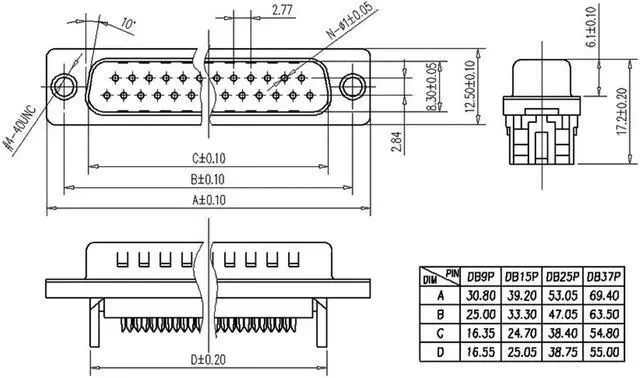

Mounting Diameter: 2.84 mm
Mounting Distance: 47.05 mm
Overall Size: 53.05 * 12.5 (L*W)
Color: Blue

Features:

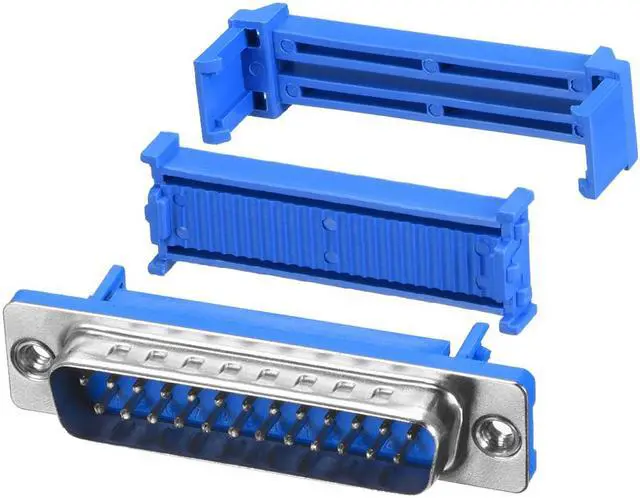

Features a cover for positive cable location, a strain relief and contacts which are recessed into to cover
Typical applications for these male IDC flat ribbon cable d-sub connectors include teleco, electronic devices, industrial equipment and more.

Package Includes:
1 X IDC D-sub Connector
