$9.49
Meet Your Seller
IDC D-Sub Ribbon Cable Connector 9-pin 2-row Male Plug IDC Crimp Port Terminal Breakout for Flat Ribbon Cable Pack of 5
- Connector Type: Plug(Male); Current Rating: 5A.Number of Pins: 9; Number of Rows: 2;Termination Style: IDC, Ribbon Cable; Mounting Angle: Straight; Overall Size: 30.8*12.5(L*W).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.
KEY_TAB
Specifications:
Connector Style: D-sub Connector
Connector Type: Plug(Male)
Voltage Rating: 12V
Current Rating: 5A
Number of Positions: 9
Number of Rows: 2
Mounting Type: Free Hanging (In-Line)
Termination Style: IDC, Ribbon Cable
Flange Feature: Housing/Shell
Mounting Diameter: 2.84mm
Mounting Distance: 25mm

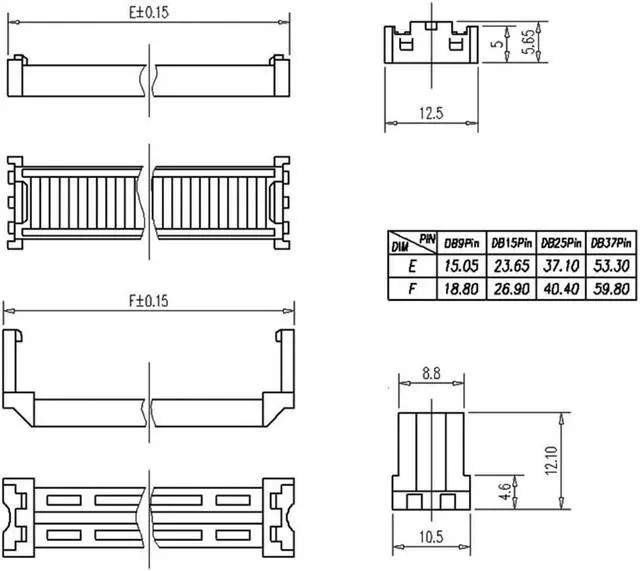

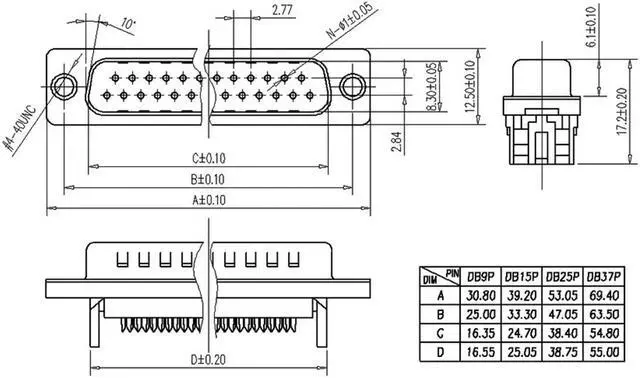

Overall Size: 30.8*12.5(L*W)
Color: Blue
KEY_TAB
Features:

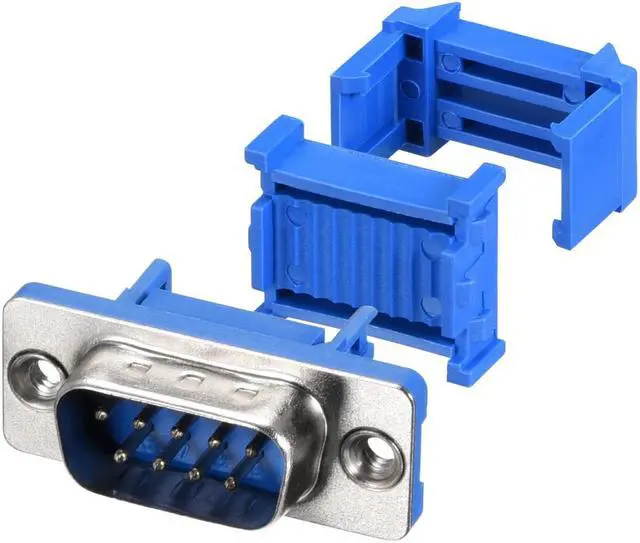

Features a cover for positive cable location, a strain relief and contacts which are recessed into to cover
Typical applications for these male IDC flat ribbon cable d-sub connectors include teleco, electronic devices, industrial equipment and more.KEY_TAB
KEY_TAB
Package Includes:

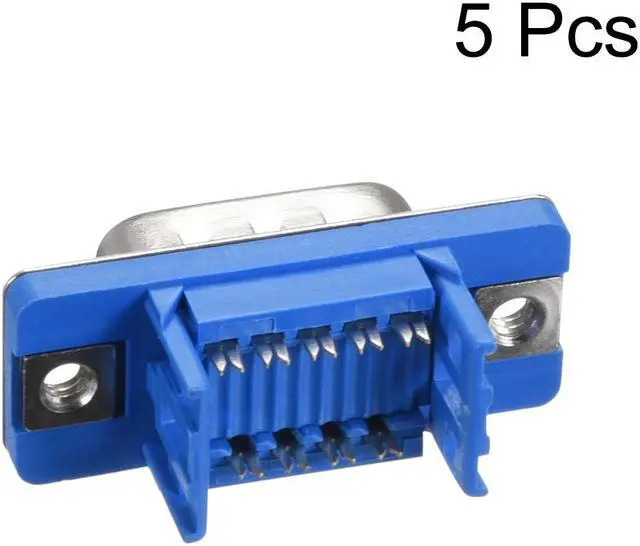

5 X IDC D-sub Connectors
KEY_TAB
