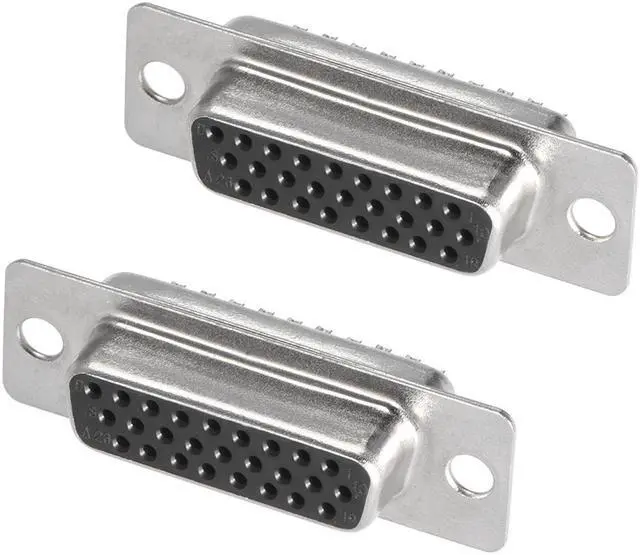

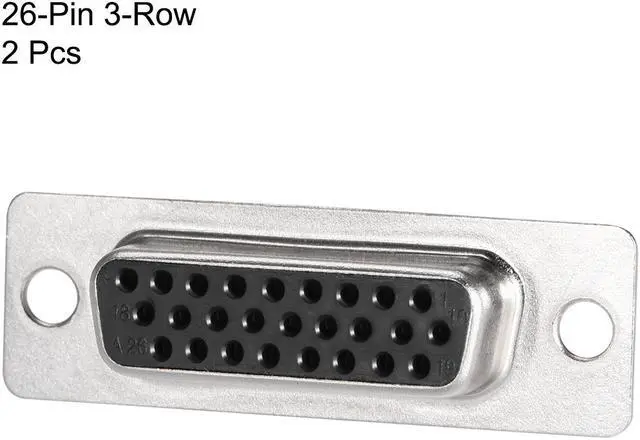

D-sub Connector DB26 Female Socket 26-pin 3-row Port Terminal Breakout for Mechanical Equipment CNC Computers Pack of 2
- Connector Type: Socket(Female); Rating Current: 3A.Number of Positions: 26; Number of Rows: 3;Termination Style: Solder Cup; Mounting Angle: Straight ; Overall Size: 39.2*12.5*16.5mm(L*W*H).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.
Product Name: Female D-sub Connector
Connector Type: Socket (Female)
Contact Material: Copper Alloy
Number of Positions: 26
Number of Rows: 3
Rating Current: 3A
Mounting Type: Panel Mount
Termination Style: Solder Cup
Mounting Angle: Straight

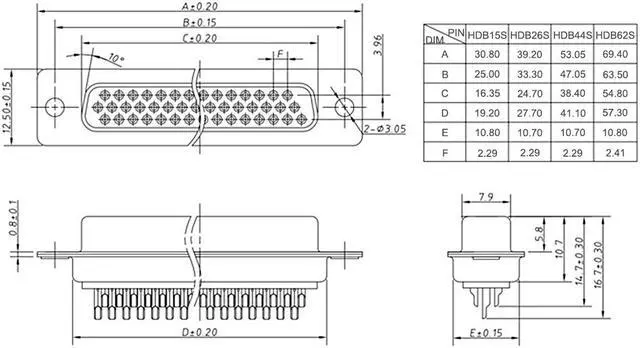

Pin Diatance: 2.29 mm
Mounting Diameter: 3.05 mm
Mounting Distance: 47.05 mm
Overall Size: 39.2 * 12.5 * 16.5 mm (L*W*H)
Features:
Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.
This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.
Package Includes:
2 X D-sub Connectors
Specifications
:Product Name: Female D-sub Connector
Connector Type: Socket (Female)
Contact Material: Copper Alloy
Number of Positions: 26
Number of Rows: 3
Rating Current: 3A
Mounting Type: Panel Mount
Termination Style: Solder Cup
Mounting Angle: Straight
Pin Diatance: 2.29 mm
Mounting Diameter: 3.05 mm
Mounting Distance: 47.05 mm
Overall Size: 39.2 * 12.5 * 16.5 mm (L*W*H)
Features:
Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.
This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.
Package Includes:
2 X D-sub Connectors
