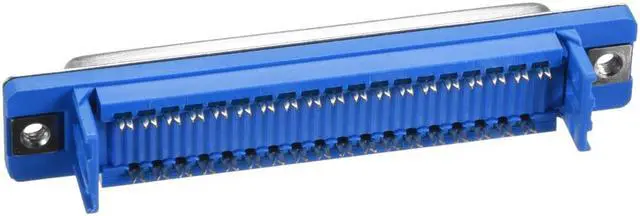

IDC D-Sub Ribbon Cable Connector 37-pin 2-row Female Socket IDC Crimp Port Terminal Breakout for Flat Ribbon Cable Blue

D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.

Specifications

:
Connector Style: D-sub Connector
Connector Type: Socket (Female)
Voltage Rating: 12V
Current Rating: 5A
Number of Positions: 37
Number of Rows: 2
Mounting Type: Free Hanging (In-Line)
Termination Style: IDC, Ribbon Cable
Flange Feature: Housing/Shell
Mounting Diameter: 2.84 mm
Mounting Distance: 63.5 mm

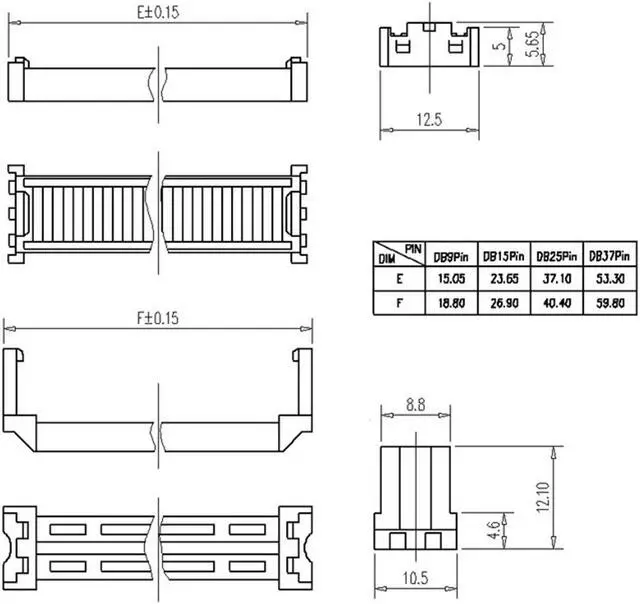

Overall Size: 69.4 * 12.5 (L*W)
Color: Blue

Features:

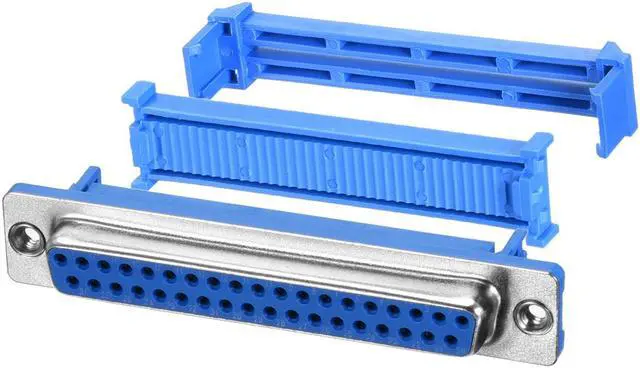

Features a cover for positive cable location, a strain relief and contacts which are recessed into to cover
Typical applications for these female IDC flat ribbon cable d-sub connectors include teleco, electronic devices, industrial equipment and more.

Package Includes:
1 X IDC D-sub Connector
