10mm 4P L-shape LED Strip Connector Right Angle Corner Connectors Clip for 5050 RGB 4 Conductor LED Strip Lights Strip to Strip 10Pcs

Description:

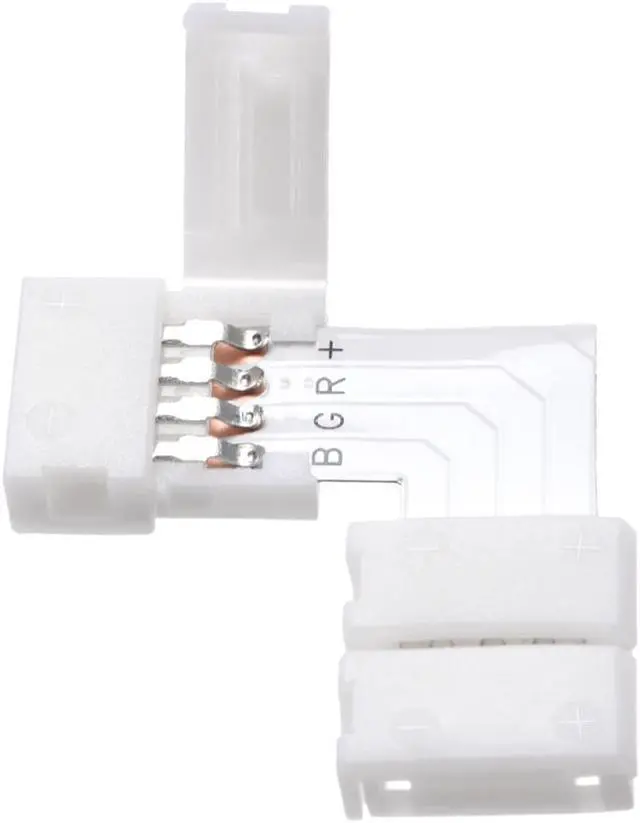

1.These L shape connectors for RGB multi-Color light strips comes with 2 easy-clasp connectors and a 90 degree L shape PCB board.

2.You can attach it with your light strips directly without any tools or wielding operations.

3.The wireless design ensures seamless layout when you need to spring your light strips around sharp corners.

4.They are compatible with both non-waterproof and waterproof RGB light strips.

KEY_TAB

Specification:

Product Name: 5050 LED Strip Connector

Material: Plastic

Type: 4P 2 Way Connector ( L Shape)

Fit for: 10mm 5050 RGB LED Strip Connector

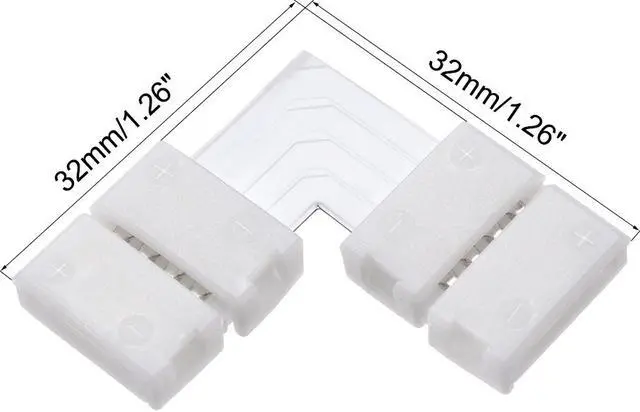

Size: 32 x 32 x 5mm / 1.26-inch x 1.26-inch x 0.2-inch (L*W*H)

Color: White

Weight: 23g

Package Content: 10 Pcs x 5050 LED Strip Connector

KEY_TAB

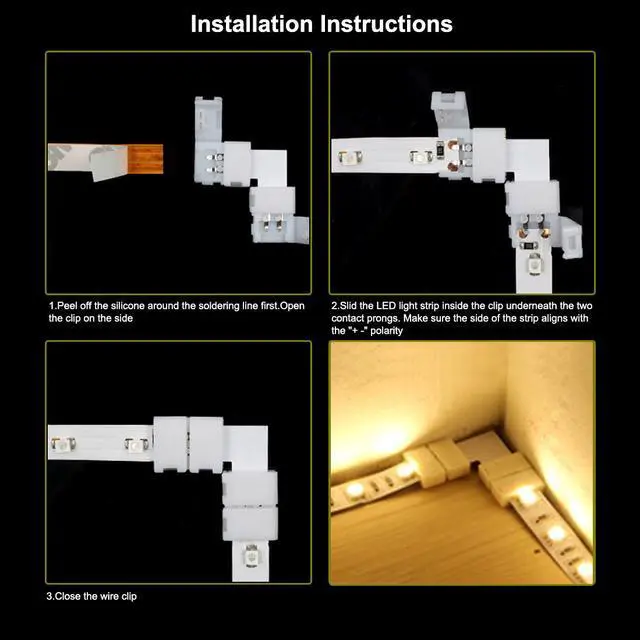

Installation Instructions:

1.Open the clip on the side

2.Slid the LED light strip inside the clip underneath the two contact prongs

3.Make sure the side of the strip aligns with the "+ -" polarity

4.Close the wire clip

KEY_TAB

Installation Tips:

1.Open the cap on the connector and slide in the ribbon.

2.Make sure the poles match correctly, then clasp the cap.

3.For waterproof light strips, you need to peel off the silicone around the soldering line first.

4.To avoid electric shock and burn, please turn off the power before cutting and reattaching light strips.
