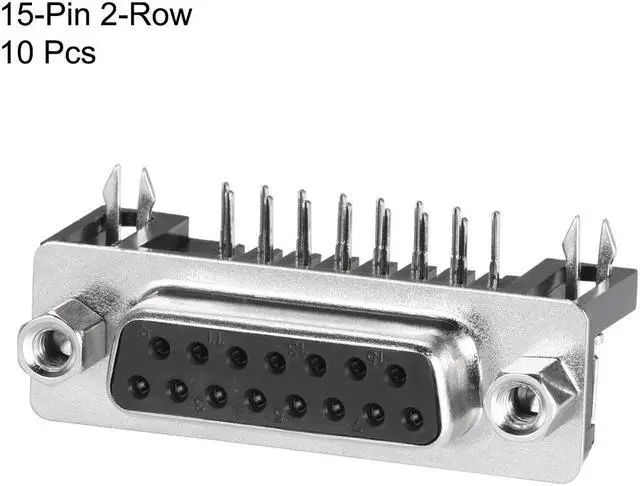

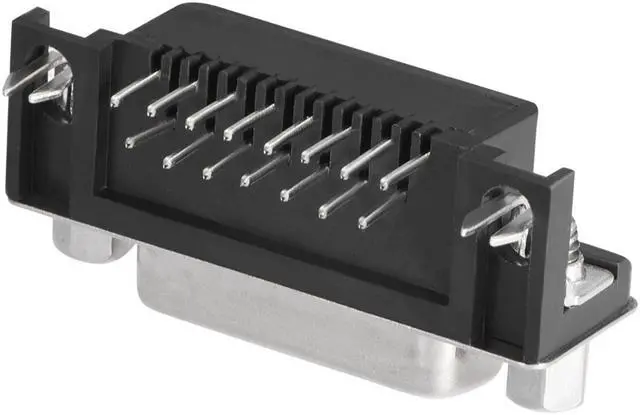

D-sub Connector Female Socket 15-pin 2-row Right Angle Port Terminal Breakout Solder Type for Mechanical Equipment Black Pack of 10
- Connector Type: Socket(Female); Rating Current: 5A.Number of Positions: 15; Number of Rows: 2.Termination Style: Solder Cup; Mounting Angle: Right Angle; Overall Size:39.2*16*18mm(L*W*H).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.
KEY_TAB
Specifications:
Product Name: Female D-sub Connector
Connector Type: Socket(Female)
Contact Material: Copper Alloy
Number of Positions: 15
Number of Rows: 2
Rating Current: 5A
Termination Style: Solder Cup
Mounting Angle: Right Angle
Pin Distance: 2.84mm
Mounting Diameter: 3.2mm

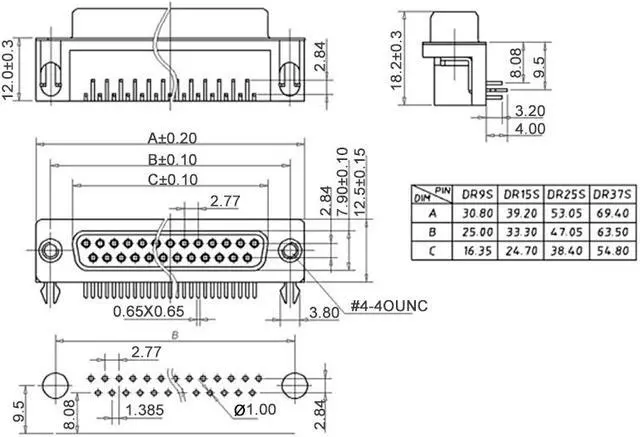

Overall Size: 39.2*16*18mm(L*W*H)
Color: Black
KEY_TAB
Features:
Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.
This D-sub connector is used in mechanical equipment.
KEY_TAB
Package Includes:
10 X D-sub Connectors
