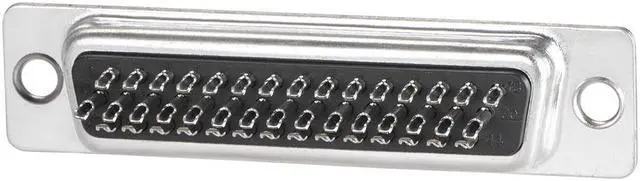

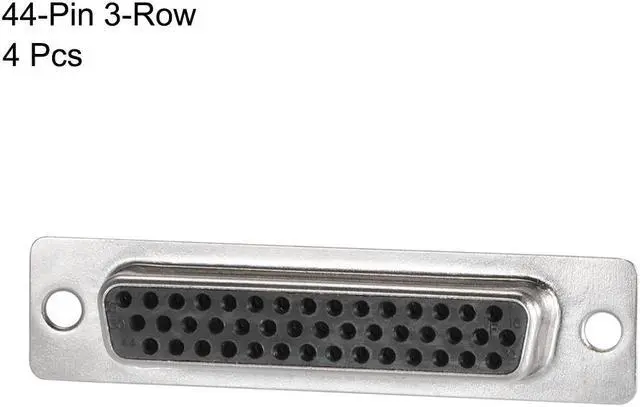

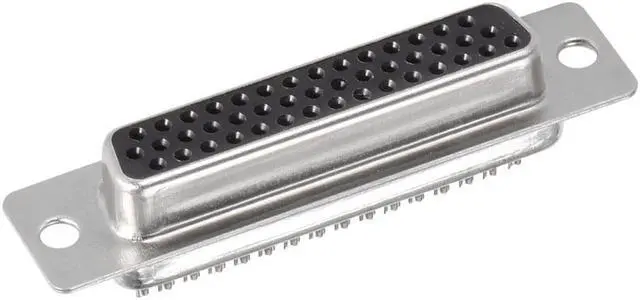

D-sub Connector DB44 Female Socket 44-pin 3-row High Density Port Terminal Breakout for Mechanical Equipment CNC Computers Pack of 4
- Connector Type: Socket(Female); Rating Current: 3A.Number of Positions: 44; Number of Rows: 3.Termination Style: Solder Cup; Mounting Angle: Straight ; Overall Size: 53.05*12.5*16.7mm(L*W*H).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.
KEY_TAB
Specifications:
Product Name: Female D-sub Connector
Connector Type: Socket(Female)
Contact Material: C2680
Number of Positions: 44
Number of Rows: 3
Rating Current: 3A
Mounting Type: Panel Mount
Termination Style: Solder Cup
Mounting Angle: StraightKEY_TAB
Pin Distance: 2.29mm
Mounting Diameter: 3.05mm
Mounting Distance: 47.05mm
Overall Size: 53.05*12.5*16.7mm(L*W*H)
KEY_TAB
Features:
Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.
This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.
KEY_TAB
Package Includes:

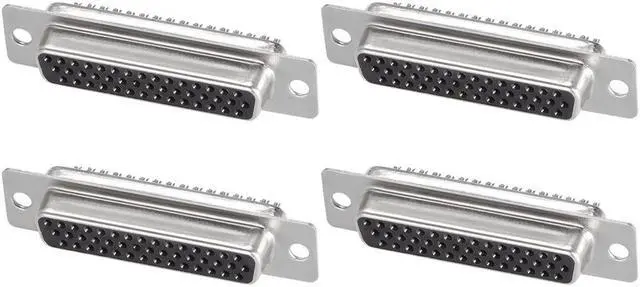

4 X D-sub Connectors
