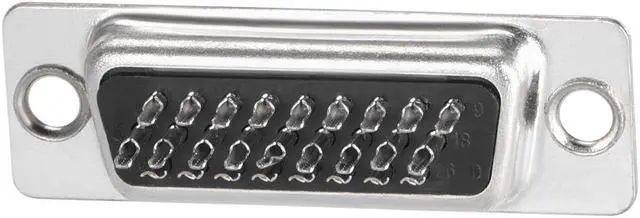

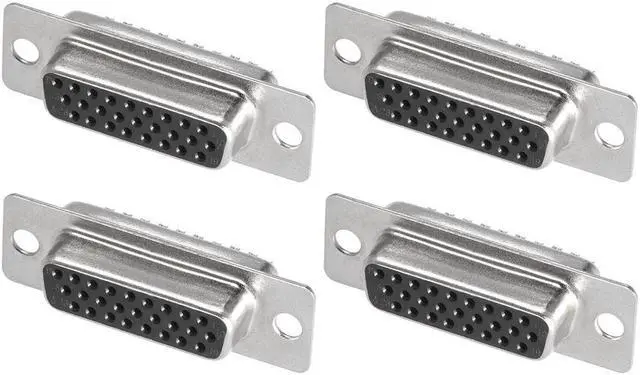

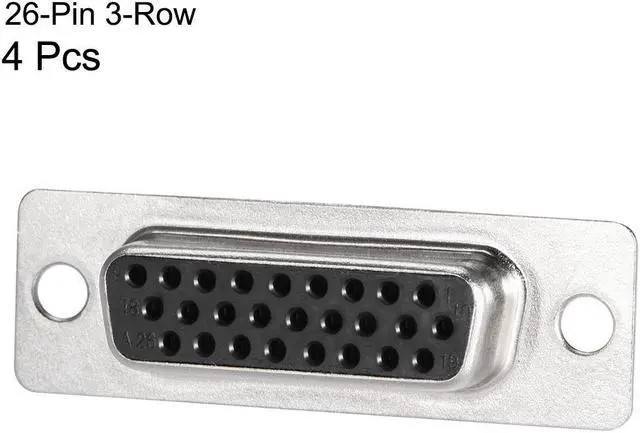

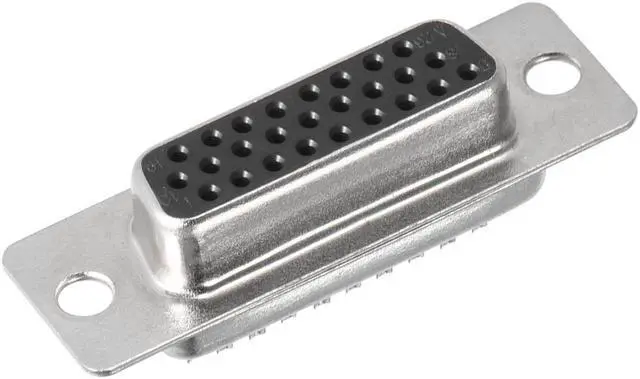

    D-sub Connector DB26 Female Socket 26-pin 3-row Port Terminal Breakout for Mechanical Equipment CNC Computers Pack of 4

    • Connector Type: Socket(Female); Rating Current: 3A.Number of Positions: 26; Number of Rows: 3.Termination Style: Solder Cup; Mounting Angle: Straight ; Overall Size: 39.2*12.5*16.5mm(L*W*H).
    +
    +
    Overview
    Specs
    Reviews

    D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.

    KEY_TAB

    Specifications:

    Product Name: Female D-sub Connector

    Connector Type: Socket(Female)

    Contact Material: Copper Alloy

    Number of Positions: 26

    Number of Rows: 3

    Rating Current: 3A

    Mounting Type: Panel Mount

    Termination Style: Solder Cup

    Mounting Angle: StraightKEY_TAB

    Pin Distance: 2.29mm

    Mounting Diameter: 3.05mm

    Mounting Distance: 47.05mm

    Overall Size: 39.2*12.5*16.5mm(L*W*H)

    KEY_TAB

    Features:

    Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.

    This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.

    KEY_TAB

    Package Includes:

    4 X D-sub Connectors
