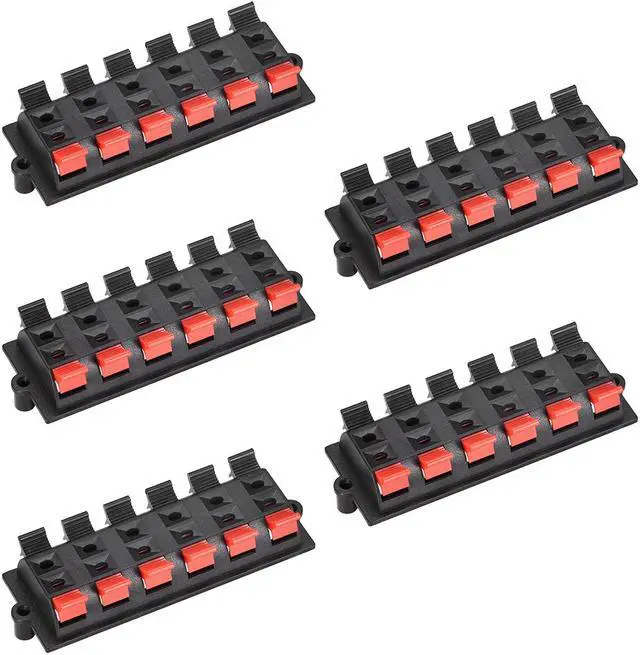

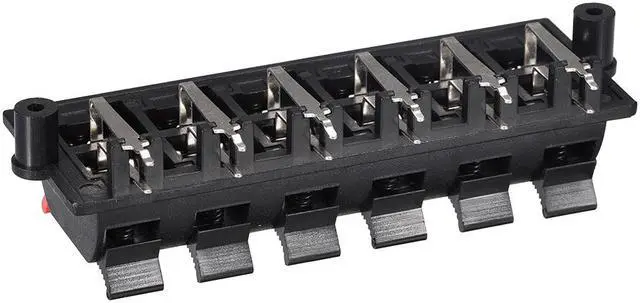

2 Row 12 Way Spring Speaker Terminal Clip Push Release Connector Audio Cable Terminals Strip Block WP12-03B 5Pcs
- Rated Load: AC 50V / 3A; Actuating Force: 1 Kgf.Color Polarity Coding: Red/Black; Fit Cable: AWG24-16.Features: 12 pins, 12 ways, spring load design, push type speaker terminal board.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
12 pins, 12 ways, spring load design, push type speaker terminal board.
This spring loaded terminals ensure a solid connection and make wire hookups a put.
Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.
KEY_TAB
Specifications:
Rated Load: AC 50V / 3A
Contact Resistance: <= 0.03 Ohm
Insulation Resistance: >= 100M Ohm
Actuating Force: 1 Kgf
Fit Cable: AWG24-16
Color Polarity Coding: Red/Black

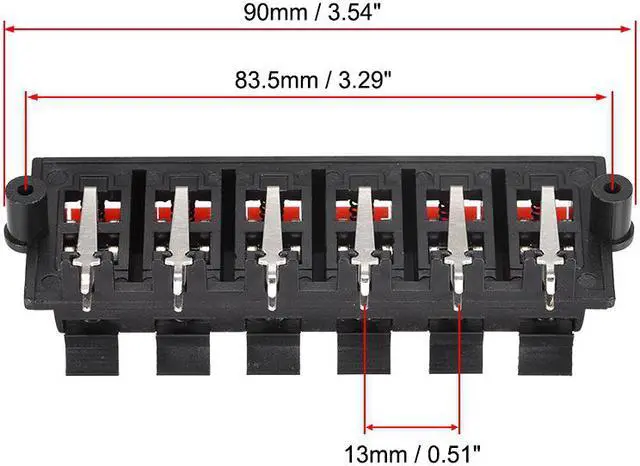

Size: 90mm x 35.5mm x 24mm / 3.54" x 1.4" x 0.94"(L*W*H)
Mounting Hole Distance: 83.5mm / 3.29"
Pin Distance: 13mm / 0.51"
Pin Width: 1.2mm
KEY_TAB
Package Contents:
5Pcs x Speaker TerminalsKEY_TAB
