2 Way Spring Speaker Terminal Clip Push Release Connector Audio Cable Terminals Strip Block 19.5mm Pin Distance
- Rated Load: AC 50V / 3A; Actuating Force: 1 Kgf.Color Polarity Coding: Red/Black; Fit Cable: AWG24-16.Features: 2 pins, 2 positions, spring load design, push type speaker terminal board.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
2 pins, 2 ways, spring load design, push type speaker terminal board.
This spring loaded terminals ensure a solid connection and make wire hookups a put.
Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.
KEY_TAB
Specifications:
Rated Load: AC 50V / 3A
Contact Resistance: <= 0.03 Ohm
Insulation Resistance: >= 100M Ohm
Actuating Force: 1 Kgf
Fit Cable: AWG24-16
Color Polarity Coding: Red/Black

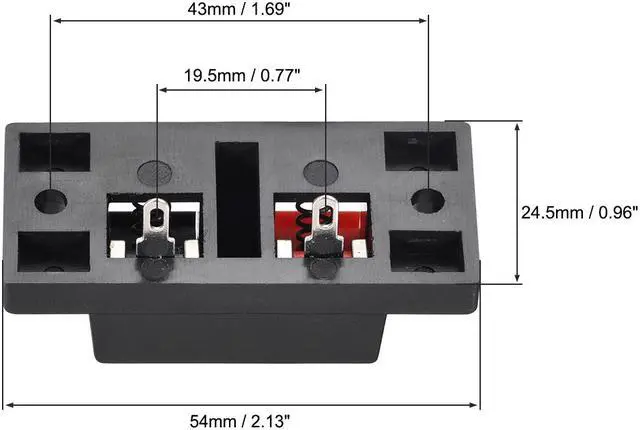

Size: 54mm x 24.5mm x 30mm / 2.13" x 0.96" x 1.18"(L*W*H)
Mounting Hole Distance: 43mm / 1.69"
Pin Distance: 19.5mm / 0.77"
Pin Width: 3mm
KEY_TAB
Package Contents:
1 x Speaker TerminalsKEY_TAB
