$8.49
Meet Your Seller
D-sub DB9 Breakout Board Connector with Case 9 Pin 2 Row Male RS232 Serial Port Solderless Terminal Block Adapter with Thumb Screws
- Connectors: VGA 9 pin male RS232/422 serial terminal block; Mounting Type: Thumb Screws.Wire Hole Diameter: 10mm/0.39 inch; Size: 48x34x21mm(LxWxH)/1.89x1.34x0.83 inch.
+
+
Overview
Specs
Reviews
Specifications:
Connectors: VGA 9 pin male RS232/422 serial terminal block

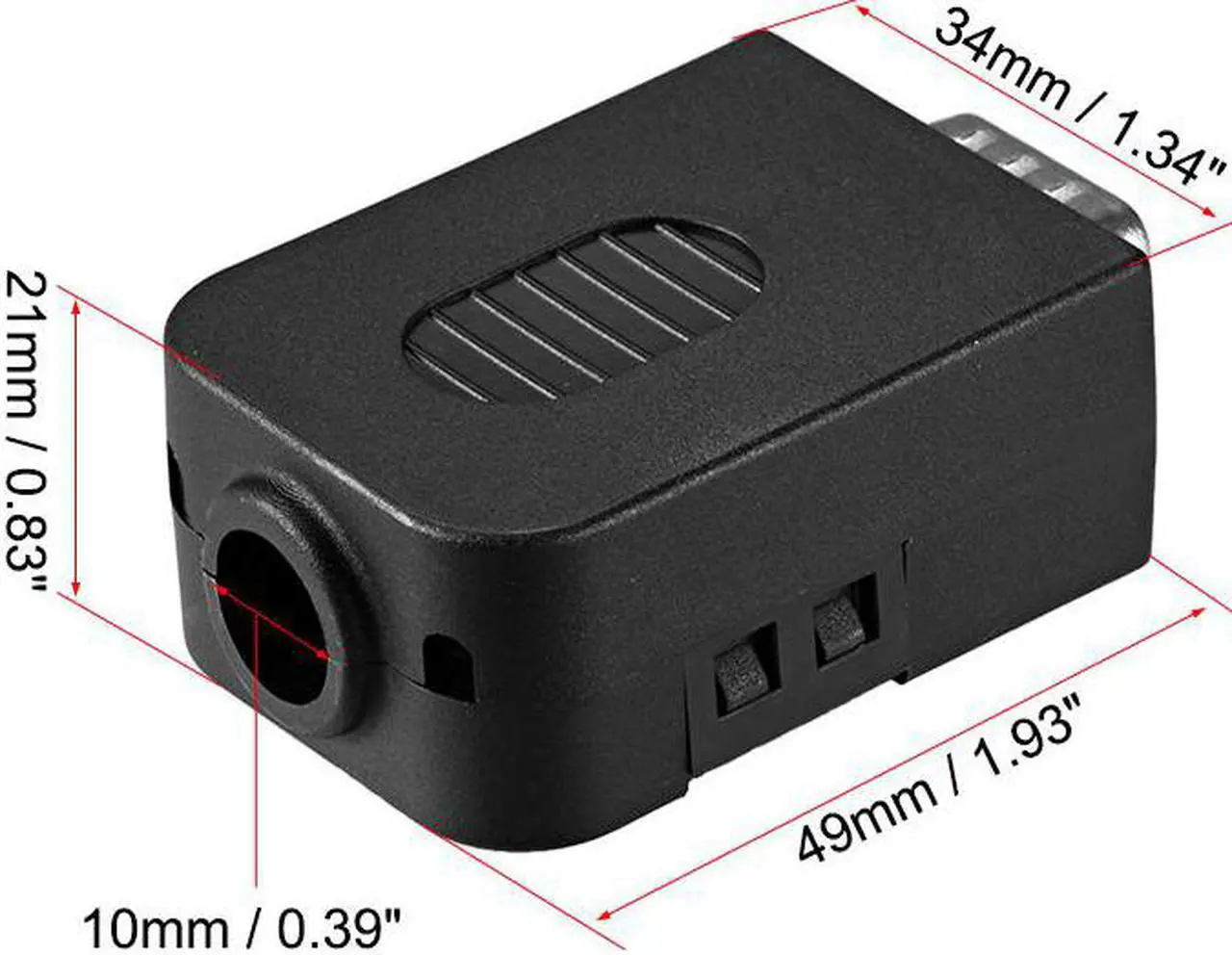

Size: 49x34x21mm(LxWxH)/1.93x1.34x0.83 inch
Wire Hole Diameter: 10mm/0.39 inch
Mounting Type: Thumb Screws
Number of Pin: 9
Number of Row: 2
Color: Black
Features:
This breakout adapter is solderless. No soldering or crimping required.
Comes with a wire holder for fixing cable and avoiding twisting the case.
The wire board is printed with wire number which is convenient for quick wiring.

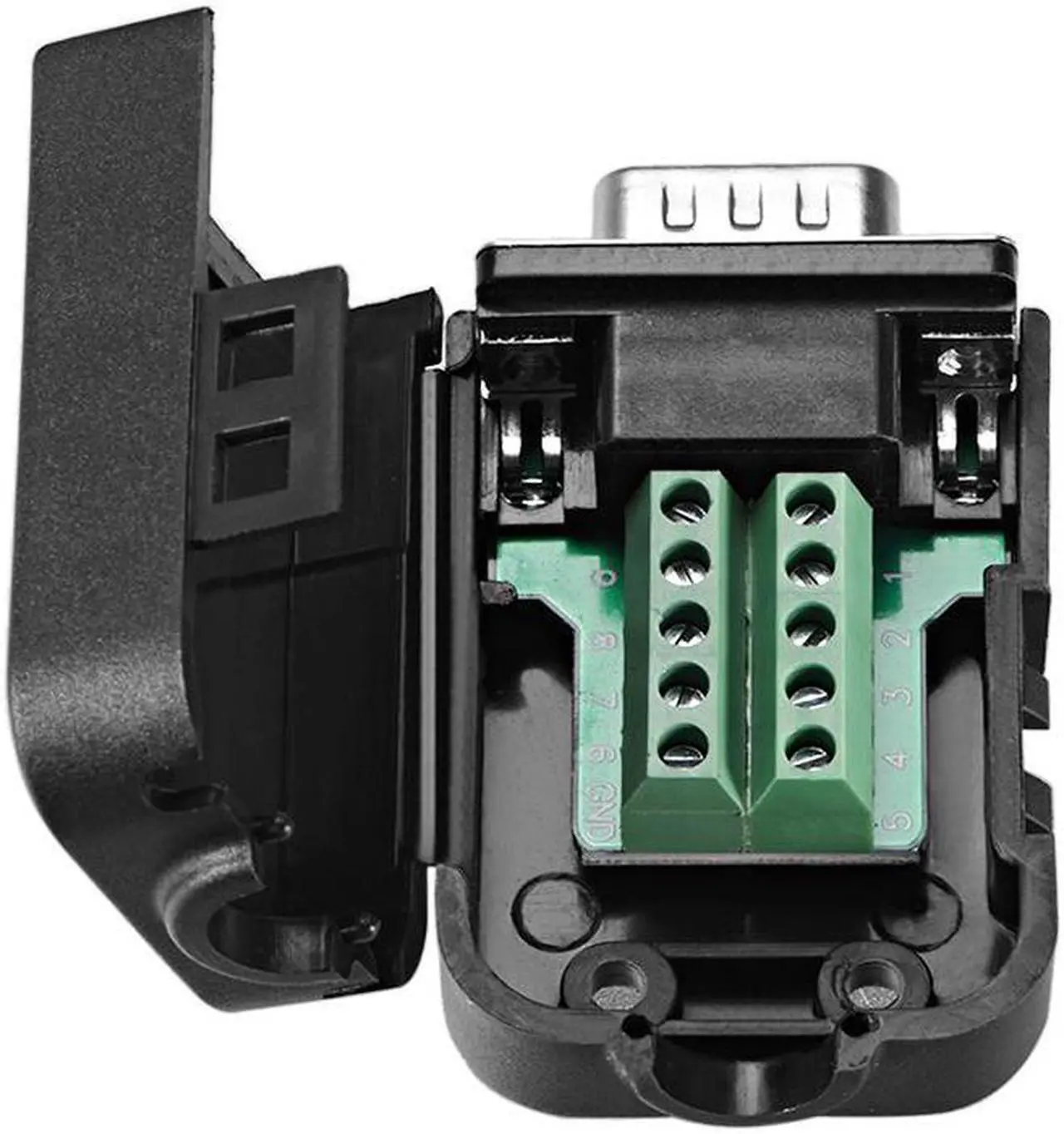

The breakout board comes already installed in a plastic hood enclosure with a openable cover.
The breakout board can be used for automatic control equipment, industrial control equipment, cash register, tax control machine, computer, etc.
Package Includes:
1 X Breakout Board with Case
2 X Screws
