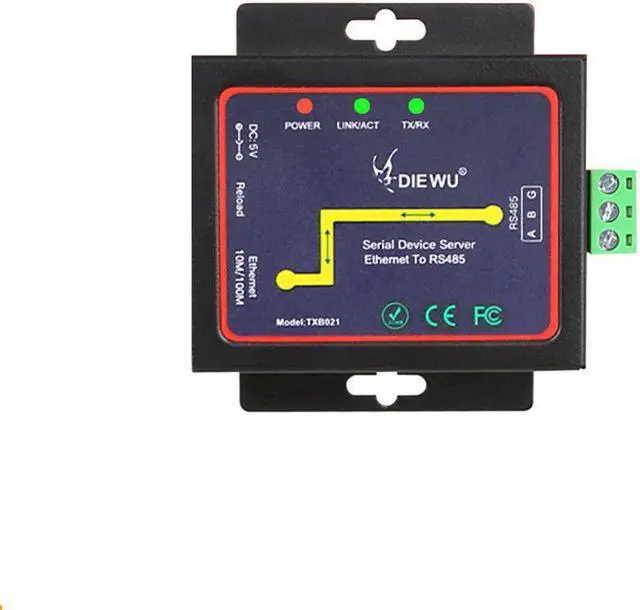

Industrial Serial Device Server RS485 to Ethernet TCP/IP LAN Converter
- YEPLOOK Industrial Serial Device Server RS485 to Ethernet TCP/IP LAN Converter
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product specification:
Model number: TXB021
Chipset: IP210

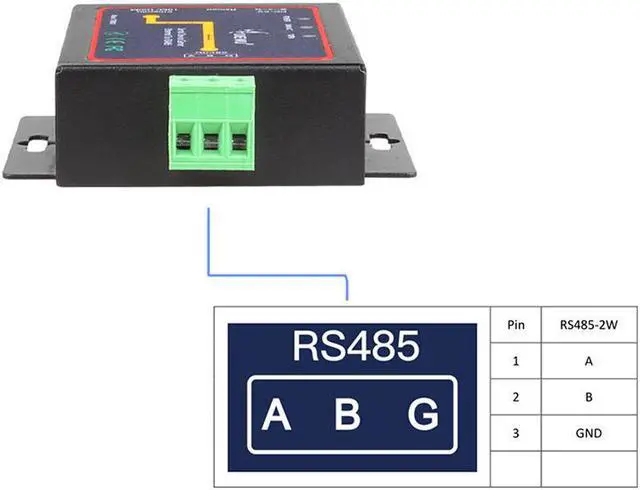

Port number: 1 port 10/100M Auto MDI-MDIX RJ45, 1port RS485
Standard: IEEE 802.3? IEEE 802.3 u? IEEE 802.3 x? IEEE 802.3 az
Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP
Data rate: 10/100M
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps
LED Indicator: Link/Act, Power, TX/RX
Baud rate: 110bps~256000bps
Operation modes: TCP Server, TCP Client, UDP
Dimension: 78*72*23mm
Power Input: DC5V
Power Consumption: Max 1.5W
Environment:
Operating Temperature: -10? -55?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40? -85?
Relative Humidity: 5%-90%(non-condensing)
Model number: TXB021
Chipset: IP210
Port number: 1 port 10/100M Auto MDI-MDIX RJ45, 1port RS485
Standard: IEEE 802.3? IEEE 802.3 u? IEEE 802.3 x? IEEE 802.3 az
Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP
Data rate: 10/100M
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps
LED Indicator: Link/Act, Power, TX/RX
Baud rate: 110bps~256000bps
Operation modes: TCP Server, TCP Client, UDP
Dimension: 78*72*23mm
Power Input: DC5V
Power Consumption: Max 1.5W
Environment:
Operating Temperature: -10? -55?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40? -85?
Relative Humidity: 5%-90%(non-condensing)
