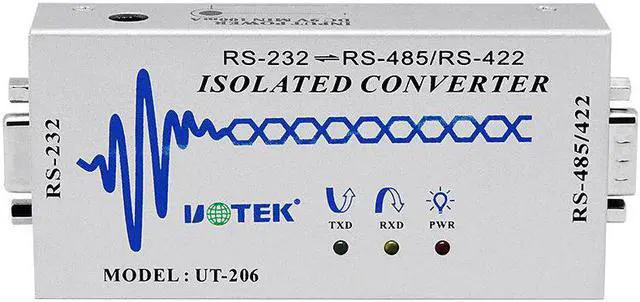

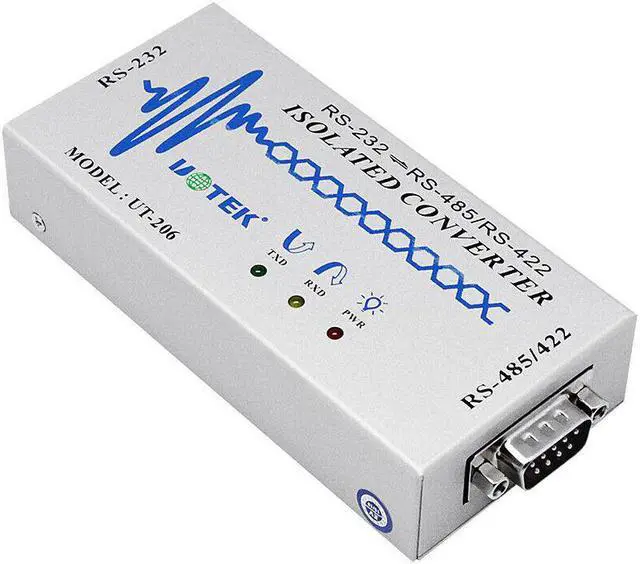

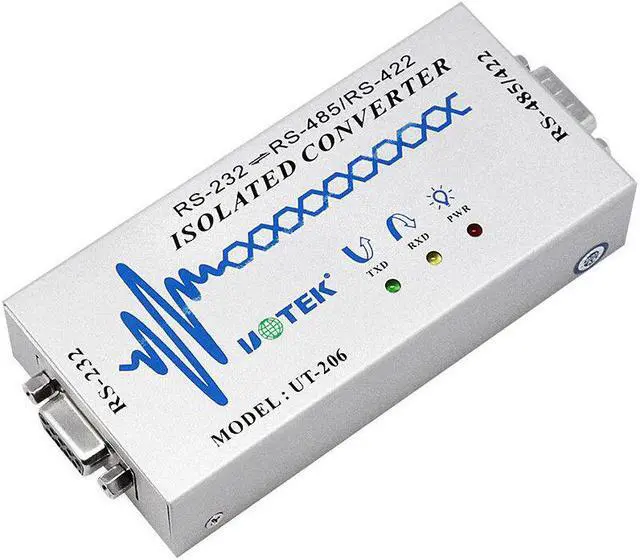

External-powered, RS-232 to RS-485/422, Mini-size, PhotoElectric isolation
- RS232 side in DB9 female
- RS485/422 side in DB9 male
- Max connection: 32 RS485/422 devices;Max: 1.2 KM (9,600BPS).
- Baud rate: 300BPS-115.2KBPS.
- Dimensions:113mm×55mm×25mm .
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description

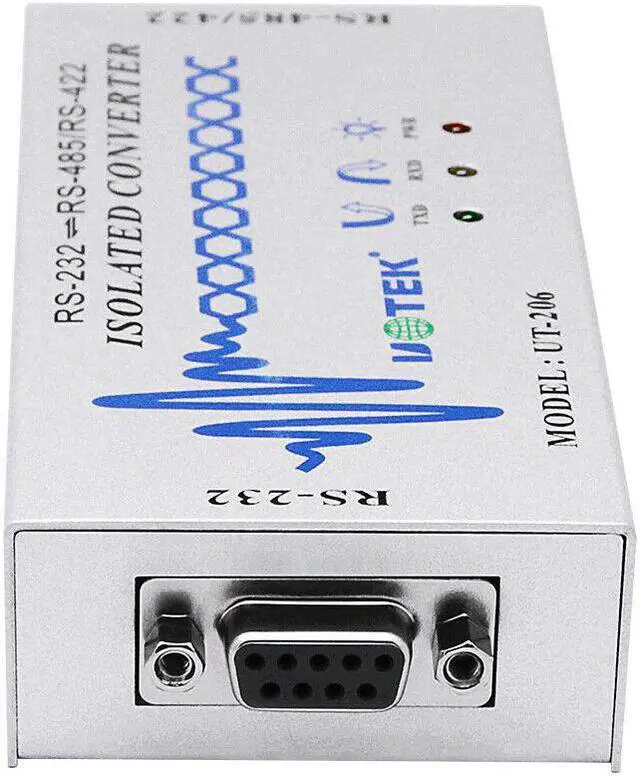

RS232 side in DB9 female

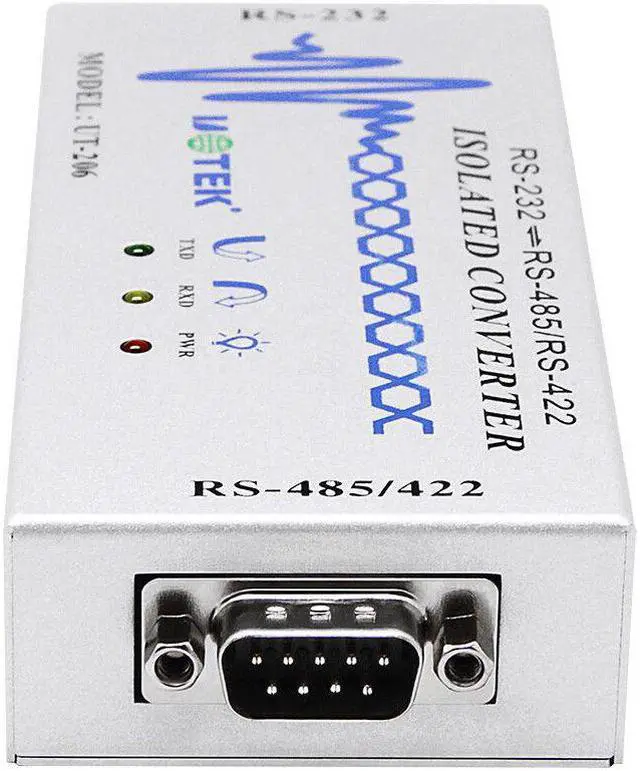

RS485/422 side in DB9 male
Max connection: 32 RS485/422 devices;
Max: 1.2 KM (9, 600BPS).
Baud rate: 300BPS- 115.2KBPS.
Dimensions: 113mm×55mm×25mm.
Indicator: Power, Data traffic
Environment: -25? to 70?, relative humidity 5%-95%.
Protection:
Photoelectric isolation voltage: 2.5KV rms /500VDC
600W lightning strike and grounding interference protection for RS-485/422
RS232 side in DB9 female
RS485/422 side in DB9 male
Max connection: 32 RS485/422 devices;
Max: 1.2 KM (9, 600BPS).
Baud rate: 300BPS- 115.2KBPS.
Dimensions: 113mm×55mm×25mm.
Indicator: Power, Data traffic
Environment: -25? to 70?, relative humidity 5%-95%.
Protection:
Photoelectric isolation voltage: 2.5KV rms /500VDC
600W lightning strike and grounding interference protection for RS-485/422
