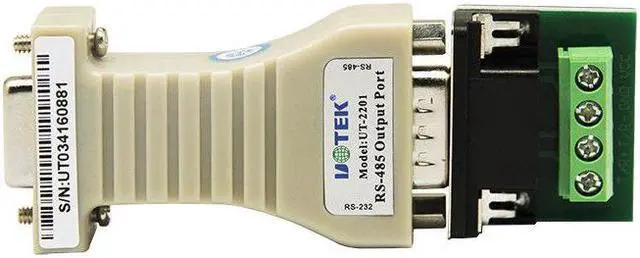

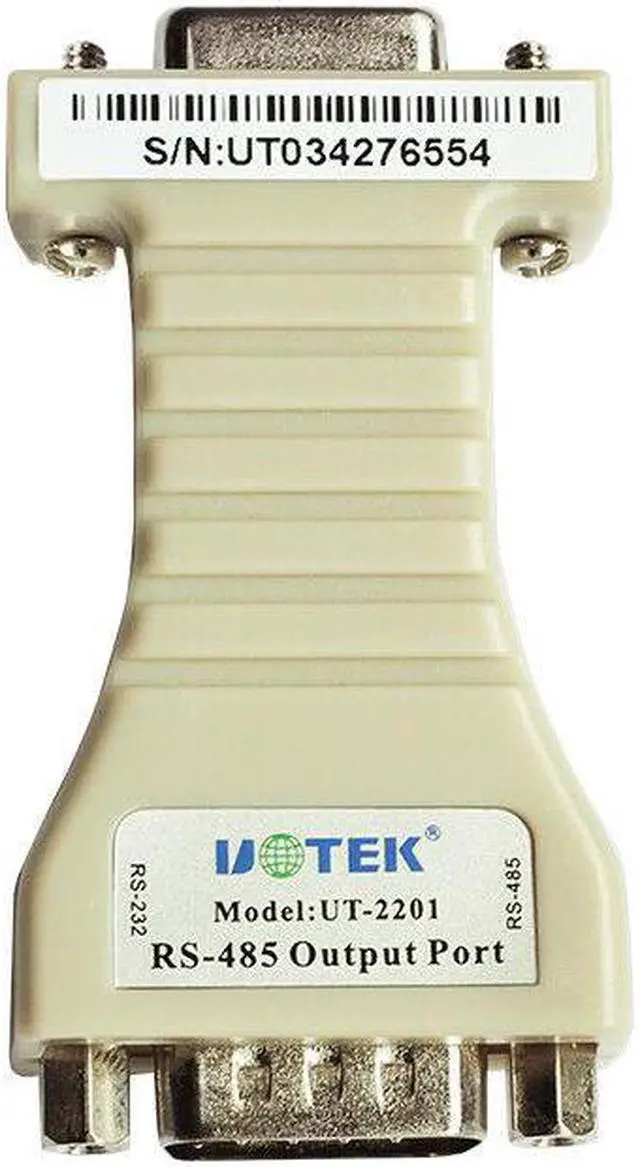

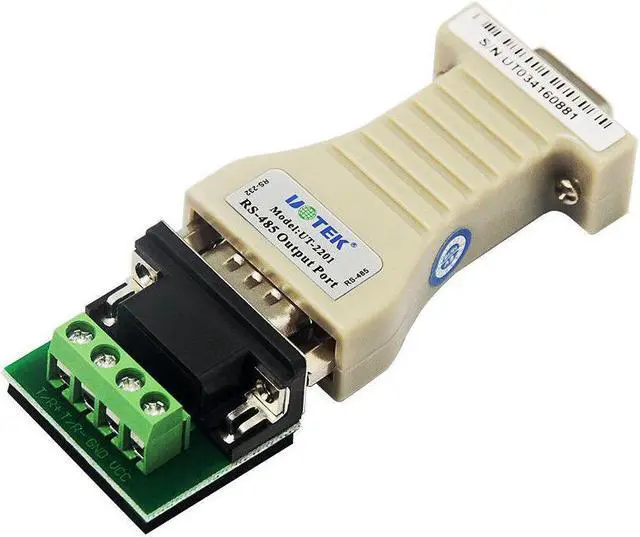

RS485 to RS232 to RS485 Passive Interface Converter Adapter Data Communication
- Interface features: interfaces compatible with EIA/TIA, RS-232C, and RS485 standards
- Electrical interface: RS-232 end DB9 pass connector, RS-485 end DB9 pin connector, with terminal
- How to operate: asynchronous half duplex differential transmission
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product parameter:
Item number: UT-2201
Interface features: interfaces compatible with EIA/TIA, RS-232C, and RS485 standards
Electrical interface: RS-232 end DB9 pass connector, RS-485 end DB9 pin connector, with terminal
How to operate: asynchronous half duplex differential transmission
Transmission medium: twisted pair or shielded wire
Transmission rate: 300BPS- 115.2KBPS
Transmission distance: 1200M RS-485 terminal, RS-232 side 5M
Size: 63*33*17mm
Use environment: -25-70?, relative humidity is 5%-95%
Item number: UT-2201
Interface features: interfaces compatible with EIA/TIA, RS-232C, and RS485 standards
Electrical interface: RS-232 end DB9 pass connector, RS-485 end DB9 pin connector, with terminal
How to operate: asynchronous half duplex differential transmission
Transmission medium: twisted pair or shielded wire
Transmission rate: 300BPS- 115.2KBPS
Transmission distance: 1200M RS-485 terminal, RS-232 side 5M
Size: 63*33*17mm
Use environment: -25-70?, relative humidity is 5%-95%
