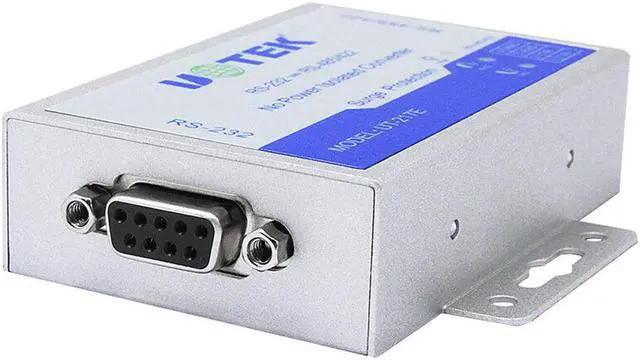

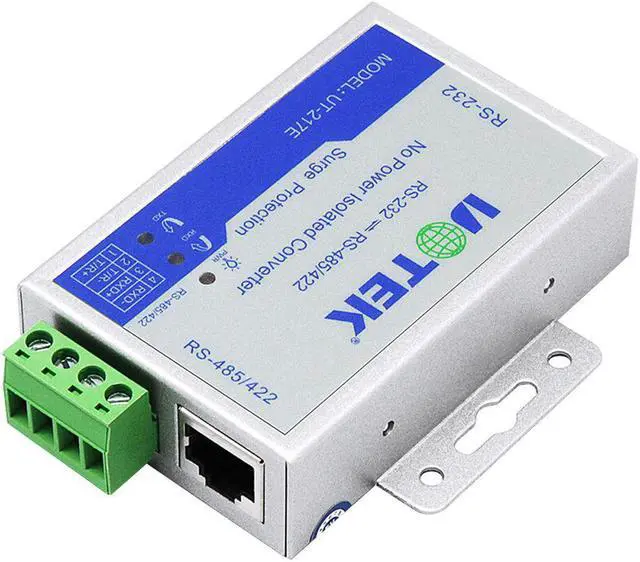

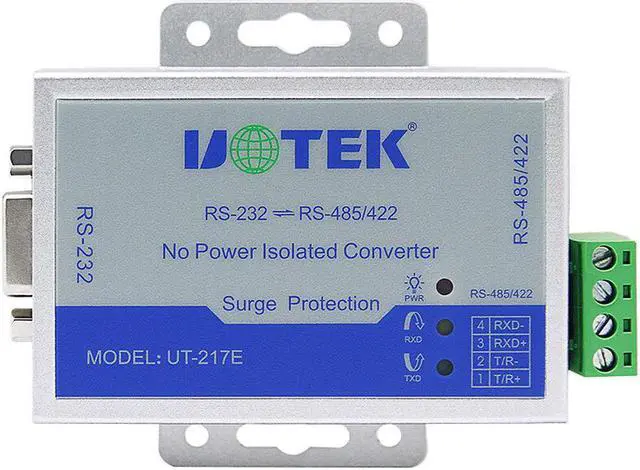

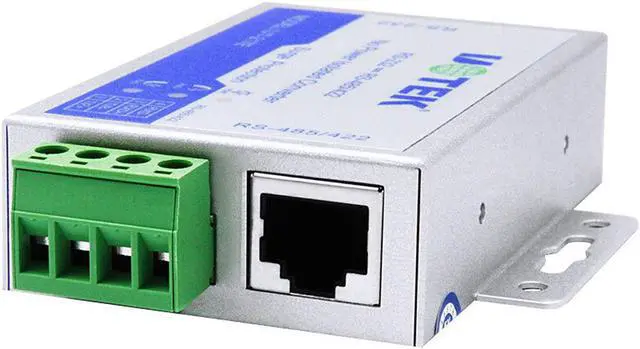

UT-217E Port-powered RS-232 to RS-485/422 Wall-mounted PhotoElectric Isolation
- RS232 side in DB9 female
- RS485 side in RJ-45 and 4pin post
- Max connection: 32 RS485 devices;Max: 1.2 KM (9,600BPS).
- Baud rate: 300BPS-115.2KBPS.
- Dimensions: 93mm x 74mm x 22mm.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description
RS232 side in DB9 female
RS485 side in RJ-45 and 4pin post
Max connection: 32 RS485 devices;
Max: 1.2 KM (9, 600BPS).
Baud rate: 300BPS- 115.2KBPS.
Dimensions: 93mm x 74mm x 22mm.
Indicator: Power, Data traffic
Environment: -40¡æ to 85¡æ, relative humidity 5%-95%.
Protection:
+/-15KV ESD protection for RS-232 interface
Photoelectric isolation voltage: 2.5KV rms /500VDC
600W lightning strike and grounding interference protection for RS-485/422
Application fields:
Factory automation system
Distributed control system
Other RS232/485/422 serial device wireless network
LED INFO display equipments
PLC control and management
SCADA, measuring instruments and monitoring system
CNC management
Medical treatment/medication automation
Building automation
Check on work attendance/ Human resource management
RS232 side in DB9 female
RS485 side in RJ-45 and 4pin post
Max connection: 32 RS485 devices;
Max: 1.2 KM (9, 600BPS).
Baud rate: 300BPS- 115.2KBPS.
Dimensions: 93mm x 74mm x 22mm.
Indicator: Power, Data traffic
Environment: -40¡æ to 85¡æ, relative humidity 5%-95%.
Protection:
+/-15KV ESD protection for RS-232 interface
Photoelectric isolation voltage: 2.5KV rms /500VDC
600W lightning strike and grounding interference protection for RS-485/422
Application fields:
Factory automation system
Distributed control system
Other RS232/485/422 serial device wireless network
LED INFO display equipments
PLC control and management
SCADA, measuring instruments and monitoring system
CNC management
Medical treatment/medication automation
Building automation
Check on work attendance/ Human resource management
