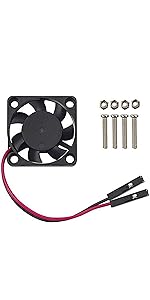

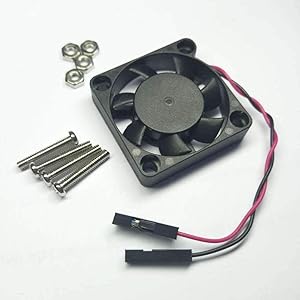

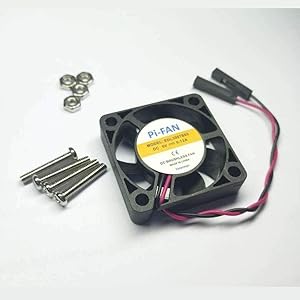

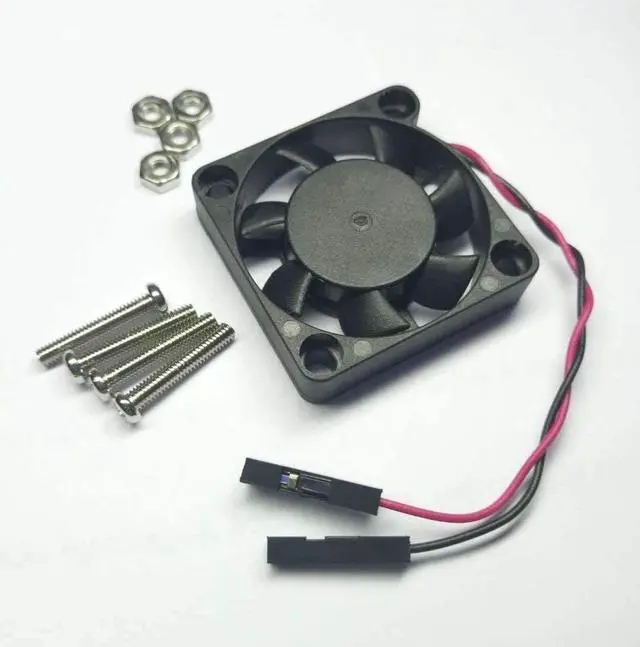

30mm Fan 5V
- Hypro sleeve fan suitable for Raspberry Pi 5 4 and 3,
- One-to-Two wire connector Interface for dual speed mode (3.3V and 5V DC)
- Low noise (15.92dBA), Long life (30,000 hours)
- Compatible with other robotic projects and development boards

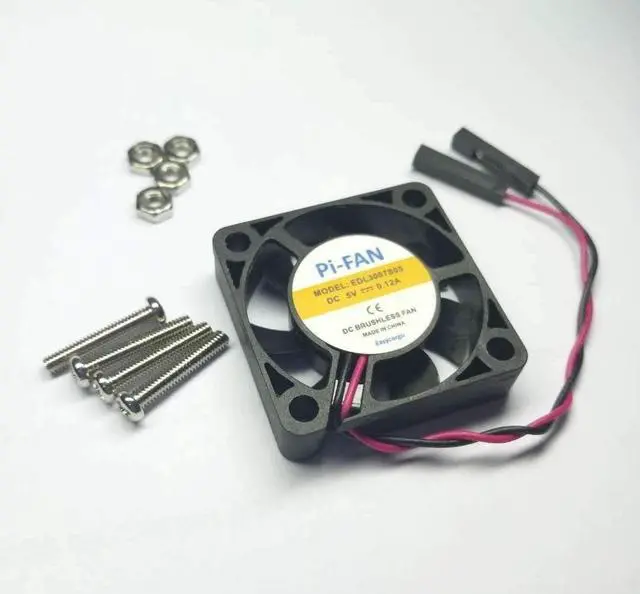

Easycargo EDL3007S05 raspberry pi cooling fan is built for low-noise and durable cooling performance. This fan is suitable for Raspberry Pi 5, 4 and 3. The One-to-Two wire connector pins of this fan, can get connected into Raspberry Pi 3.3V or 5V pin to provide optional fan speed and optimum air flow adjustment. This fan can be installed for most of the standard Raspberry Pi cases and also is compatible with RetroFlag NESPI Case. Compatible with other DIY electronics and robotics project.

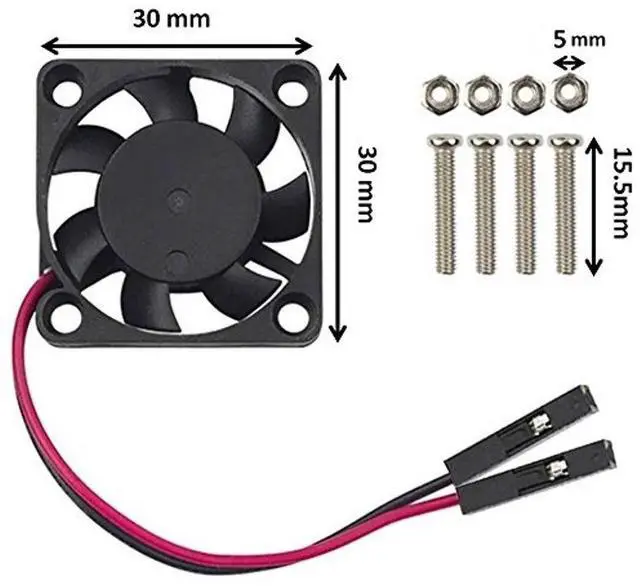

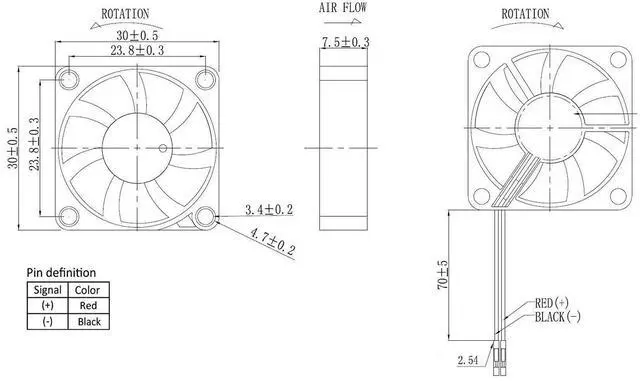

- Fan Size: 30x30x7.5 mm (LxWxH)
- Wire Length: 2.6 inches (66mm)
- Connector: One-to-Two pin
- Bearing Type: Hypro Bearing
- Operating Voltage: DC 3.3V - 5V
- Start up Voltage: DC 3V
- Speed: 5000RPM±15%
- Airflow: 1.79CFM
- Noise Level: 15.92dBA
- Life Time: 30,000 hours

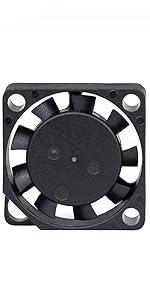

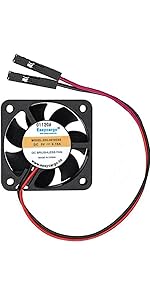

 30mm Fan 5V |  25mm Fan 5V |  40mm Fan 5V |  20mm Fan 5V | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Dimension | 30mmx30mmx7mm | 25mmx25mmx7mm | 40mmx40mmx10mm | 20mmx20mmx6mm |
| Air Flow | 1.79 CFM | 1.62 | 4.22 CFM | 0.42 CFM |
| Noise Level | 15.9 dBA | 17.2 dBA | 19.5 dBA | 14.1 dBA |
| Fan Speed | 5000 RPM | 7500 RMP | 5000 RPM | 8000 RPM |
30mm Fan 5V
- Hypro sleeve fan suitable for Raspberry Pi 5 4 and 3,
- One-to-Two wire connector Interface for dual speed mode (3.3V and 5V DC)
- Low noise (15.92dBA), Long life (30,000 hours)
- Compatible with other robotic projects and development boards
Easycargo EDL3007S05 raspberry pi cooling fan is built for low-noise and durable cooling performance. This fan is suitable for Raspberry Pi 5, 4 and 3. The One-to-Two wire connector pins of this fan, can get connected into Raspberry Pi 3.3V or 5V pin to provide optional fan speed and optimum air flow adjustment. This fan can be installed for most of the standard Raspberry Pi cases and also is compatible with RetroFlag NESPI Case. Compatible with other DIY electronics and robotics project.
- Fan Size: 30x30x7.5 mm (LxWxH)
- Wire Length: 2.6 inches (66mm)
- Connector: One-to-Two pin
- Bearing Type: Hypro Bearing
- Operating Voltage: DC 3.3V - 5V
- Start up Voltage: DC 3V
- Speed: 5000RPM±15%
- Airflow: 1.79CFM
- Noise Level: 15.92dBA
- Life Time: 30,000 hours
30mm Fan 5V | 25mm Fan 5V | 40mm Fan 5V | 20mm Fan 5V | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Dimension | 30mmx30mmx7mm | 25mmx25mmx7mm | 40mmx40mmx10mm | 20mmx20mmx6mm |
| Air Flow | 1.79 CFM | 1.62 | 4.22 CFM | 0.42 CFM |
| Noise Level | 15.9 dBA | 17.2 dBA | 19.5 dBA | 14.1 dBA |
| Fan Speed | 5000 RPM | 7500 RMP | 5000 RPM | 8000 RPM |
