Name: Yankok [CAT7 Pass Through Connectors] 100 Pcs 3U Gold Plated with Boots Strain Relief Shielded RJ45 Plugs for CAT6a CAT7 Solid and Stranded Cables
Brand: Yankok
SKU: 36M-01KN-00001
Price: 39.99 USD
Availability: InStock

Yankok [CAT7 Pass Through Connectors] 100 Pcs 3U Gold Plated with Boots Strain Relief Shielded RJ45 Plugs for CAT6a CAT7 Solid and Stranded Cables

Shielded gold-plated contacts provide high performance for a Gigabit Ethernet rated network. Ideal for creating superior high performance CAT6A and CAT7 patch cables in 10 Gigabit Ethernet applications where high density routers and switches are employed.

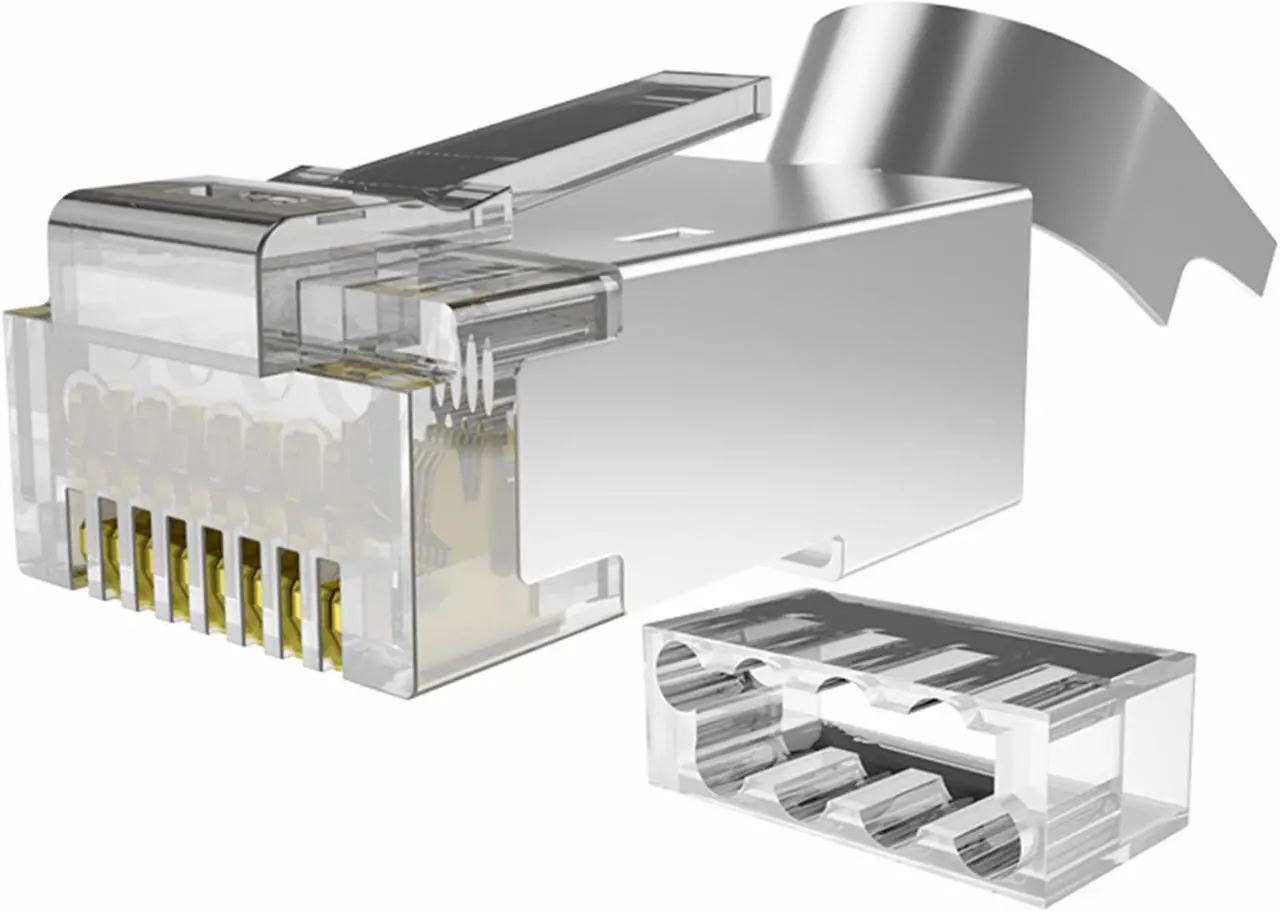

Pack of 100 cat7 ez connectors for shielded twisted pair solid or stranded cables with boots and strain relief. Meets CAT6A and CAT7 performance requirements per ANSI/TIA-568-B.2-10. Robust shield termination and strain relief allow for one-step termination process.

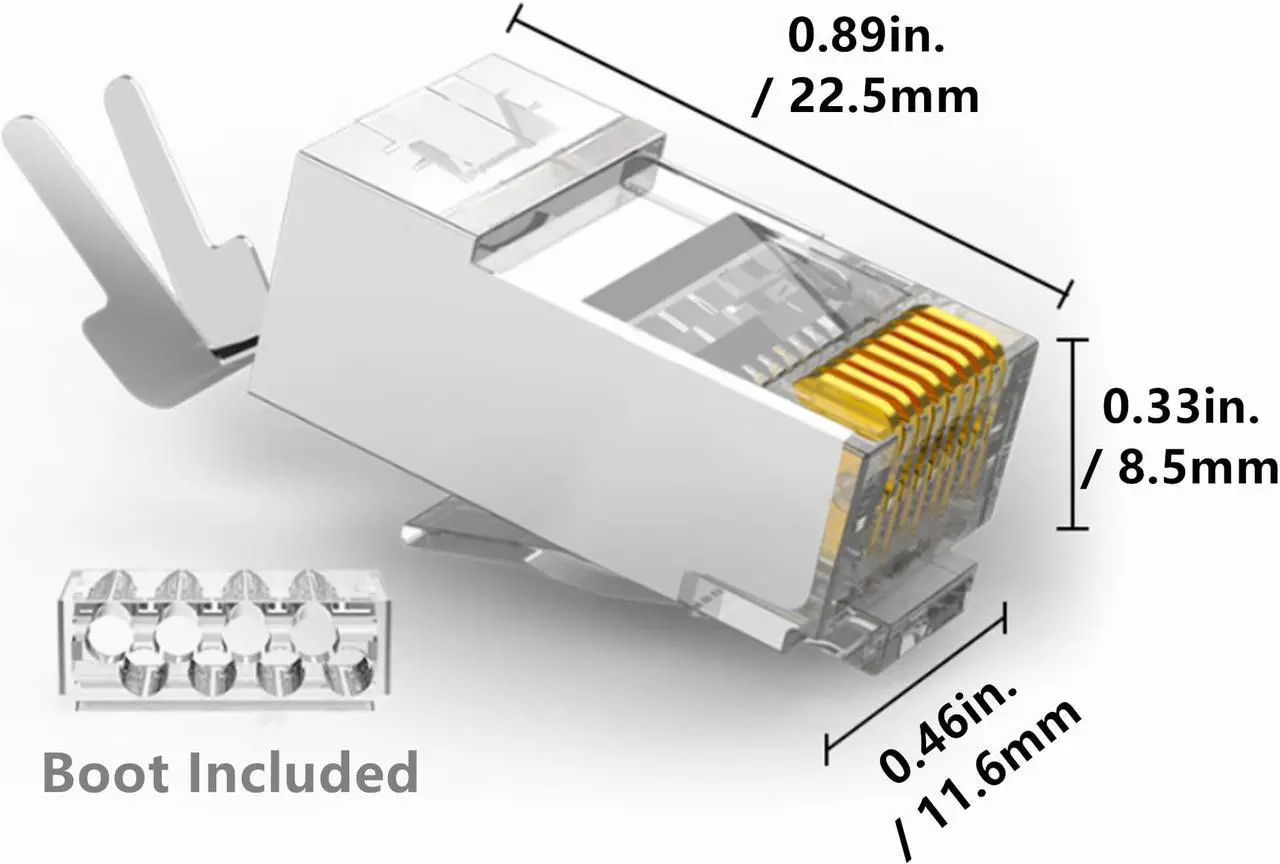

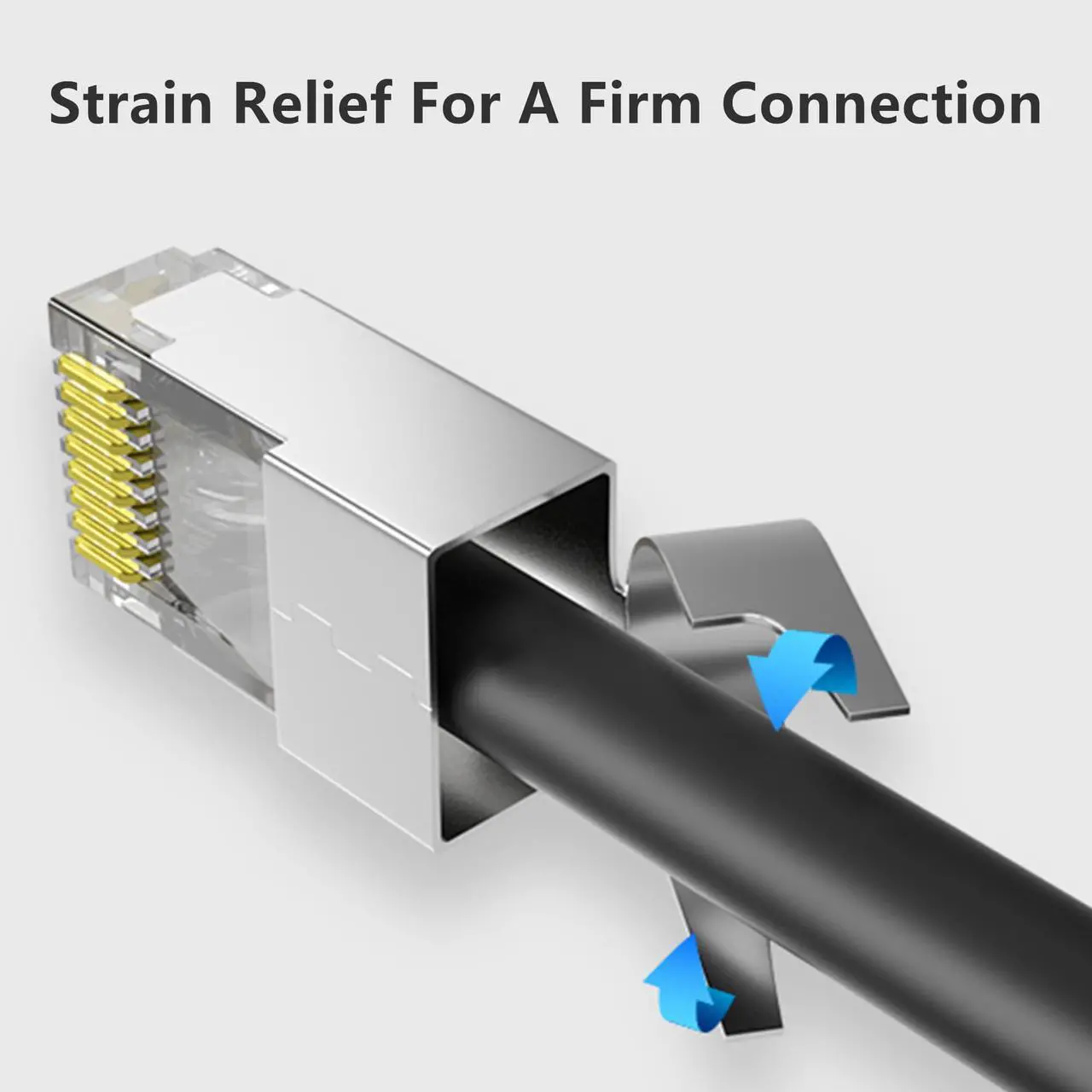

Pass through solid rj45 ends and strain relief enhance flex life performance and tensile strength. Optional slimline boot features integrated strain relief and latch protection. UL 94-V0 plastic components with transparent housing for easy conductor alignment.
8 Pins and 8 Conductors (8p8c), 50 micro-inch gold plated contacts with copper alloy shielding fits 22 AWG - 26 AWG cables. Over time these shielded connectors will save time and money on any job.

Choking Hazard Small parts. Not for children under 3 years.

About Yankok:

Yankok offers a comprehensive line of VDV products created to prep, connect, and test network, phone, CATV, home theater, satellite, and security cables for residential or commercial systems.

Yankok has manufactured premium-quality, professional-grade hand tools that deliver the performance, durability and precision needed to get the job done right.

We only use the high quality materials, superior workmanship, and keeping manufacturing as close to home as we can and make great products that stand up to the demands of the professionals who use them every day.

For every tool, item box and shipping package should be a Yankok logo mark on it for genuine approval.

What is in the Package?

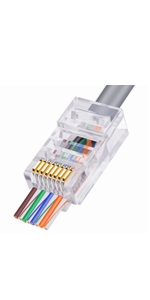

The Yankok RJ45 CAT7 Pass-Through Shielded Connectors are used by network installers/technicians in order to terminate CAT7 network cables with a pass-through crimper. They are used in households and businesses and are ideal for terminating a round network cable or even replacing an existing connector. These connectors feature gold plating for greater signal quality, tripoint-type prongs for both solid and stranded cables, clear housing so the operator can see the wire pairs easily, and have a pass-through design which makes it easy to terminate cables and reduces risk of poor connection and signal loss. This product comes in a pack of 100 connectors.

T568A or T568B - Which One Should I Use?

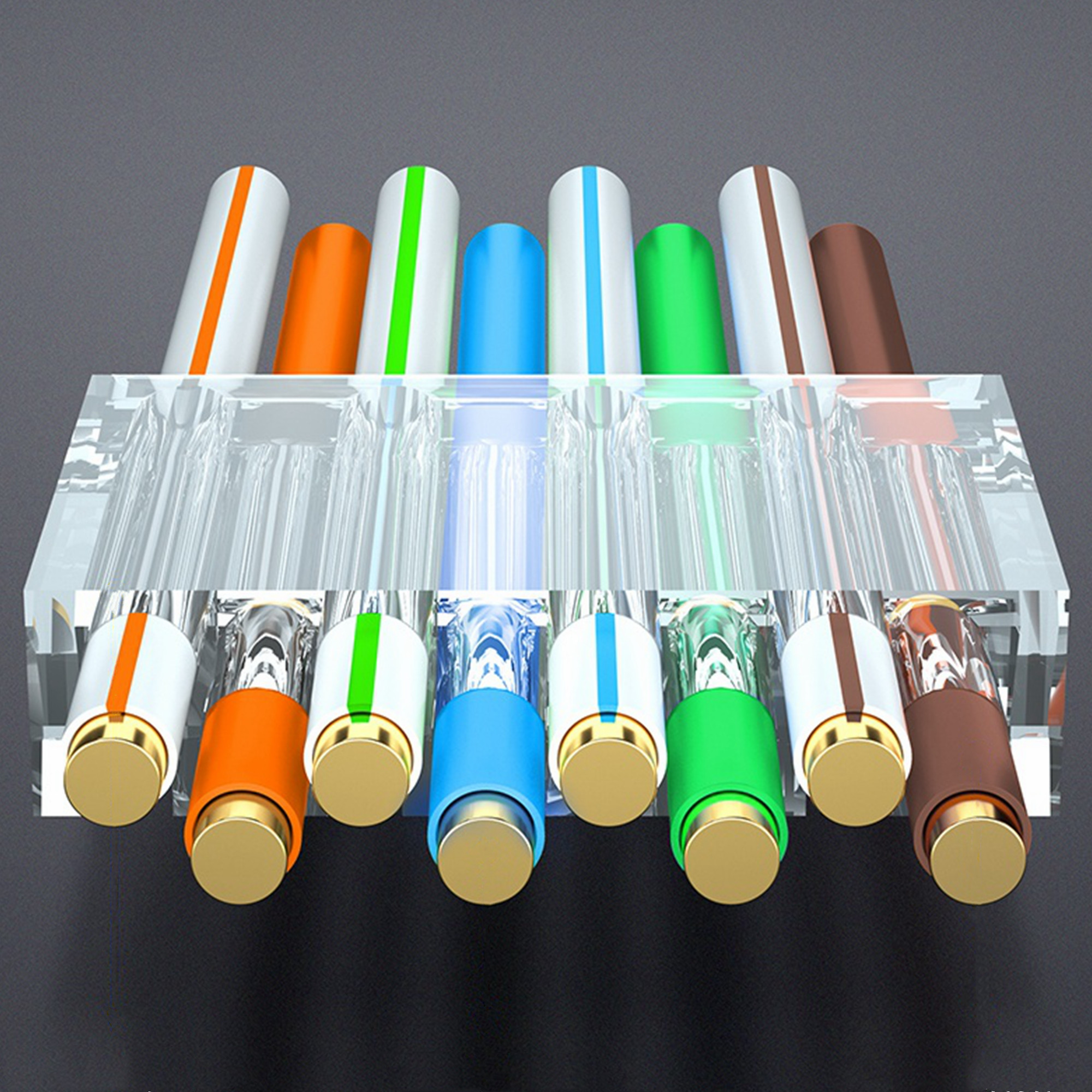

If the installation is residential, choose T568A unless other conditions apply. If components used within the project are internally wired either T568A or T568B, duplicate this wiring scheme. Use your fingers to put the wires in the correct order so they can be properly crimped. The proper sequence is as follows from left to right: T568A - White/Green, Green, White/Orange, Blue, White/Blue, Orange, White/Brown, Brown. T568B - White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown.

Other Features

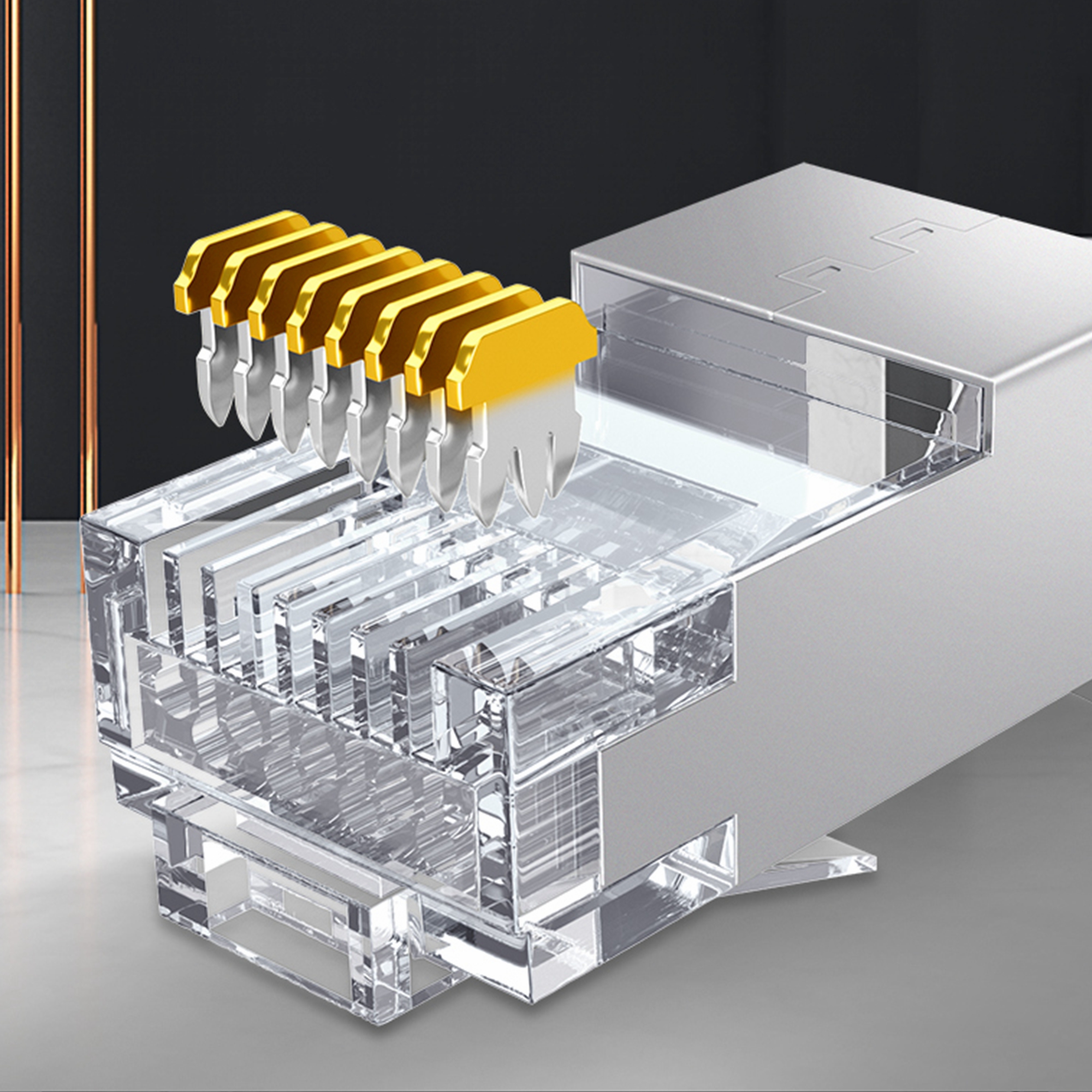

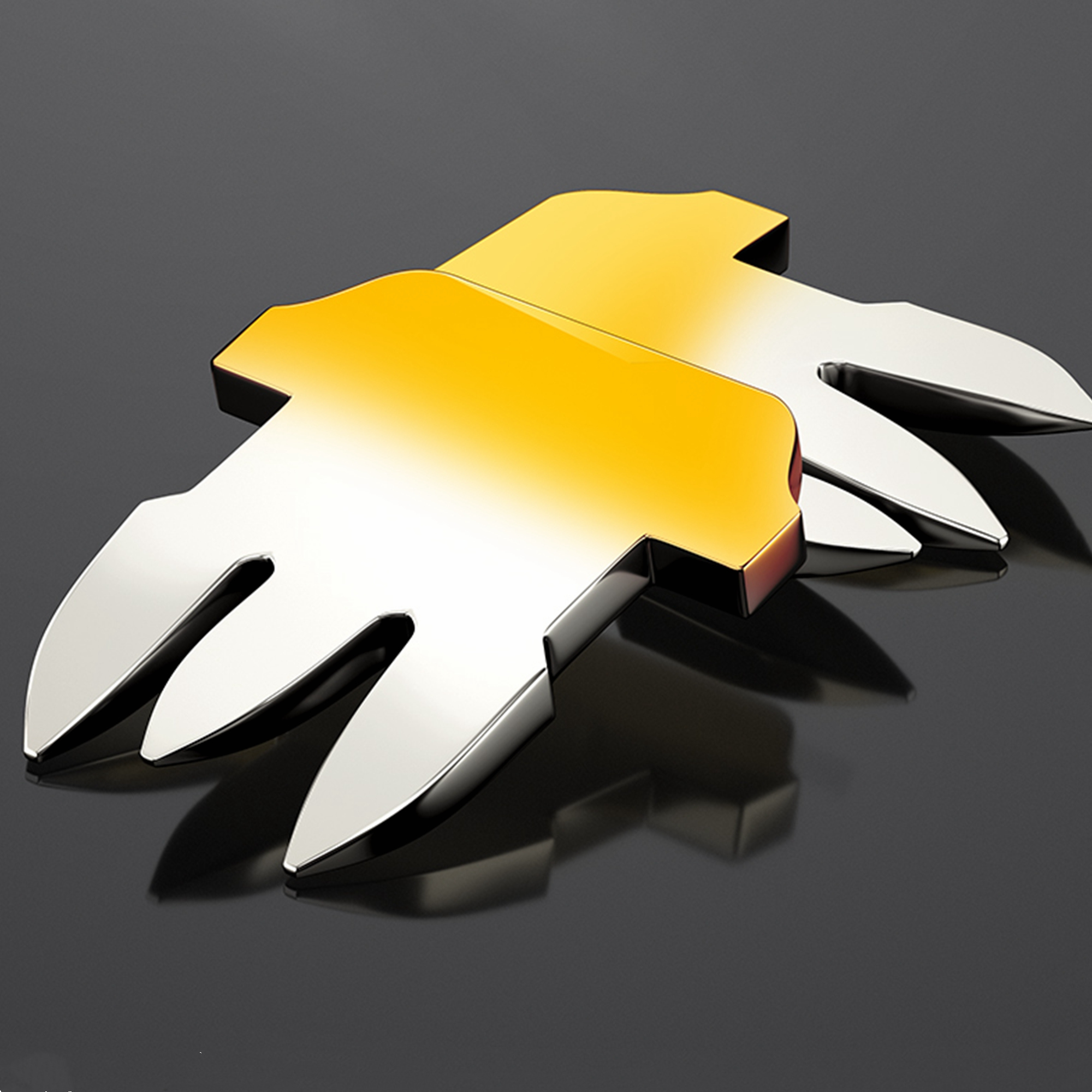

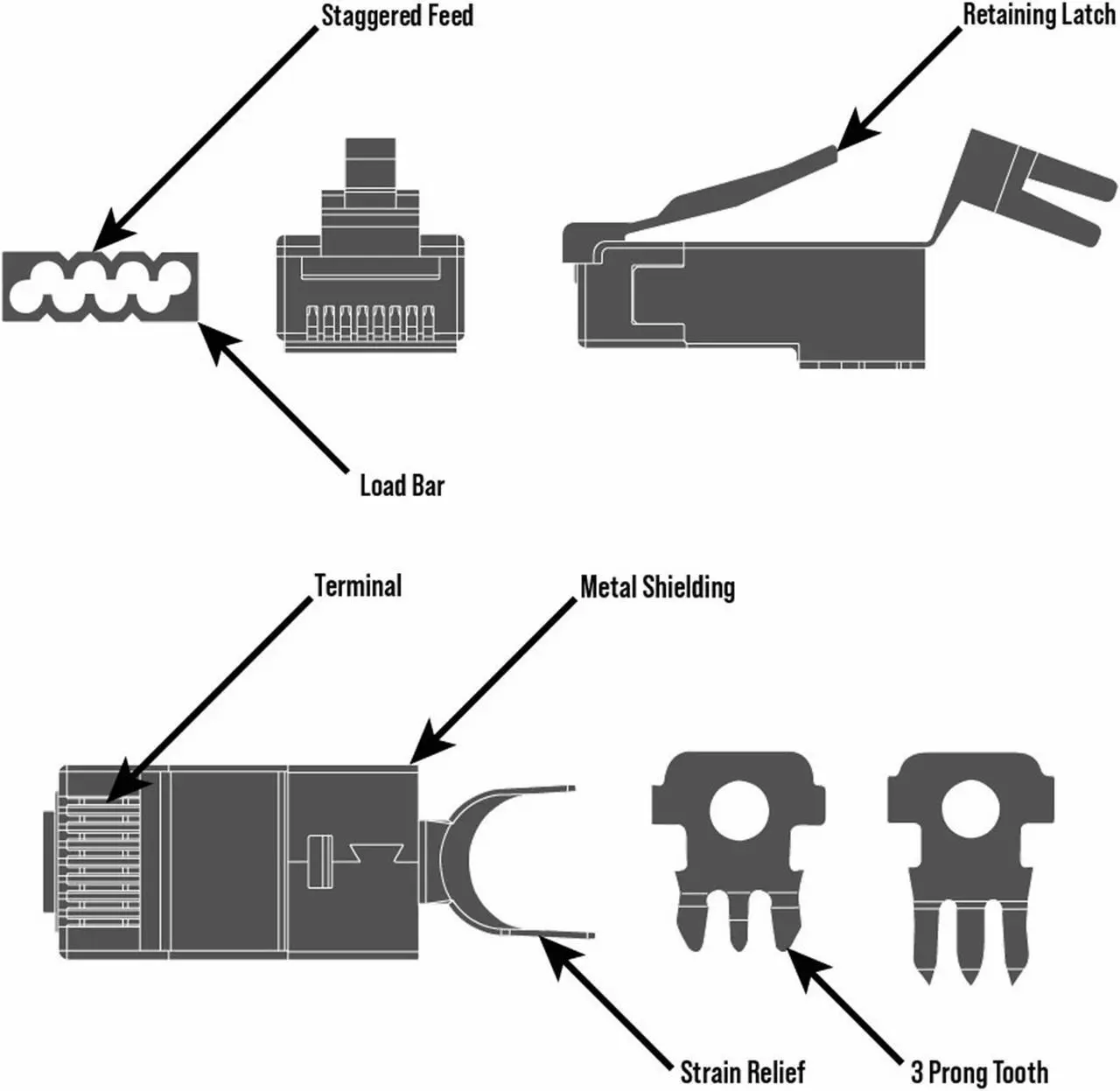

3-Prong Pins VS. 2-Prong Pins

The wrong type of pin structure (2-Prong Pin design) for today RJ45 applications are commonly used. Yankok only uses a 3-Prong Pin design that works best for both solid and stranded wire conductors. A 3-Prong Pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity.

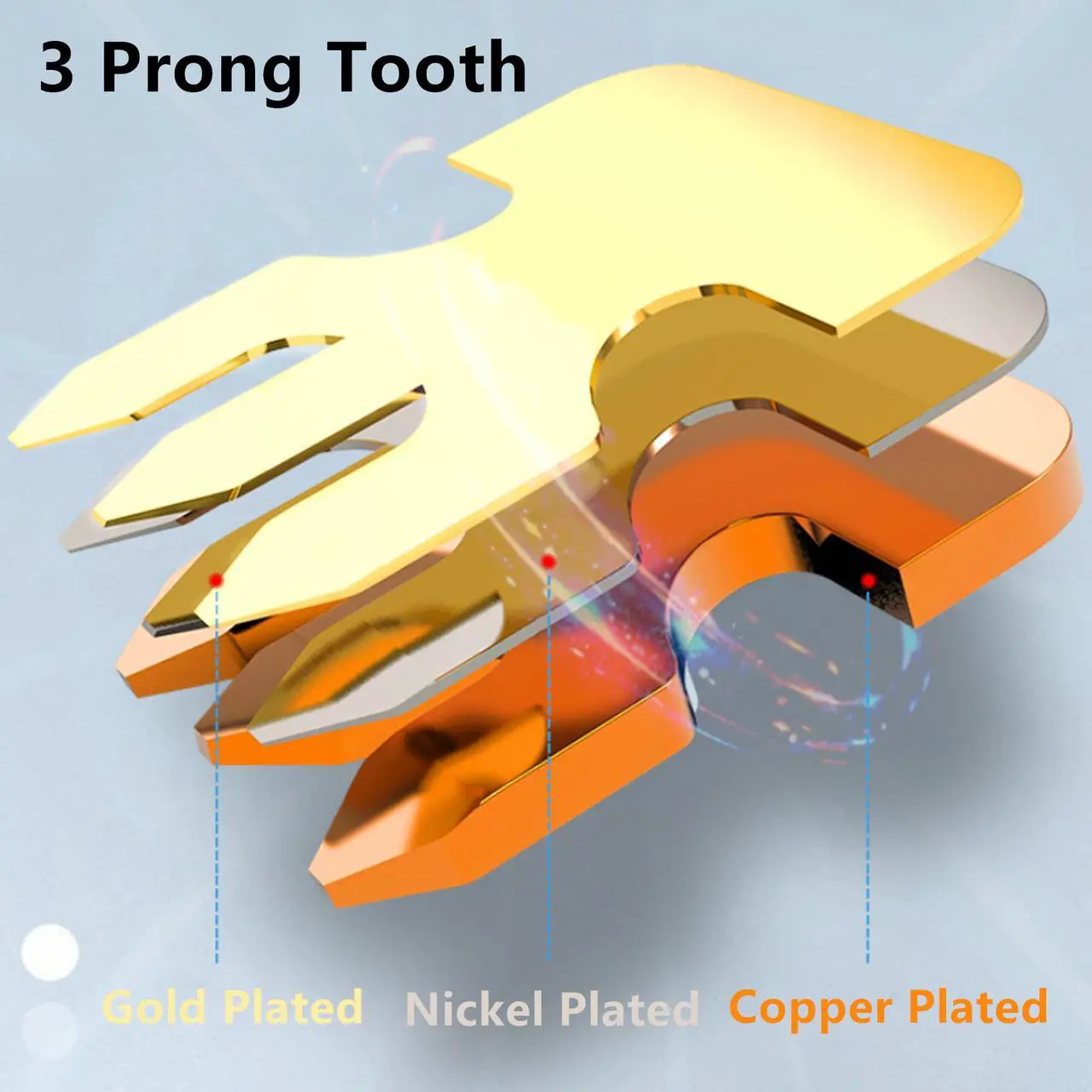

Nickel and Gold Plating Pins

The correct specifications for RJ45 require the use of 50µ micron thick 24ct gold plated over a phosphor bronze base metal coated with 100µ of nickel plating like ours. This significantly increases plug performance and has lower resistance. Why is this important? Phosphor bronze is an alloy that is very hard and has excellent electrically conductive properties.

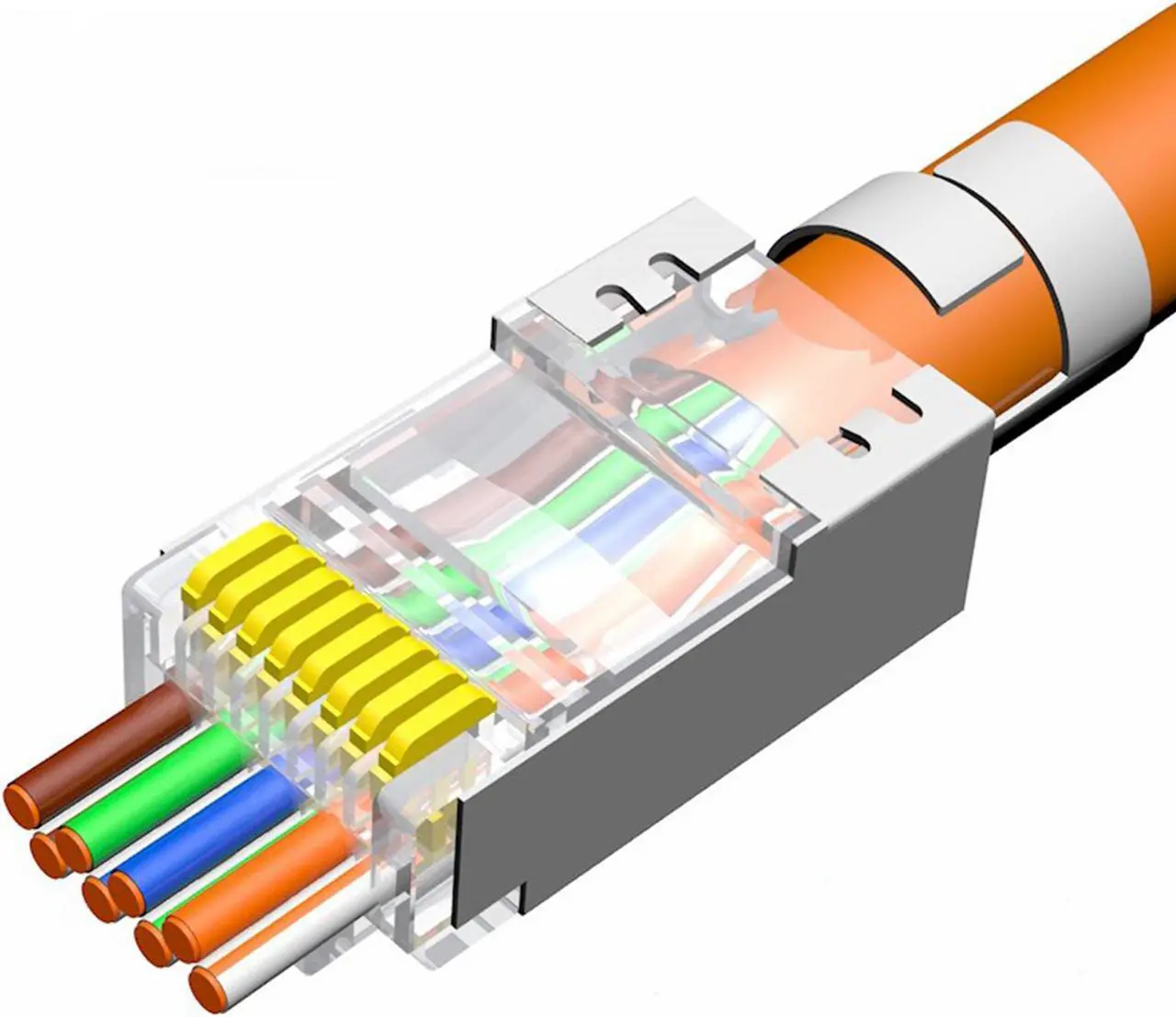

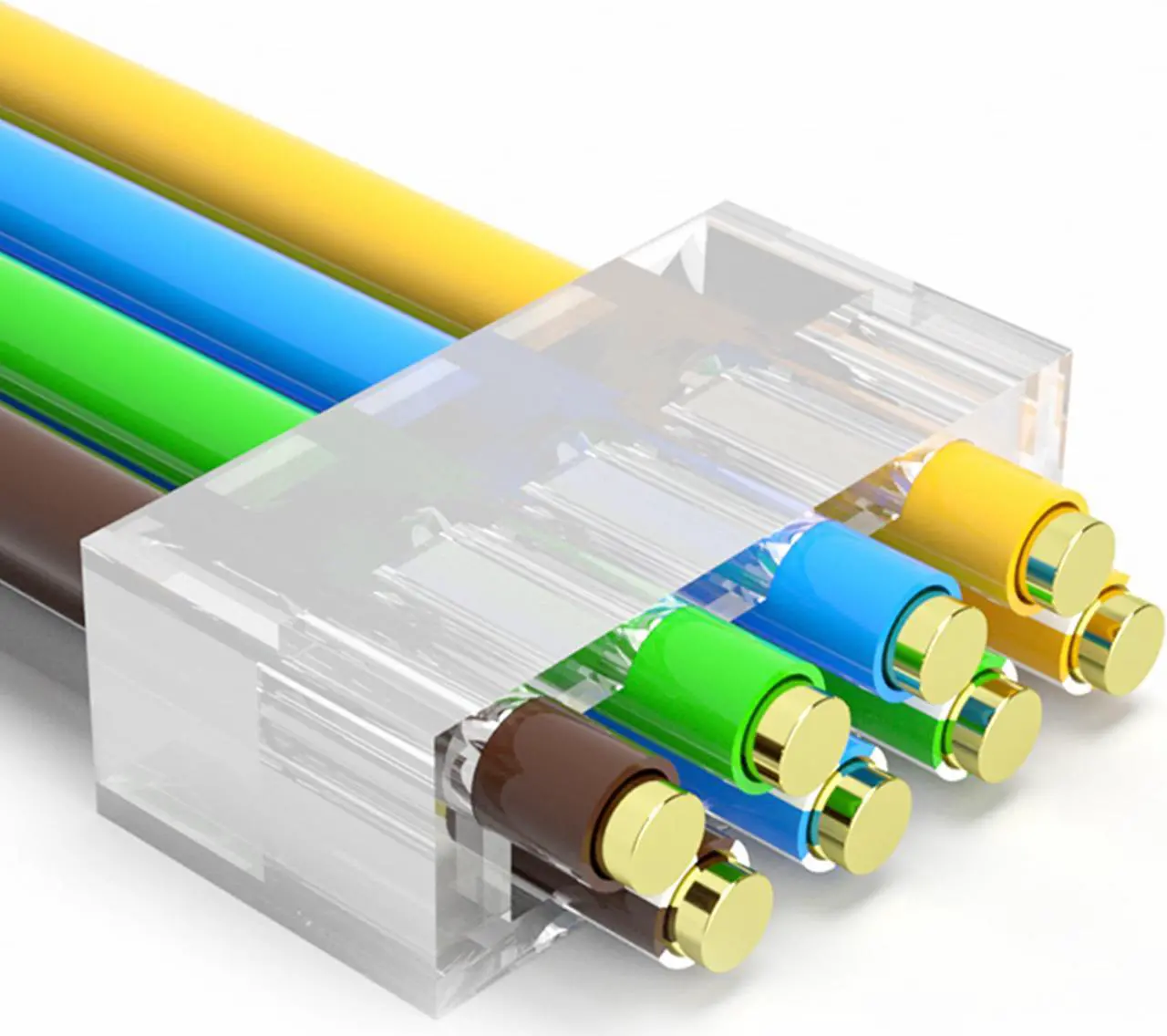

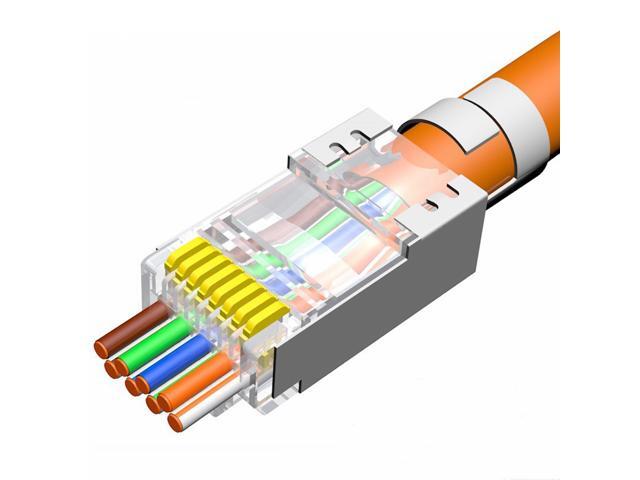

EZ Pass Through Connectors

The One-Piece modular plug with transparent body makes identifying the wire sequence easier and helps to reduce scrap and wasted crimps. Simplify network cable termination by allowing the wires to pass through the connector, that means you do not have to measure and cut the wires before termination, will help to build better connection and signal increasing.

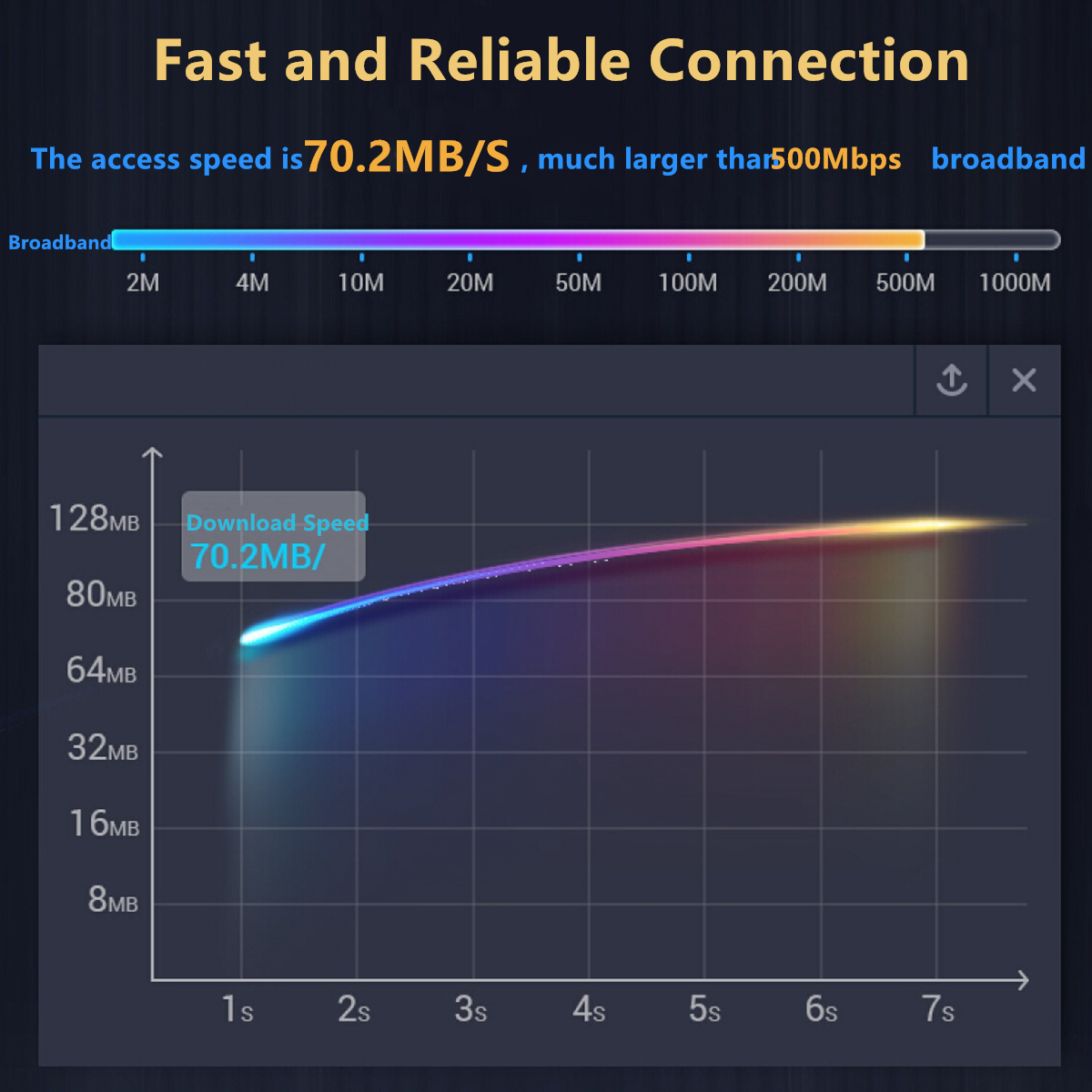

Fast and Reliable Connection

High speed Ethernet cables should be come with quality RJ45 connectors on each end - compared to the cat 6 network Ethernet Cable, The Yankok Pass Through RJ45 Modular Plugs provide the most innovative and ground-breaking improvements to RJ45 design and performance that can upgrade the signal quality.

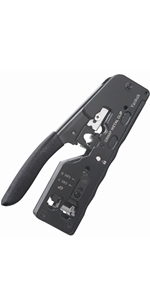

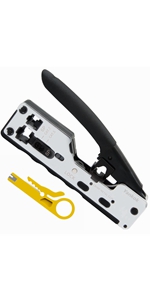

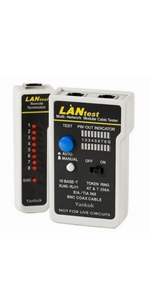

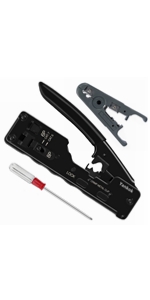

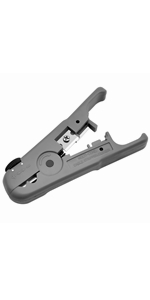

Products	Click for - Yankok RJ45 Pass Through Connectors (100 Pcs)	Click for - Yankok CAT5 CAT6 CAT7 Pass Through Crimper	Click for - Yankok CAT5 CAT6 CAT7 Shielded Crimper Kit	Click for - Yankok CAT5 CAT6 CAT7 Shielded Crimper	Click for - Yankok RJ45 RJ12 RJ11 to Coaxial Cable Tester	Click for - Yankok Universal Cable Stripper Cutter
Registered Jack	RJ45	RJ45 RJ12 RJ11	RJ45 RJ12 RJ11	RJ45 RJ12 RJ11	RJ45 RJ12 RJ11 & Coax	RJ45 RJ12 RJ11
Number of Pins	8P	8P 6P 4P	8P 6P 4P	8P 6P 4P	8P 6P 4P & RG59 RG11	8P 6P 4P
Category	CAT5/5e CAT6	CAT5/5e CAT6/6a CAT7	CAT5/5e CAT6/6a CAT7	CAT5/5e CAT6/6a CAT7	CAT5/5e CAT6/6a CAT7	CAT5/5e CAT6/6a CAT7
Function	Pass Through	Crimp Strip Cut and Clamp	Crimp Strip Cut and Clamp	Crimp and Clamp	Network Cable Test	Strip and Cut
Notes	100 Pcs Gold Plated	Crimps Standard and Shielded Pass Through Connectors	Crimps Standard and Shielded Connectors	Crimps Standard and Shielded Connectors	Battery use 6F22 9V 25MA (NOT INCLUDED)	Universal Cable Strip and Cut
