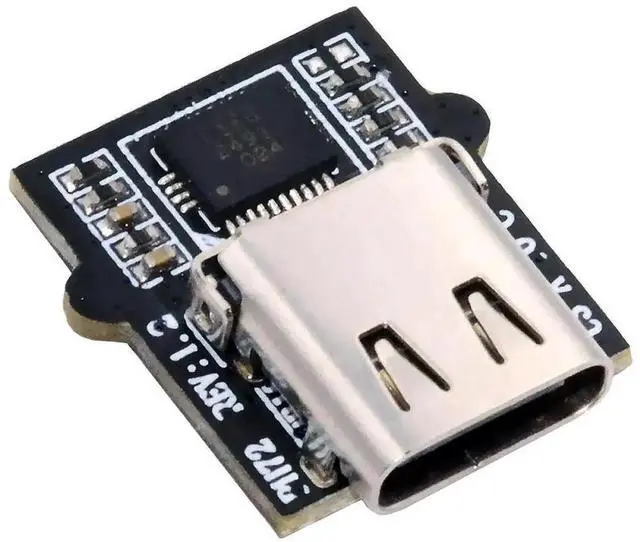

Aomoproing DIY OEM Type-C Female Socket Connector with VL160 Chipset Replace for USB3.0 Type-A Female DIP Type DC 5V Power
- DIY OEM Type-C Female Socket Connector with VL160 Chipset Replace for USB3.0 Type-A Female DIP Type DC 5V Power

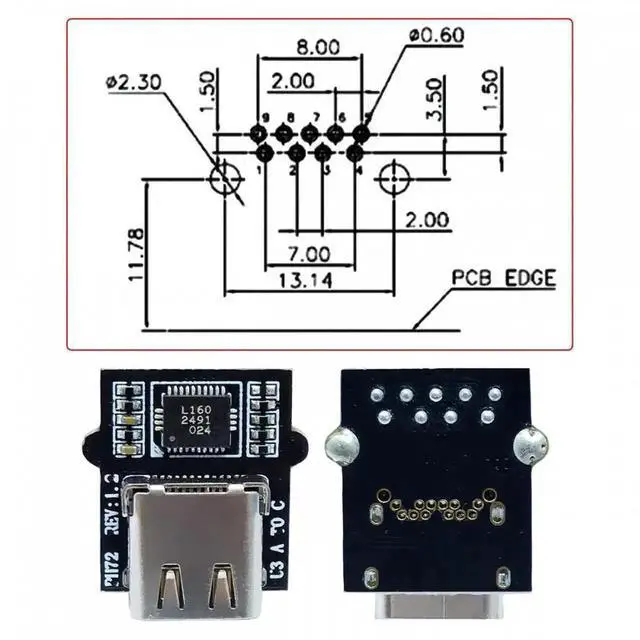

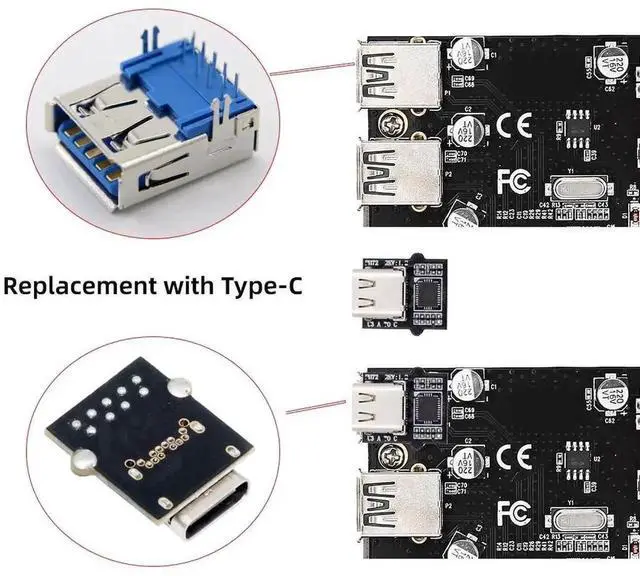

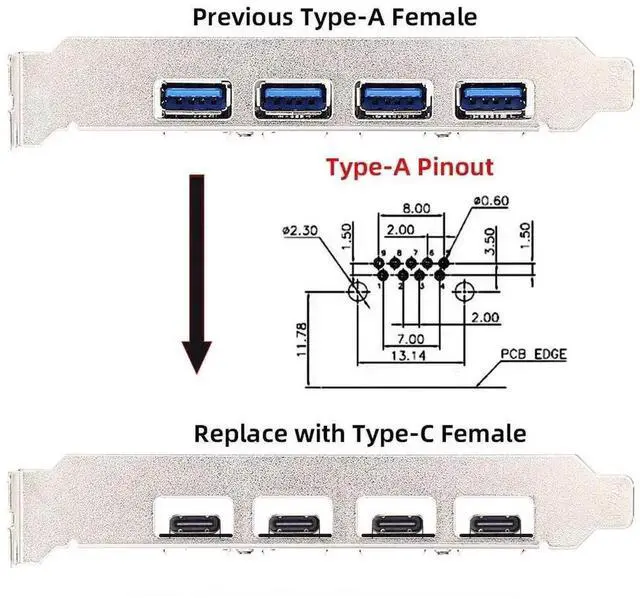

- The Type-C female connector is replaced forUSB3.0 Type-A DIP Female.For DIY OEM use. You need to solder the connector yourself.

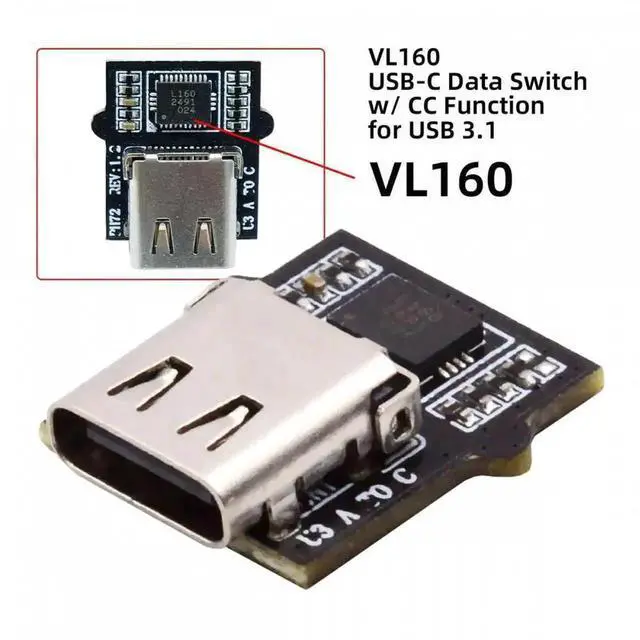

- Build-in VL160 chipset. VL160 is USB Type-C 2:4 differential channels mux switch and integrated CC logic function for USB 3.1 type-C application, for mux switch signal performance supports up to USB 3.1. VL160 integrated internal power switch support Vconn 5V supply and with over current protection.
- VL160
- CC Functional
- Define Role: Device (UFP, default) or Host (DFP),
- Plug Orientation Flipped or Not, and control Switch SEL.
- Fast power:Offers a throughput of up to DC 5V 3A when used with a Type-C USB2.0 power and device.

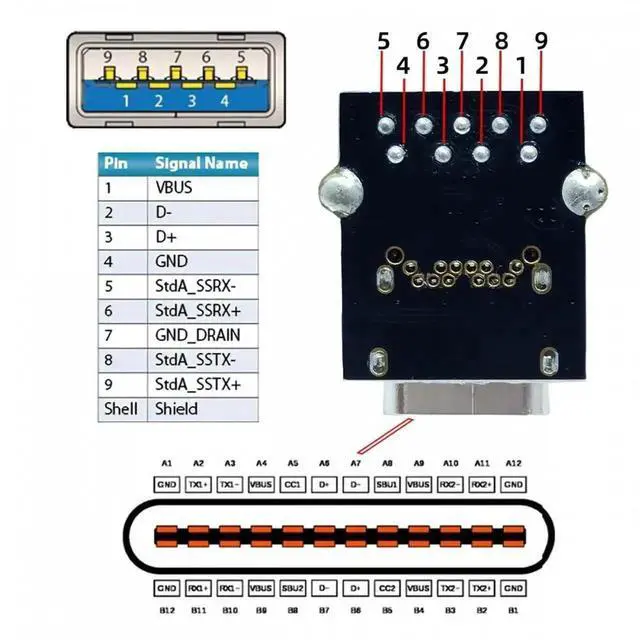

- 5Gbps Data transfer: Support 5Gbps data rating and 5V power. Compliant with USB Base Specification 3.1/3.0, Output USB3.0 Type-A interface and Type-C interface. Compliant with USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- DIY OEM Type-C Female Socket Connector with VL160 Chipset Replace for USB3.0 Type-A Female DIP Type DC 5V Power
- The Type-C female connector is replaced forUSB3.0 Type-A DIP Female.For DIY OEM use. You need to solder the connector yourself.
- Build-in VL160 chipset. VL160 is USB Type-C 2:4 differential channels mux switch and integrated CC logic function for USB 3.1 type-C application, for mux switch signal performance supports up to USB 3.1. VL160 integrated internal power switch support Vconn 5V supply and with over current protection.
- VL160
- CC Functional
- Define Role: Device (UFP, default) or Host (DFP),
- Plug Orientation Flipped or Not, and control Switch SEL.
- Fast power:Offers a throughput of up to DC 5V 3A when used with a Type-C USB2.0 power and device.
- 5Gbps Data transfer: Support 5Gbps data rating and 5V power. Compliant with USB Base Specification 3.1/3.0, Output USB3.0 Type-A interface and Type-C interface. Compliant with USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
