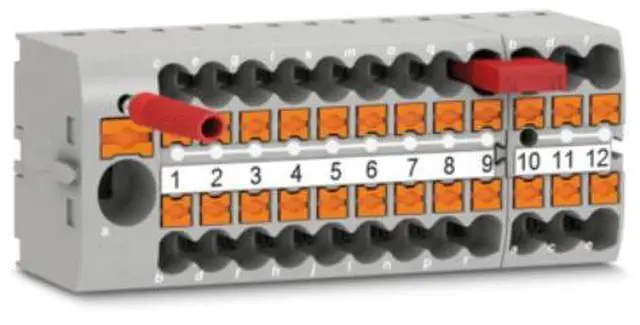

Phoenix PTFIX 6/6X2.5-NS35A BU-Connector Board
- Power strip, installed horizontally and integrated with potential distribution, nominal working voltage: 690 V, rated current: 24 A, connection quantity: 7, connection method: straight insertion connection, load contacts, cross-sectional area: 0.14 mm² - 4 mm², straight insertion connection, line contacts, rated wiring capacity: 6 mm², cross-sectional area: 0.5 mm² - 10 mm², installation method: NS 35/7.5, NS 35/15, color: blue
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Operating Instructions

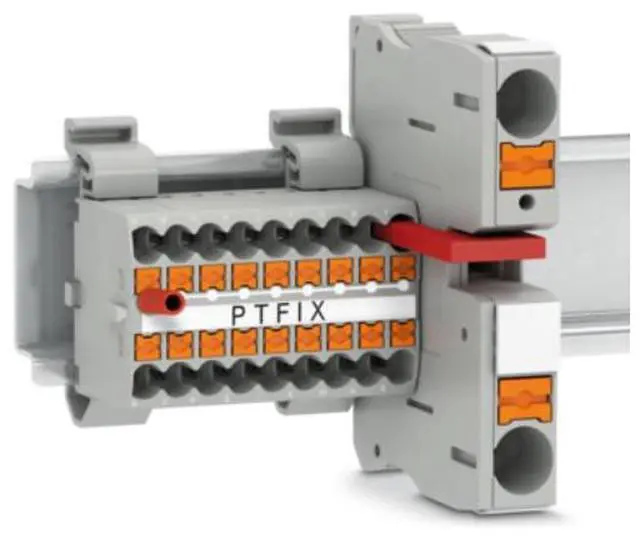

The terminal blocks can be interconnected using conductive shafts. For the corresponding plug-in connectors, please refer to the attachment. Overview
Notes for Attention
The current carried by each individual clamping device must not exceed its maximum load current.
Notes for Attention
Suitable for power distribution applications, IEC 60364-4-43.2008; October revision + errata. Must comply with the requirements of Chapter 433.2 ff of 2008 (DIN VDE 0100-430:2010-10)!
