Product Description

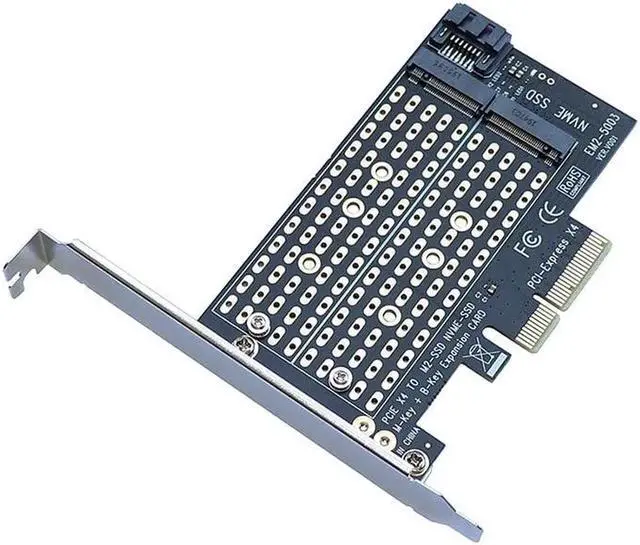

Product name: M. 2 NVME to PCI-E 3.0 X4 expansion card

Type: PCIE to M2 Adapter

Internal interface: M key + B key dual port

Support slot: PCI-E 3.0 X4 GEN3 (compatible with X4 X8 X16 slot)

Supported devices: PCI-E specification m. 2 NVMe and SATA specification m. 2 NGFF disk

Support system: WindowsXP/Vista/7/8/10, Linux, Mac OS.

feature

M key M. 2 NGFF SSD to PCI-E X4 adapter or B key M. 2 NGFF SSD to SATA adapter.

The speed and other properties are unchanged, only the interface type is changed without changing

software or drivers.

Bracket size: 22*30 mm, 22*42 mm, 22*60 mm, 22*80 mm M. 2 NGFF SSD.

Two metal plates (length: 8 cm, 12 cm)

Compatible with any operating system (provided the operating system must be compatible

use your hard drive).

About M. 2ngff SSD interface standard

Socket 2 (B key 2 channel): with SATA (such as THNSNH128G8NT/THNSNH128GDNT/MZNTD256HAGM

SSD models) and PCI-E 2X (such as PX-AG128M6E/PX-AG256E/PX-AG512M6E/SD6PP4M models

SSD) two different transfer modes.

Socket 3 (M key,

4 lanes): PCI-E 4X (eg MZH-PU128HCGM MZH-PU256HCGL and MZH-PU512HCGL models

(SSD) transfer mode.
