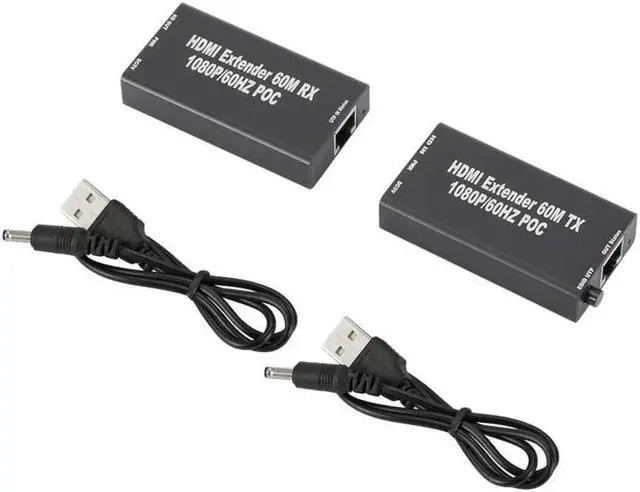

60M 1080p 3D HDMI-Compatible Extender Cat5e Cat 6 Ethernet Signal RJ45 Lan Converter HDMI-Compatible Transmitter Receiver TX RX(With USB power cable)

60M 1080p 3D HDMI-Compatible Extender Cat5e Cat 6 Ethernet Signal RJ45 Lan Converter HDMI-Compatible Transmitter Receiver TX RX

product description

The HDMI-compatible signal amplifier and extender uses two unshielded twisted pair connections to expand the high 1080P high-definition video up to a distance of up to 60 meters. Not only does it break through the limitation of the HDMI-compatible cable, but the Cat5/6 network cable is more convenient in the structure of the cable. With adaptability and lower cost, it is your best choice to expand HDMI-compatible signal.

Features

Support video input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Signal transmission: a cat5e or cat6 cable (recommended) instead of the HDMI-compatible cable, the cable between the receiver and the transmitter can be up to 60 meters long

Support video output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format: DTS-HD/Dolby-trueHD/LPCM 7.1 /DTS/Dolby-AC3/DSD

LED indicator light: When the power supply or extender is working, the related LED light will turn on

Using AWG26 specification cable, the signal transmission can reach 60 meters

easy installation

Delivery accessories list:

1. Host TX+Host RX

2. 5V voltage power adapter x2

3. A copy of the manual

Connection and operation:

Use an HDMI-compatible cable to connect the signal source to the transmitter of the extender

Use an HDMI-compatible cable to connect the signal end to the receiving end of the extender

Use a cat5e cable or cat6 cable (recommended) to replace the HDMI-compatible cable to connect the transmitter and receiver of the extender, and the maximum transmission length is 60 meters

Plug in the power supply to the transmitter and receiver
