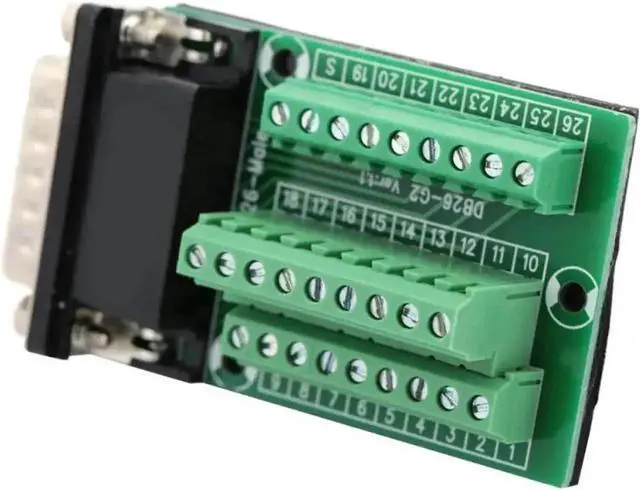

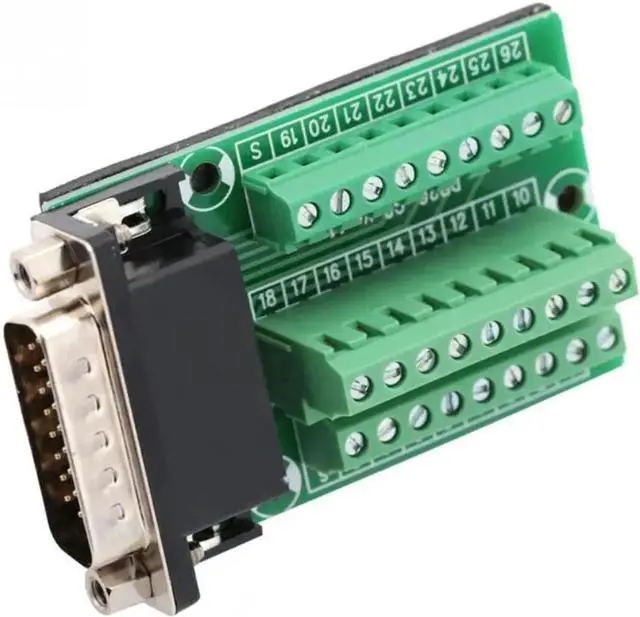

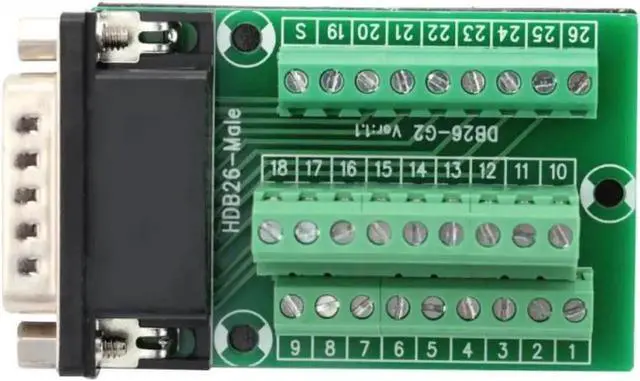

DB26 DB26-G2-01 Male Connector Breakout Board, DB26 Male to PCB Terminal Block Signal Module Adapter
- Standard DB26-G2-01 male interface, full 26-pin signal breakout to terminal blocks
- Screw-type terminal design for quick wiring, no soldering required
- Compact PCB layout with clear pin labeling for fast circuit debugging
- Stable signal transmission, suitable for industrial control and test equipment
- Mounting hole reserved for easy fixation on chassis and control cabinet
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This DB26-G2-01 male breakout board is a professional signal conversion adapter designed to convert DB26 male port signals into accessible screw terminal blocks. Each of the 26 pins is independently led out with clearly marked pin numbers on the PCB surface, allowing users to connect wires directly via screw terminals without complex soldering operations.
The board features a solid DB26-G2-01 male metal shell connector with reliable pin contact to avoid signal interruption during long-term operation. Pre-reserved mounting holes support secure installation on equipment cabinets, test benches and industrial control devices.
It delivers stable analog and digital signal transmission, widely applicable for industrial PLC connection, laboratory circuit testing, machine tool signal transmission, data acquisition modules and custom wiring projects. The rigid PCB material ensures strong anti-interference performance and long service life for commercial and industrial scenarios.
